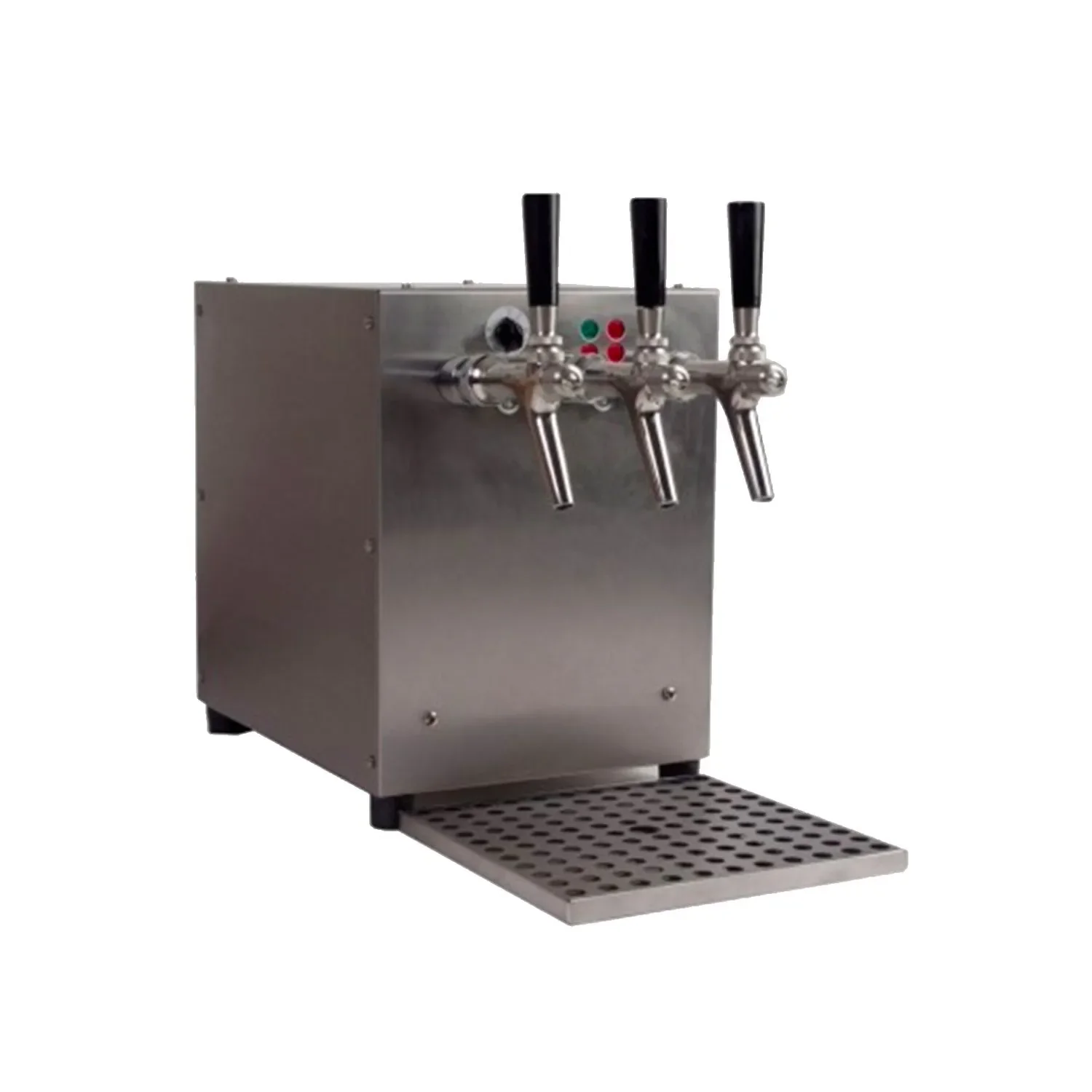

Mulled wine dispenser, beverage flow heater, 3-conductor with integrated air compressor, 9kW, stainless steel housing
| Item number | 452722 |
| Brand | Schankanlagen Koch & ambiente-gastro-online. GmbH |
There are no reviews yet — yours could be the first
Share your experience with this purchase and help other customers make the right choiceThere are no questions yet
Ask a question to learn more about the product
0.0
Beverage flow heater (mulled wine dispenser) 3 lines Power consumption: 9 KW/h (high voltage connection) with integrated air compressor for tapping from pressure-resistant containers (keg barrels)
Compact, powerful, reliable
Dimensions: width 25cm, depth 35cm, height 34cm
Discharge capacity 100 ltr./h at a temperature difference of 75°C between inlet and outlet temperature.
Temperature control from 7°C to 85°C possible. The device is equipped with a integrated low-noise electric air compressor. This compressor enables tapping from pressure-resistant containers. The filtered compressed air from the compressor is used to force the beverage out of the container.
Equipment:
3 Beverage hoses with screw fittings
3 heated taps
1 air line 3-fold, with screwed connections
1 drip tray
1 Operating instructions
1 Cleaning instructions
Dispensing capacity: 500 x 0,2 I/h
Beverage temperature: adjustable up to max: 85° C
Mains connection: 400V / 50 Hz
Power consumption: 13 A
Fuse: 3 x 16 A
Weight: 28 Kg.
