Double Socket Waste Pipe Bend DN 40/50, HTsafeDSW - Durable Drainage Solution

The installation of the pipe system is done through simple push-fit connections with sockets. Pipes must be pulled out one centimeter after joining to create length compensation.

Yes, the NBR seal in the HTsafeDSW Bogen is replaceable. This facilitates easy maintenance and extends the system's lifespan.

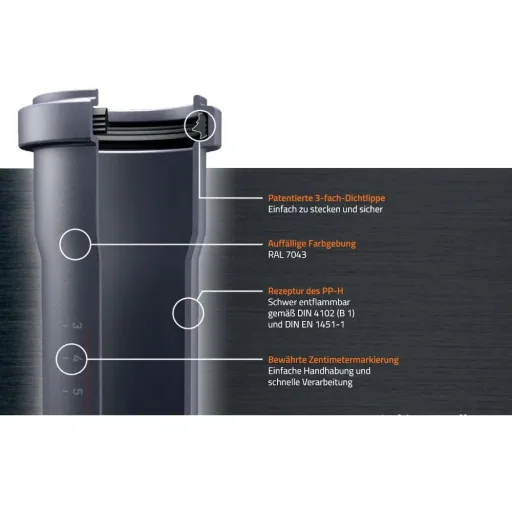

The HTsafeDSW bend features a patented triple sealing lip and is chemically resistant in the pH range 2-12. This ensures a secure seal even with common kitchen wastewater.

The HTsafeDSW elbow is made of polypropylene and is designed for temperature ranges from -20° to 90°C. The material is capable of withstanding hot water and is suitable for use with a washing machine.

The cable is designed for temperature ranges from -20°C to 90°C. It can therefore be installed in unheated basements or in frost-protected outdoor areas.

HT pipes can be cut with a metal or fine saw. It is important to chamfer the saw edges and remove internal burrs to protect seals and avoid deposits.

Yes, the double connection arc is explicitly suitable for use in central vacuum systems. Its abrasion resistance and smooth surface are advantageous for this.

Yes, a minimum slope of 2 cm per meter is required. This prevents wastewater from stagnating or solid particles from accumulating, which could lead to blockages.

The polypropylene material of the HTsafeDSW shows robust behavior under mechanical stress, such as during high-pressure washing. This contributes to its longevity.

Yes, the bend is approved for drainage inside buildings as a wastewater pipe, rainwater pipe, and ventilation pipe. It complies with DIN EN 1451-1.

Yes, the HTsafeDSW is flame-retardant (B1) and approved for use with the most common fire protection sleeves from various reputable manufacturers.

The HTsafeDSW features optimal noise behavior and very good sound insulation. This minimizes the transmission of water flow noises.

Yes, connecting to a self-cut HT pipe is possible. It is important to chamfer the cut edges and remove internal burrs so that the seals are not damaged and a proper connection is created.

The bow is approved for use with our extraction safety devices up to a maximum pressure of 2.0 bar. Without these safety devices, the system is primarily designed for pressureless drainage within buildings.
