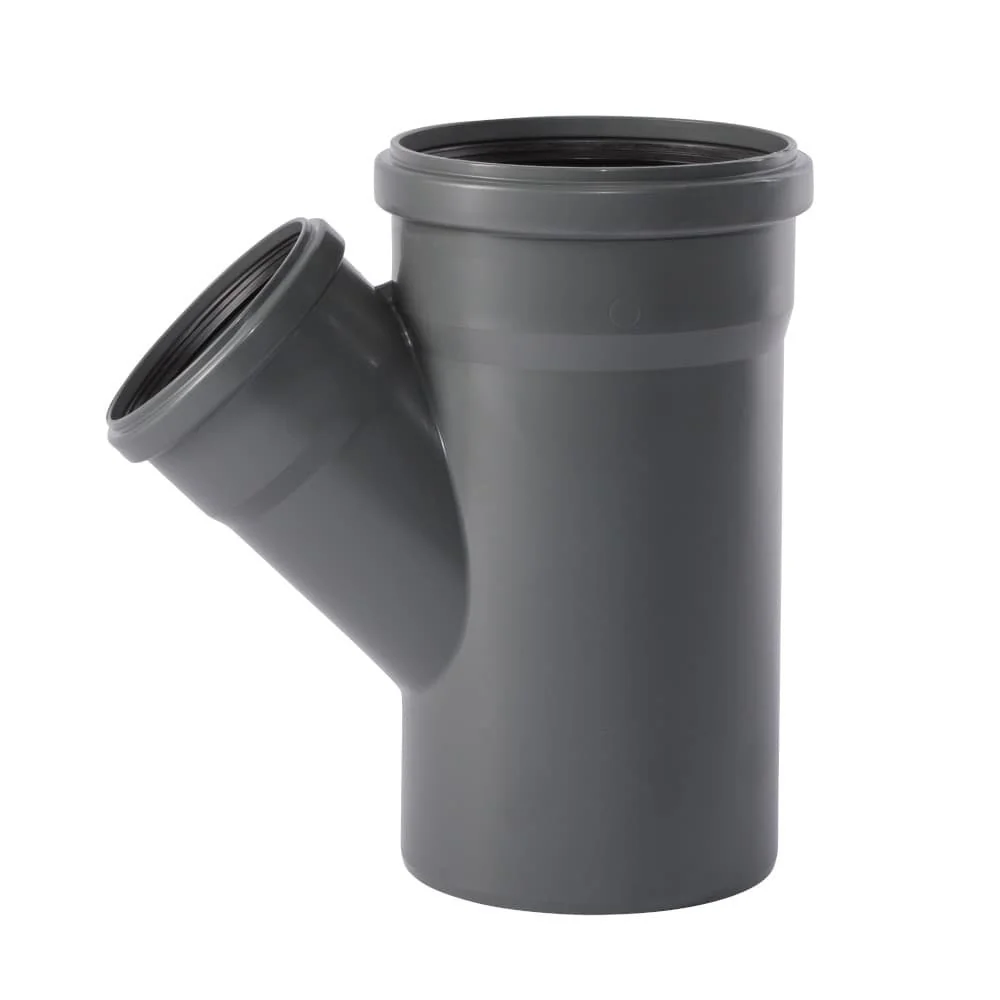

HT Pipe Branch DN 160/110, 45 Degree, Drain Pipe Fitting

The HT Pipe Branch for Your House Drainage System

Looking for a reliable and durable branch for your HT pipe system? Our HT Pipe Branch DN 160/110 with a 45-degree angle is the ideal solution for drainage inside buildings. It offers quick processing, secure sealing, and optimal noise behavior. With easy push-fit connections, you can quickly assemble, install, and lay your pipe system. Here's what you'll find in this guide:

Key Specifications

Our HT Pipe Branch provides a reliable solution for your house drainage. With dimensions DN 160/110 and a 45-degree angle, it fits perfectly into common pipe systems. The patented 3-way sealing lip ensures a secure and permanent seal, meaning less installation effort and long-term protection against water damage for you.

Technical Specifications

Product Features and Benefits

• Quick Processing: The simple push-fit connections save you time and effort during installation.

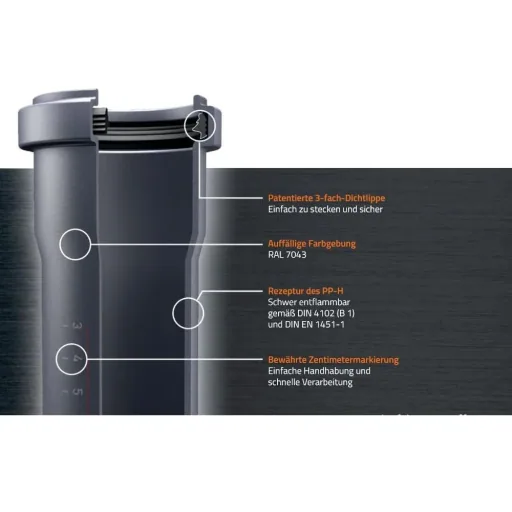

• Secure Sealing: The patented 3-way sealing lip ensures a permanently tight connection, so you don't have to worry about leaks.
• Optimal Noise Behavior: The high-quality material reduces noise emissions, so you can enjoy a quiet environment.
• Long Durability: Thanks to manufacturing according to DIN EN 1451-1 and the use of robust polypropylene, the branch is extremely durable.
• Easy Installation: The pipe system is easy to install and lay thanks to push-fit connections, saving you time and money.
• Replaceable NBR Seal: The seal can be replaced if necessary, which further extends the life of the branch.
• Very Good Sound Insulation: The branch offers excellent sound insulation, which is particularly advantageous in residential buildings.
• Flame-retardant B1: The branch is flame-retardant, which increases the safety in your building.

Advantages of Our Product

• Perfect Value for Money: You get a high-quality product at a fair price.
• Made in Germany: Quality and reliability through German manufacturing.
• Patented 3-way Sealing Lip: Guarantees a secure and permanent seal.
• High Chemical Resistance: Stable against acids and alkalis (pH 2-pH 12).
• High Abrasion Resistance: Durability and operational reliability thanks to robust polypropylene.
• Excellent Impact Resistance: Robust behavior under mechanical stress.
• Approved with Pull-Out Safety Devices: Up to a maximum pressure of 2.0 bar.

How to Use (Step-by-Step)

1. Step 1: Cut pipes and fittings: Use a metal saw or fine saw to cut the HT pipes to the required length.
2. Step 2: Deburr and Chamfer: Remove any burrs inside the pipe to avoid damaging the seals. Chamfer the sawn edges to ensure a proper connection.
3. Step 3: Prepare push-fit connection: Clean the pipe ends and the sleeves of the fittings.
4. Step 4: Connect pipes: Insert the pipes with the sleeves into the chamfered pipe end (spigot side).
5. Step 5: Create length compensation: After completely joining, pull the pipe out about one centimeter to create effective length compensation.
6. Step 6: Lay the pipe system: Make sure that the wastewater does not accumulate and that no solid parts can collect. A minimum slope of 2 cm per meter is required.
