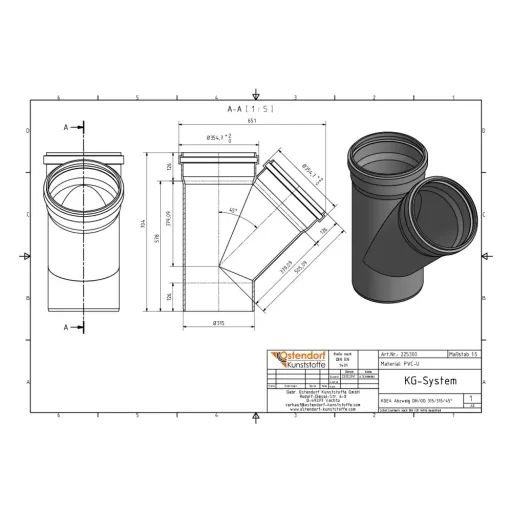

DN/OD 315/315 45 Degree Pipe Branch - Drain and Sewer System

DN/OD 315/315 45 Degree Pipe Branch

Product Features and Benefits

• The PVC system meets your needs for water resistance, durability, and ease of use.
• You directly ensure environmental protection against wastewater contamination.
• Our pipes are manufactured according to DIN EN 13476-2, and the fittings according to DIN EN 1401-1.
• The pipes have high strength, long-term stability, and yet an elastic behavior.
• The result is drain pipes and fittings with a smooth inner wall that is resistant to scaling.
• They have an elastic core that withstands both ground pressure and traffic loads.
• The tightness of the connections is ensured by sealing elements made of resistant elastomers.
• They are installed in the groove.
• The system has a ring stiffness class SN 4, which guarantees a high level of safety.
• Due to the low weight, easy handling is ensured, even for pipes with a length of 5 m.
• The pipe connection is easily constructed using the socket with sealing element: quick installation and easy laying.
• Drain pipes made of polyvinyl chloride (plasticizer-free, PVC-U) according to DIN EN 13476-2.

Advantages of Our Product

Application

1. Step 1: Preparation – Ensure all necessary tools and materials are ready (drain pipe, sewer branch, lubricant).
2. Step 2: Cutting – If necessary, cut the drain pipe to the appropriate length. Use a pipe saw for a clean cut.
3. Step 3: Chamfering – Deburr and chamfer the pipe end to facilitate insertion into the branch.
4. Step 4: Lubrication – Apply lubricant to the pipe end and the branch seal.
5. Step 5: Connection – Insert the pipe into the branch until it is fully seated in the socket. Ensure a firm fit.
6. Step 6: Alignment – Align the branch at the desired angle.

Technical Data
