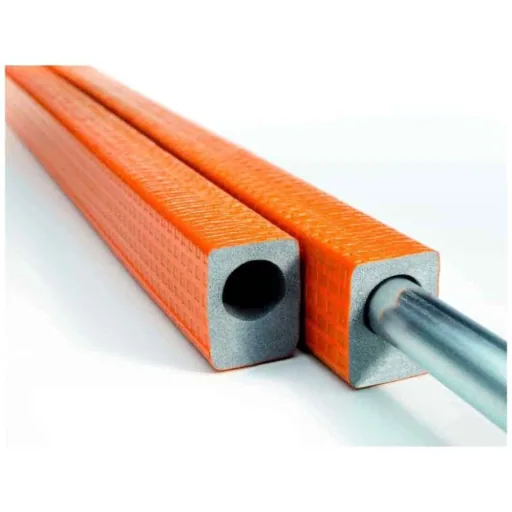

Pipe insulation, 22mm pipe insulation, compact 2m Ø 22 mm 9 mm pipe lagging

The EXZENTROFLEX® insulation is specially designed for pipes with an outer diameter of 22 mm. For 18 mm pipes it would be too big and would not fit optimally.

Yes, the eccentric design allows for an even lower construction height and tighter pipe routing. This is particularly advantageous if the 22mm steel pipes are close together or near the wall and there is little space.

The EXZENTROFLEX® insulation is specially designed for the insulation of radiator connection pipes in the floor area according to EnEV. It is not primarily intended for other heating pipes, as the application specification is narrowly defined.

The temperature range of the EXZENTROFLEX® insulation is between 0°C and +100°C. At permanent temperatures above 90°C, the thermal conductivity may deviate and the service life may be impaired.

Yes, the insulation is made of closed-cell polyethylene foam and is provided with a co-extruded PE film. This material combination offers good protection against moisture in the screed area.

The insulation meets fire class B2 according to DIN 4102 or Euroclass E according to EN 13501-1. This classification is common and sufficient for installation in normal residential buildings.

Yes, the eccentric shape of the EXZENTROFLEX® insulation is specially designed to allow a low construction height and tight pipe routing. This is ideal for installations directly on walls or in confined floor areas.

The temperature range of the insulation is between 0°C and +100°C. At temperatures that briefly exceed this range, the insulation performance and material integrity can no longer be fully guaranteed.

The temperature range of the insulation is between 0°C and +100°C. EXZENTROFLEX® is not designed for areas permanently at risk of frost, as the surface temperature should not fall below 0°C.

The insulation is primarily intended for radiator connection pipes in the floor area according to EnEV. It can also be used for other heating pipes if the pipe diameter is suitable (Ø 22 mm) and the temperature range is suitable.

The eccentric design of the insulation allows for an even lower construction height and tighter pipe routing. This is ideal if the available space under the screed is very limited.

The insulation is specially designed for radiator connection pipes in the floor area. Its temperature range starts at 0°C, which makes it not optimal for cold water pipes, as temperatures below 0°C can also occur here, which could lead to frost damage.

No, laying under a wooden floor has no negative effects on the insulation performance of the EXZENTROFLEX®. The material and insulation thickness remain effective under different floor coverings.

Yes, the eccentric shape of the EXZENTROFLEX® insulation is designed exactly for this. It enables insulation with a low construction height and very close pipe routing in the floor area, as is often the case in old buildings.

Each EXZENTROFLEX® package contains two 1m rods, so a total of 2 meters of insulation material. For 10 meters of pipe, you therefore need 5 packages (roughly calculated: 10m pipe / 2m per package = 5 packages).

The EXZENTROFLEX® insulation is classified according to Euroclass E (EN 13501-1) / DIN 4102 B2. This means it is normally flammable. For critical areas with a high fire hazard, you may need to check additional fire protection measures.

Yes, the closed-cell polyethylene foam of the EXZENTROFLEX® insulation is moisture resistant. This helps prevent condensation on the pipes.

The insulation corresponds to Euroclass E (EN 13501-1) or DIN 4102 B2. This classification is sufficient and permissible for installation in normal living spaces and heating systems in the floor area.

For 15 meters of pipe, you need 15 of the 1-meter pieces. Since each 2-meter rod is delivered cut into 2x 1-meter pieces, you would need 8 rods to cover the 15 meters. (Roughly calculated: 15 meters / 2 meters per rod = 7.5 rods, rounded up to 8).

The insulation is specially designed for radiator connection pipes in floor areas and in accordance with EnEV. It is suitable for pipes with an outer diameter of 22 mm that are connected to underfloor heating.

Yes, the insulation is specially designed for the insulation of radiator connection lines in the floor area according to EnEV. The 9 mm insulation thickness is sufficient for many applications.

NMC Naturefoam is made of at least 50% renewable raw materials, which contributes to environmental compatibility. There are no negative effects on the indoor air quality in the floor area.

The EXZENTROFLEX® insulation is designed for radiator connection pipes in the floor area and has a temperature range of 0°C to +100°C. For pipes in a permanently unheated garage that could fall below freezing, the material is not primarily intended as frost protection.

Yes, the material is a closed-cell polyethylene foam with co-extruded PE film. This protects the insulation from moisture in the screed and ensures permanent insulation performance.

Yes, the insulation is designed for pipes with an outer diameter of 22 mm. This applies to both copper (CU) and steel pipes (FE).

The EXZENTROFLEX® insulation is primarily designed for radiator connection pipes in the floor area according to EnEV. However, the temperature range from 0°C to +100°C also allows use with cold water pipes to reduce condensation.

The 9 mm insulation thickness offers effective insulation for heating pipes in the floor area. Professionally installed insulation with EXZENTROFLEX® contributes significantly to energy savings.

Each pack contains a 2-meter rod (delivered as 2x 1m). For 15 meters of pipe, you'll need 8 packs of EXZENTROFLEX® insulation to cover the entire length (roughly calculated: 16 meters of insulation).
