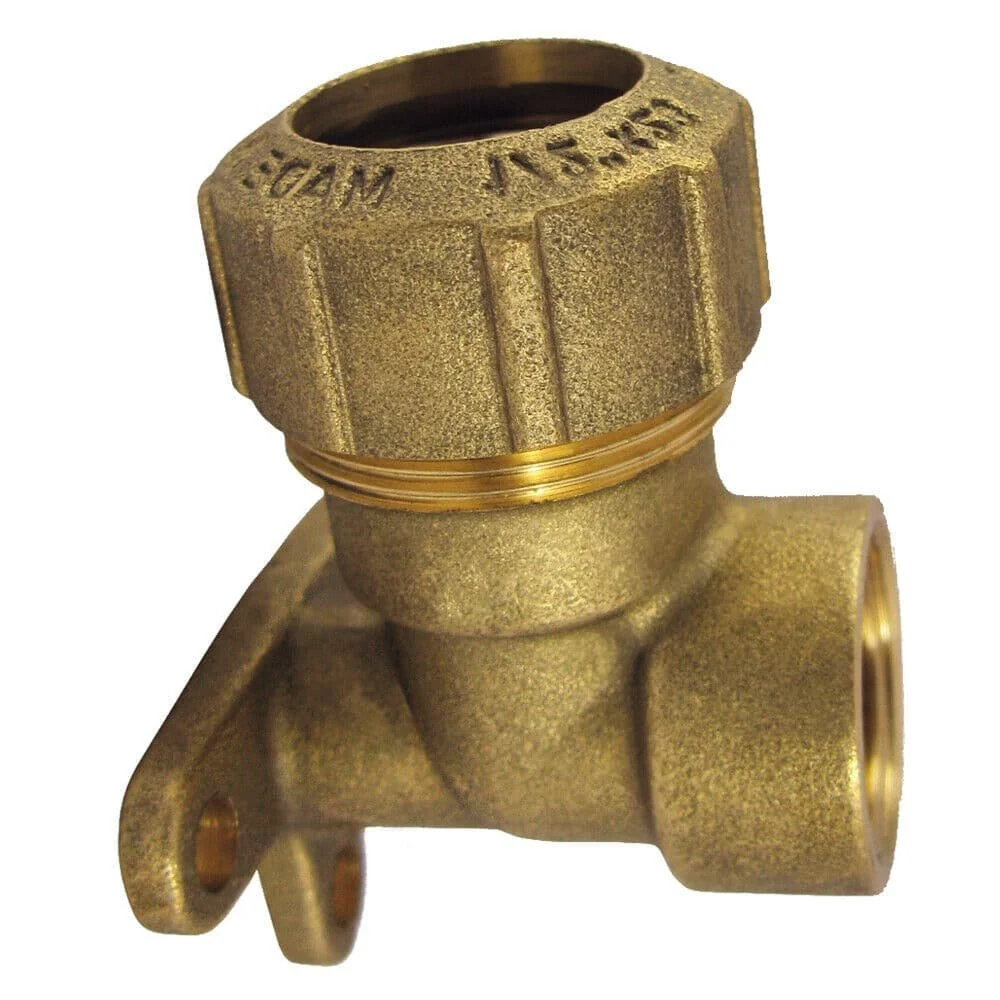

Brass PE Pipe Fitting 90° Wall Mount 20mm x 1/2"
Diameter
: 20 mm
Geometry
: Wall Mount
About this item:
- High-quality brass – robust and durable
- Dimensions: 20mm x 1/2" IG, 90° angle – space-saving
- With wall bracket – secure wall mounting
- Suitable for drinking water and gas – tested quality
- Easy installation – ideal PE pipe connection
Guaranteed Secure Checkout
| Item number | BONI-34541 |
| Brand | Boni-Shop® |
4.8
No images or videos found in reviews
Steffi Viertel
BONI-34521
Diameter
:
20 mm
Geometry
:
Female Thread
This brass elbow fitting works well for redirecting PE pipes. The connection feels solid and secure once installed. It's handy for tight spaces where you need to change the pipe direction.
BONI-34521
Diameter
:
20 mm
Geometry
:
Female Thread
Christian Anton
BONI-34523
Diameter
:
32 mm
Geometry
:
Female Thread
This brass fitting works well for connecting PE pipes in tight spaces. The 90-degree angle makes it easy to navigate corners, and the female thread ensures a secure connection. It feels solid and reliable for both water and gas applications.
BONI-34523
Diameter
:
32 mm
Geometry
:
Female Thread
Jakob Juessen
BONI-34524
Diameter
:
40 mm
Geometry
:
Female Thread
The brass elbows are of good quality, I would recommend them if needed!
BONI-34524
Diameter
:
40 mm
Geometry
:
Female Thread
Gotthard Schube
BONI-34543
Diameter
:
32 mm
Geometry
:
Wall Mount
This brass fitting feels solid and well-made, ideal for handling both water and gas connections. The 90° wall mount design helps keep things neat and organized, especially in tight spaces. Installation was straightforward, and the connection seems reliable...
BONI-34543
Diameter
:
32 mm
Geometry
:
Wall Mount
Thomas Klein
BONI-34522
Diameter
:
25 mm
Geometry
:
Female Thread
Works well, though a longer thread would have been better for my specific installation.
BONI-34522
Diameter
:
25 mm
Geometry
:
Female Thread
Mohamed Jasem
BONI-34572
Diameter
:
25 mm
Geometry
:
Compression (no thread)
The brass elbows are of good quality and work well for my needs. I would recommend them!
BONI-34572
Diameter
:
25 mm
Geometry
:
Compression (no thread)
Garnet Voltmer
BONI-34521
Diameter
:
20 mm
Geometry
:
Female Thread
This brass elbow fitting does exactly what it's supposed to do. The connection feels solid and secure when installed. I appreciate that it works with standard PE pipes and threaded parts without any fuss. It's holding up well so far in my water line setup.
BONI-34521
Diameter
:
20 mm
Geometry
:
Female Thread
Johannes Wessel
BONI-34521
Diameter
:
20 mm
Geometry
:
Female Thread
This brass elbow fitting made connecting my PE pipe system much simpler. The 90° design fits perfectly in tight spaces, and the compression fitting ensured a secure connection without any leaks. It feels solid and well-made, and I appreciate its versatilit...
BONI-34521
Diameter
:
20 mm
Geometry
:
Female Thread
Jörg Herrle
BONI-34521
Diameter
:
20 mm
Geometry
:
Female Thread
This brass elbow fitting works well for connecting PE pipes to threaded components. The 90° design makes it practical for changing directions in tight spaces, and it feels sturdy and reliable. Installation was straightforward, and it seems like it will han...
BONI-34521
Diameter
:
20 mm
Geometry
:
Female Thread
Brigitte Boerck
BONI-34523
Diameter
:
32 mm
Geometry
:
Female Thread
This brass elbow fitting works well for my irrigation setup. The 90-degree angle helps navigate tight spaces, and the female thread connects securely without leaks. It feels solid and handles water pressure just fine.
BONI-34523
Diameter
:
32 mm
Geometry
:
Female Thread
Michael Holthau
BONI-34523
Diameter
:
32 mm
Geometry
:
Female Thread
This fitting made connecting my PE pipes straightforward and hassle-free. The brass construction feels solid, and the 90° angle really helps in tight spaces. It’s reassuring to know it’s approved for drinking water use, ensuring safety. Installation was qu...
BONI-34523
Diameter
:
32 mm
Geometry
:
Female Thread
Hans-Jürgen Dro
BONI-34523
Diameter
:
32 mm
Geometry
:
Female Thread
This brass fitting works well for connecting PE pipes at a 90-degree angle. The female thread makes installation straightforward, and the brass construction feels solid. It's nice to know it's approved for drinking water use.
BONI-34523
Diameter
:
32 mm
Geometry
:
Female Thread
Waltraud Harten
BONI-34543
Diameter
:
32 mm
Geometry
:
Wall Mount
This brass fitting works well for connecting PE pipes securely. The wall mount design keeps things tidy, and the threaded connection feels solid. It's been reliable for my water lines so far.
BONI-34543
Diameter
:
32 mm
Geometry
:
Wall Mount
Andrea Kuttenke
BONI-34543
Diameter
:
32 mm
Geometry
:
Wall Mount
This brass fitting is sturdy and reliable for connecting PE pipes. The 90° wall mount makes installation neat and space-saving. It’s great for both water and gas systems, and the clamp connection is straightforward to use. A solid choice for plumbing proje...
BONI-34543
Diameter
:
32 mm
Geometry
:
Wall Mount
Mario Brandies
BONI-34543
Diameter
:
32 mm
Geometry
:
Wall Mount
This brass fitting does exactly what it's supposed to do. The 90° angle makes it practical for tight spaces, and the connection feels solid when installed. Works well for my water line project.
BONI-34543
Diameter
:
32 mm
Geometry
:
Wall Mount
4.8
15 reviews
Reviews (15)
Steffi Viertel
This brass elbow fitting works well for redirecting PE pipes. The connection feels solid and secure once installed. It's handy for tight spaces where you need to change the pipe direction.
Questions (200)
Secure Your Pipes with Our 90° Brass PE Pipe Fitting
Are you looking for a reliable and durable solution for connecting your PE pipes to a wall? Our 90° Brass PE Pipe Fitting provides a secure and leak-proof connection for your plumbing needs. This wall mount fitting is designed for both residential and commercial applications, ensuring long-lasting performance and peace of mind. Whether you're working on a new installation or a repair project, this fitting offers easy installation and exceptional durability.
Key Specifications
This 90° wall mount pipe fitting is crafted from high-quality brass (MS58) for exceptional durability and corrosion resistance. Designed for connecting 20mm PE pipes to a 1/2" female thread, it ensures a secure and leak-proof connection. With a maximum operating pressure of 16 bar and a temperature range from -20°C to +120°C, it's suitable for various applications, including potable water and gas (with additional support sleeve). This fitting provides a reliable solution for both above-ground and below-ground installations.
Technical Specifications
| Fitting Type | 90° Wall Mount |
| Material | Brass (MS58) |
| PE Pipe Size | 20mm |
| Thread Size | 1/2" Female |
| Max. Operating Pressure | 16 bar (Liquid Medium) |
| Operating Temperature | -20°C to +120°C |
| Suitable Media | Potable Water (DIN DVGW Approved), Gas (with support sleeve), Wastewater, Other Liquid Media |
Product Features and Benefits
- Durable Brass Construction: Made from high-quality MS58 brass, this fitting provides exceptional resistance to corrosion and wear, ensuring a long service life.

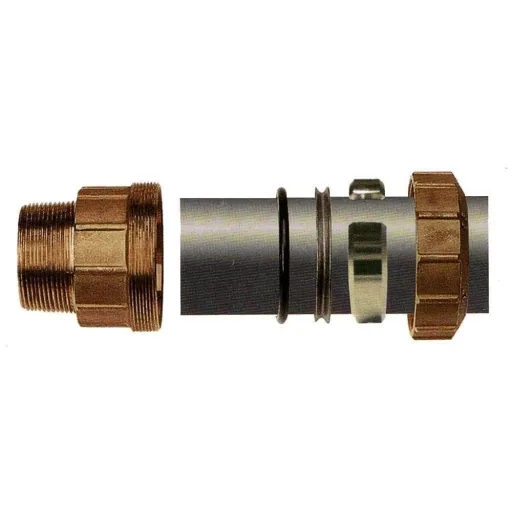

- Secure Compression Fitting: The compression design ensures a tight, leak-proof seal on your PE pipes, giving you peace of mind.
- Easy Installation: Simply insert the PE pipe and tighten the compression nut for a quick and secure connection. No special tools are required, saving you time and effort.
- Wide Range of Applications: Suitable for potable water, wastewater, and other liquid media, making it a versatile choice for various plumbing projects.
- High Pressure Resistance: With a maximum operating pressure of 16 bar, this fitting can handle demanding applications.
- Temperature Versatility: Operates reliably in temperatures ranging from -20°C to +120°C, making it suitable for diverse environments.
- DVGW Approved: Certified for use with potable water, ensuring it meets stringent safety standards.
- Versatile Installation: Suitable for both above-ground and below-ground installations, offering flexibility for your plumbing needs.
- Gas Compatibility: Can be used for gas applications when combined with a support sleeve/gas sleeve, expanding its utility.
Advantages of Our Product
- Superior Durability: Brass construction offers significantly longer lifespan compared to plastic fittings, resisting corrosion and wear.
- Enhanced Leak Protection: Compression fittings provide a more reliable seal than barbed fittings, minimizing the risk of leaks.
- Easy to Install: Simpler installation compared to soldering or welding, saving you time and effort.
- Versatile Application: Suitable for a wider range of media, including potable water and gas (with sleeve), compared to some plastic fittings.
- High-Pressure Resistance: Withstands higher pressure than many plastic fittings, making it suitable for demanding applications.
- Temperature Tolerance: Operates effectively across a broader temperature range than plastic fittings.
- Reusability: Compression fittings can often be disassembled and reused, unlike glued or welded connections, providing added value and flexibility.
How to Use (Step-by-Step)
- Step 1: Prepare the PE Pipe: Ensure the PE pipe is clean and cut squarely. Remove any burrs or sharp edges for a proper fit.
- Step 2: Loosen the Compression Nut: Unscrew the compression nut on the fitting.
- Step 3: Insert the Pipe: Push the PE pipe into the fitting until it reaches the stop.
- Step 4: Tighten the Nut: Hand-tighten the compression nut onto the fitting. Then, use a wrench to tighten it further until snug. Avoid overtightening.
- Step 5: Secure the Fitting to the Wall: Use appropriate screws and anchors to securely mount the fitting to the wall using the integrated mounting bracket.
- Step 6: Test the Connection: Turn on the water or gas supply and check for any leaks. If leaks are present, tighten the compression nut slightly.
Key Specifications
This 90° wall mount pipe fitting is crafted from high-quality brass (MS58) for exceptional durability and corrosion resistance. Designed for connecting 20mm PE pipes to a 1/2" female thread, it ensures a secure and leak-proof connection. With a maximum operating pressure of 16 bar and a temperature range from -20°C to +120°C, it's suitable for various applications, including potable water and gas (with additional support sleeve). This fitting provides a reliable solution for both above-ground and below-ground installations.
Technical Specifications
| Fitting Type | 90° Wall Mount |
| Material | Brass (MS58) |
| PE Pipe Size | 20mm |
| Thread Size | 1/2" Female |
| Max. Operating Pressure | 16 bar (Liquid Medium) |
| Operating Temperature | -20°C to +120°C |
| Suitable Media | Potable Water (DIN DVGW Approved), Gas (with support sleeve), Wastewater, Other Liquid Media |
EU-Responsible Name: Boni-Shop GmbH; Hr. Stanislav Maer
EU-Responsible Street: Wissmannstraße
EU-Responsible House No: 58
EU-Responsible Post Code: 27755
EU-Responsible Town: Delmenhorst
EU-Responsible Country: Germany
EU-Responsible Email: [email protected]
EU-Responsible Phone Number: +49(0)4221 45 777 00

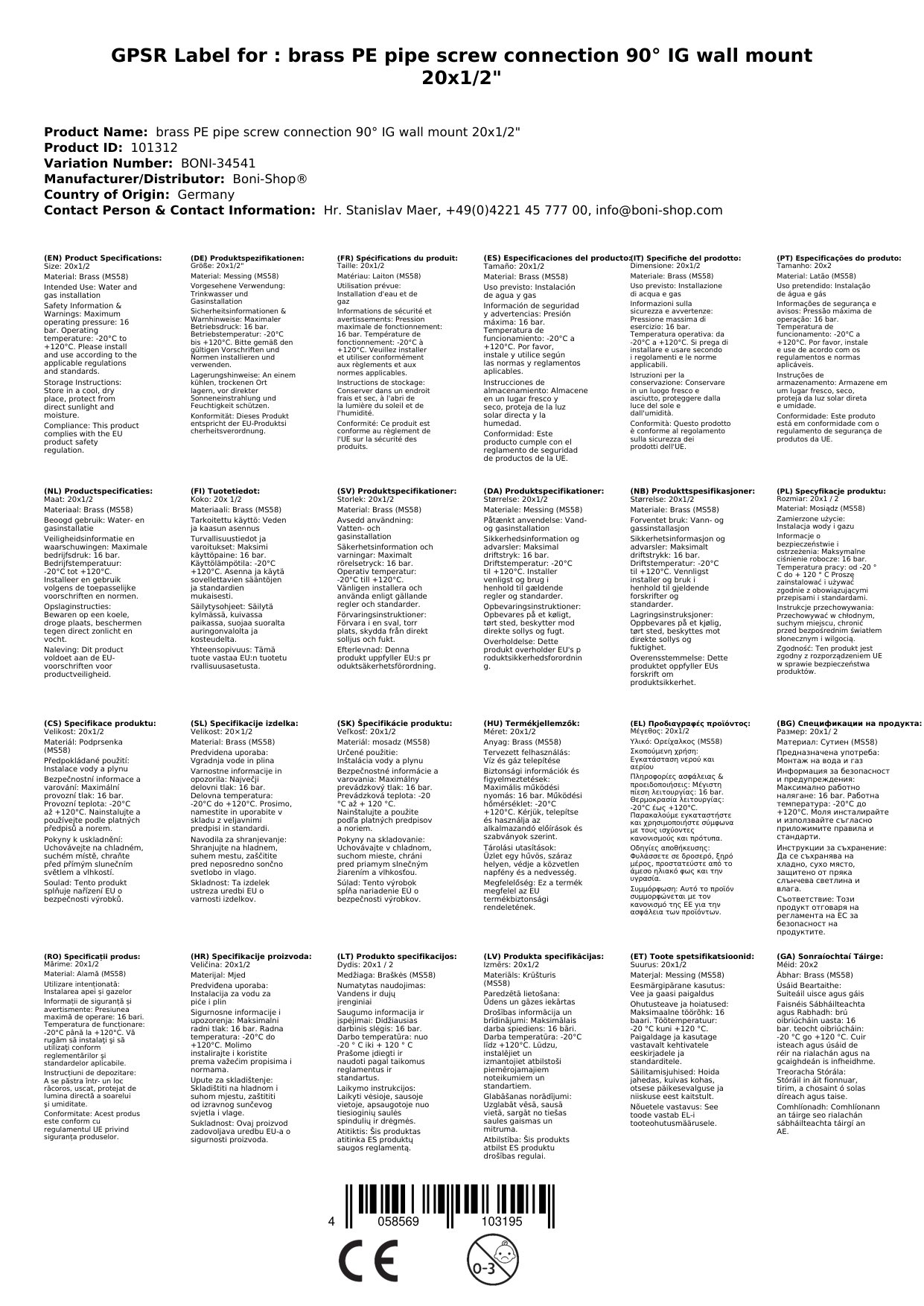

GPSR attachment:
