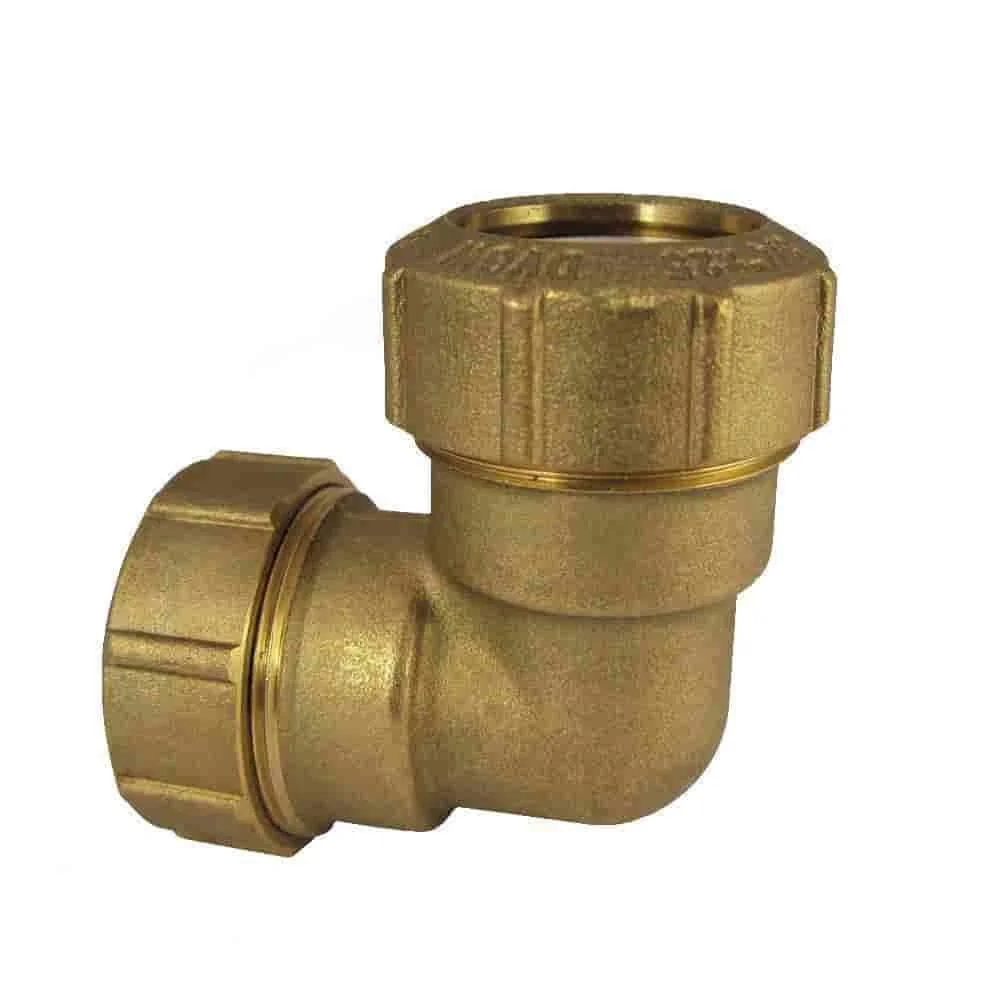

Brass PE Pipe Fitting 90 Degree Elbow, 25mm

The angle is primarily designed for positive pressure applications up to 16 bar. However, due to the tight clamping connection, it is also usable for vacuum lines and should ensure a reliable seal.

Yes, the angle is designed for an operating temperature range of -20°C to +120°C. Therefore, continuous use at a water temperature of -15°C is not a problem.

After correct installation, the angle should be permanently tight and not require retightening. No special annual maintenance is provided for this brass fitting.

The angle is suitable for liquid media up to +120°C. In principle, it can also be used for heating pipes, provided they are implemented with 25mm PE pipe and meet the system requirements.

Yes, the brass fitting is explicitly suitable for both above-ground and underground installations. The robust brass (MS58) ensures a long lifespan.

The elbow is approved for gas applications. Please note that when used with gas, an additional support tube / gas sleeve is required to ensure the highest safety.

Yes, the angle is approved for drinking water applications (DVGW certified) and can also be installed underground. It is designed for an operating pressure of up to 16 bar.

The installation is very simple and requires no special tools beyond a suitable wrench. For gas installations, however, the additional use of a support tube/gas sleeve is mandatory.

The fitting is suitable for both drinking water (DVGW-certified) and wastewater and other liquid media. This highlights the product's versatility.

No, this fitting is specifically designed for 25mm PE pipes and has two corresponding fittings for this diameter.

The fitting is suitable for drinking water, wastewater, and other liquid media. For aggressive chemical liquids, you should separately check the material resistance of brass (MS58).

For a permanently tight and secure connection, we recommend cutting the PE pipe cleanly and without burrs. Small irregularities can affect the seal.

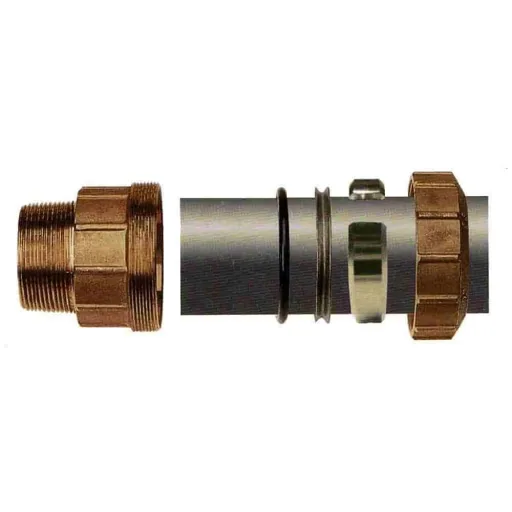

The installation is extremely simple. The PE pipe is inserted, and the union nut is tightened, which is easy even for beginners.

The angle is designed for a maximum operating pressure of 16 bar with liquid medium. A pump with 10 bar is within this safe operating range.

The angle is designed for above- and below-ground installations and offers a long lifespan. O-rings are wear parts, however; durability under direct, intense UV radiation depends on the exact sun exposure.

The nut should be hand-tightened and then tightened an additional half to three-quarters of a turn with a suitable wrench. This ensures a secure and tight connection.

Yes, the angle is designed for a maximum operating pressure of 16 bar with liquid medium. Your 12-bar pump is within the safe range and poses no issue.

The fitting is designed for operating temperatures from -20°C to +120°C. Therefore, use with hot water up to 60°C is perfectly possible.

Yes, the clamping connections are suitable for both fixed and movable installations. They can be flexibly used in various piping systems.

Yes, the product is suitable for the passage of liquid media. The material brass (MS58) is robust and offers a long service life, even with media such as chlorinated water.

No, this angle is designed for PE pipes with an outer diameter of 40mm. For a 1 inch PE pipe (approx. 32mm outer diameter), it would not be directly suitable.

Yes, the PE pipe fitting is suitable for both fixed and movable installation of PE plastic pipes.

Yes, the screw connection is designed for a waterproof and very durable connection. After correct installation, it is maintenance-free and provides a permanently secure installation.

The fitting is designed for operating temperatures from -20°C to +120°C. Summer temperatures are therefore not a problem.

The installation is very simple: The PE pipe is simply inserted and then the union nut is tightened. This creates a watertight and very durable connection that is reliable even underground.

The connection is designed for a very long lifespan and provides a waterproof connection. With proper installation, regular checking of the seals is not necessary.

The elbow can withstand a maximum operating pressure of 16 bar with liquid media. This ensures a secure connection even under high pressure.

Yes, the angle is made of brass (MS58), which ensures a very long lifespan and high robustness. It is suitable for above- and below-ground installation.

This elbow is specifically designed for 40mm PE pipes (HDPE and NDPE). If your older pipe has the same outer diameter, the elbow will fit without any issues.

That is correct. The angle is suitable for the passage of wastewater and other liquid media, in addition to drinking water and gas.
