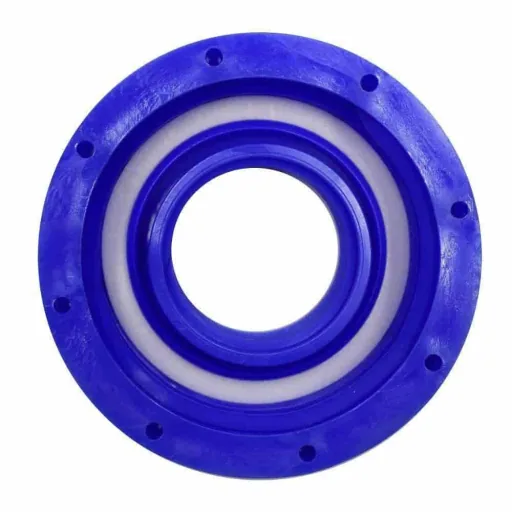

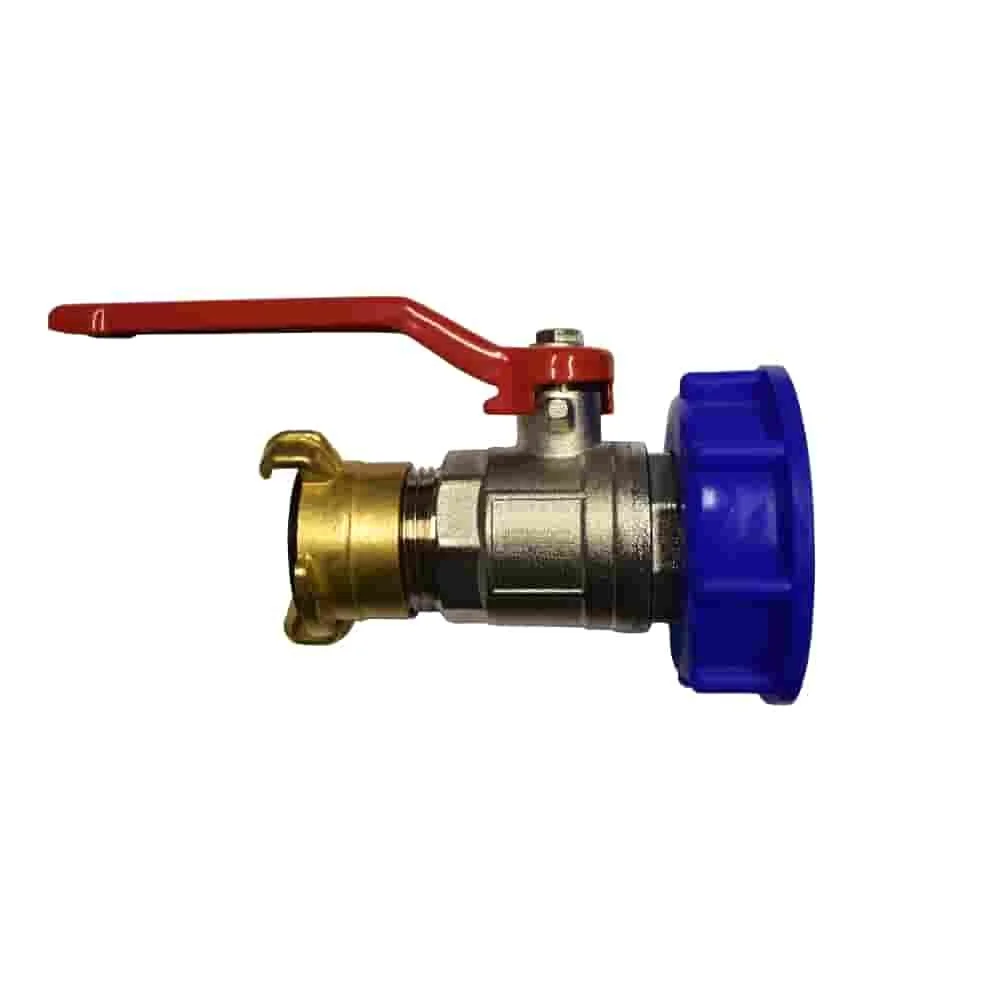

IBC Tank Adapter S60 with 1" Ball Valve - High Flow Drain

The adapter is designed for the standard S60x6 coarse thread. A perfect thread form on the IBC is necessary for optimal and permanent tightness. The sealing effect may be impaired in case of damage.

It is recommended to remove the adapter from the IBC container before frost periods and store it frost-free. Although the ball valve is made of brass, the plastic parts and residual water contained can be damaged by frost.

The ball valve is equipped with a PTFE seal that requires little maintenance. Regular lubrication or greasing is not necessary and could even damage the seal.

The S60x6 adapter usually forms a tight seal to the IBC container thread. Additional sealing tape is usually not required. Make sure to tighten firmly by hand.

The assembly is very easy: The adapter is screwed directly onto the S60x6 coarse thread of the IBC outlet. Usually no tools are required and the process is quickly done.

The adapter offers a high flow rate. However, the water pressure for an irrigation system depends on the filling height of the IBC and the hose length, not on the adapter itself. If necessary, a pump can increase the pressure.

The adapter is equipped with an S60x6 coarse thread. This thread is the standard for most common IBC containers. Please check the thread of your container in advance.

The 1 inch ball valve allows for high-flow emptying. Under optimal conditions (full IBC, short hose) you can roughly fill about 30-50 liters per minute. This fills a 10-liter bucket in about 12-20 seconds.

Yes, the integrated ball valve allows precise control of the flow. You can regulate the amount of water well, even for filling smaller containers like watering cans.

The ball valve has a 1 inch internal thread. You will need a corresponding reducing nipple or adapter from 1 inch to the size of your garden hose (e.g. 3/4 inch) to connect it.

Yes, the ball valve is designed for easy operation and is easy to open and close. The PTFE seal ensures permanently smooth function.

The adapter is specially designed for S60x6 coarse thread. This is the most common thread for IBC containers and should therefore fit.

The IBC container adapter is designed for high-flow emptying. Thanks to the ball valve design, it is relatively insensitive to smaller suspended solids in the water.

Yes, the adapter can be used as an outlet for a garden pump, provided the pump's pressure is within normal limits. The 1-inch thread allows for good flow.

The ball valve is made of chrome-plated brass and is robust. A secure connection with a longer hose is guaranteed with correct installation.

The ball valve has a 1 inch female thread. You will need a suitable reducer or a hose connector with a 1 inch male thread for a garden hose.

The adapter and the brass ball valve are designed for a high flow rate and stable use. A normal, filled 20-meter garden hose is usually not a problem as long as no excessive leverage is applied.

The PTFE seal and the brass of the ball valve are resistant to many chemicals. For acidic liquids, the concentration and type of acid should be considered.

The ball valve is made of brass, which is more frost-resistant than plastic. However, we recommend removing the adapter and storing it dry in case of frost to avoid damage.

The adapter is designed for high-flow emptying. The exact emptying time depends on the fill level of the IBC and the connected system.

Yes, the adapter is also suitable for wastewater. It is made of robust plastic and brass, which allows for a wide range of applications.

The ball valve is designed for durability and is suitable for frequent opening and closing. The precise control of the flow makes filling buckets easier.

In order to fully operate the ball valve, you need enough space for the lever, which requires a 90-degree turn. Allow for approx. 8-10 cm of clearance in front.

The adapter is made of robust plastic. However, with permanent direct sunlight, the material can become brittle over time. Partial shading or covering extends the lifespan.

Individual seals are usually available from specialist retailers. However, the PTFE seal in the ball valve is very durable.

Yes, to connect smaller hoses, you will need a corresponding reducing adapter from 1 inch to the desired size. This is not included in the scope of delivery of the IBC container adapter.

The adapter is specifically designed for IBC containers with S60x6 coarse thread. If other water tanks have exactly this thread, it could fit.

The adapter is designed for emptying IBC containers, which typically contain water or liquid fertilizer solutions. The material combination of plastic and brass (ball valve) is well-suited for such liquids.
