Threaded Fitting Stainless Steel Union 1 1/2" Female x 1 1/2" Male Type Conical

Price:

32.13 €
🇩🇪  German quality since 1923
 Free shipping on orders over £ 85*
 Secure payment by invoice
Threaded Fitting Stainless Steel Union 1 1/2" Female x 1 1/2" Male Type Conical
  2. Shop
  3. Tools
  4. Fastening Technology
  5. Fittings
  6. Verschraubungen

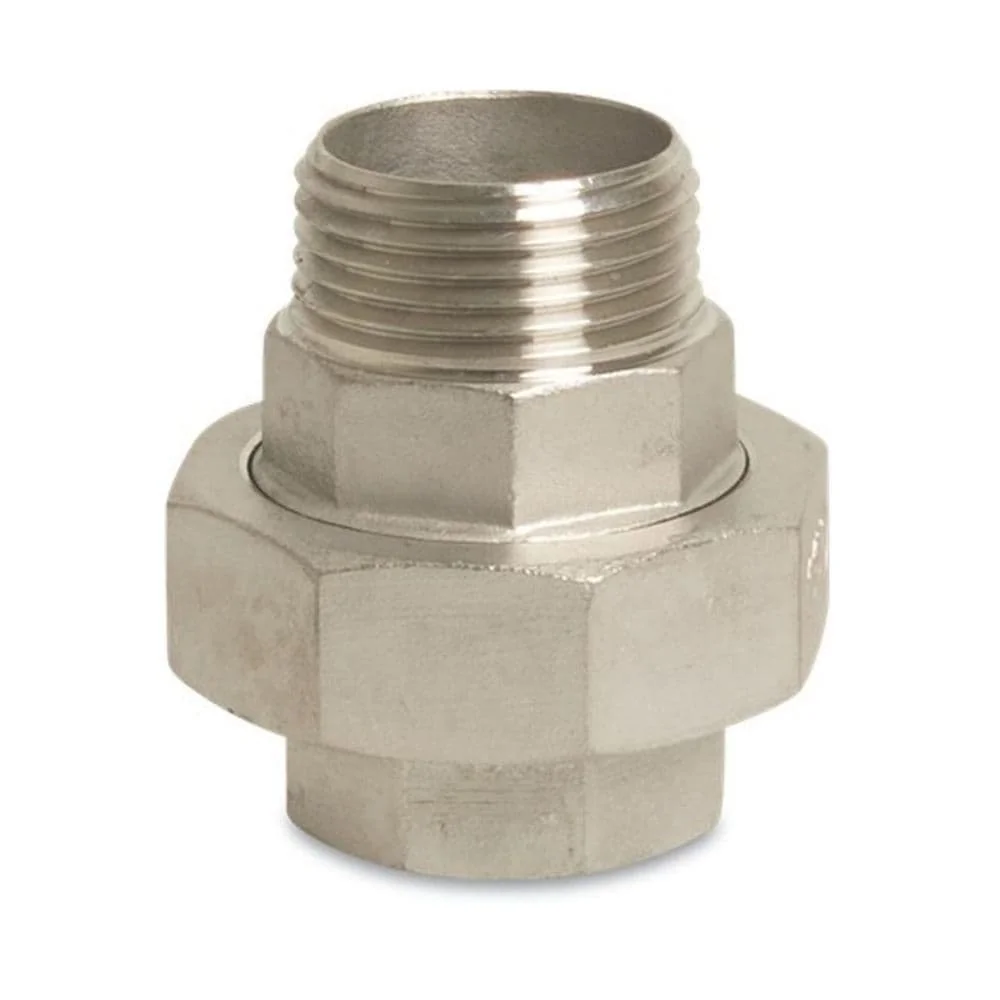

Threaded Fitting Stainless Steel Union 1 1/2" Female x 1 1/2" Male Type Conical

https://www.westfalia.uk/web/image/product.template/20329/image_1920?unique=afdfa47
111 reviews
6 sold in the last 24 hours
Thread Direction : Male × Female
Thread : 1 1/2"
Material : Stainless Steel 316
UVP: 38.88 € -17%

32.13 € 32.13 EUR 32.13 € Pay 10.71 € now with Klarna

38.24 € 48.18 €

(0.00 € / Units)
* incl. VAT,  incl. Shipping costs

9 people are viewing this right now
1.61 € Cashback with this purchase · 5 %
In Stock
About this item:
  • Stainless steel fitting 1 1/2" IG x AG – corrosion-free
  • Conical Whitworth thread – precise connection
  • Pressure range up to 10 bar – safe for water technology
  • Union nut – flexible assembly and disassembly
  • Robust material – for long-term installations
Secure Checkout
Guaranteed Secure Checkout
Contact us
Item number BONI-42276-325
Brand KLASEBO

Threaded Fitting Stainless Steel Union 1 1/2" Female x 1 1/2" Male Type Conical

The union has a female thread and a male thread, which are screwed together by a union nut and can be separated from each other. To seal the thread, you additionally need a suitable thread sealing material. Hemp or Teflon tape is suitable here. The thread is the common Whitworth pipe thread used in water technology. The male threads are conical.

Product Features:

  • rust-free and corrosion-resistant
  • durable
  • pressure ranges up to 10 bar
  • suitable for cold water and hot water

Technical Data:

Connection: Female Thread x Male Thread
Connection Dimensions: 1 1/2"
Working Pressure (PN): 10 bar
Temperature: -20 °C to + 200 °C
Material: Stainless Steel 316 (V4A Steel according to DIN 1.4401)

Advantages of Stainless Steel Fittings:

All stainless steel fittings listed here are permanently corrosion-resistant and, unlike welded fittings or press fittings, can be loosened again. The threads allow a seamless transition to other materials without the need for a transition fitting. The stainless steel unions do not require seals, making use up to 200 °C possible without any problems.

Thread Type:

The threads of all pipe unions are manufactured according to the common standards ISO 7-1/EN 10226-1 (female and male threads) as well as ISO 228-1 (union nuts of the unions). The male threads are conical/tapered. The female threads are parallel/cylindrical. All threads are standardly specified in inches. The threads are sealed with a suitable thread sealing material such as PTFE thread sealing tape or thread sealing hemp.

Whitworth Pipe Thread for Threaded Pipes and Fittings
Thread
in Inches		Male Thread
in mm		Female Thread / Core Diameter
in mm		Threads
per Inch		Pitch
in mm
1/4"13,15711,445191,337
3/8"16,66214,95191,337
1/2"20,95518,631141,814
3/4"26,44124,117141,814
1"33,24930,291112,309
1 1/4"41,9138,952112,309
1 1/2"47,80344,845112,309
2"59,61456,656112,309

Drinking Water Suitability:

Stainless steel fittings made of AISI 316 stainless steel are listed in the UBA list (UBA = Federal Environment Agency) for drinking water suitable materials in drinking water installation and can therefore be used for drinking water supply.

EU-Responsible Name: Boni-Shop GmbH; Hr. Stanislav Maer
EU-Responsible Street: Wissmannstraße
EU-Responsible House No: 58
EU-Responsible Post Code: 27755
EU-Responsible Town: Delmenhorst
EU-Responsible Country: Germany
EU-Responsible Email: [email protected]
EU-Responsible Phone Number: +49(0)4221 45 777 00

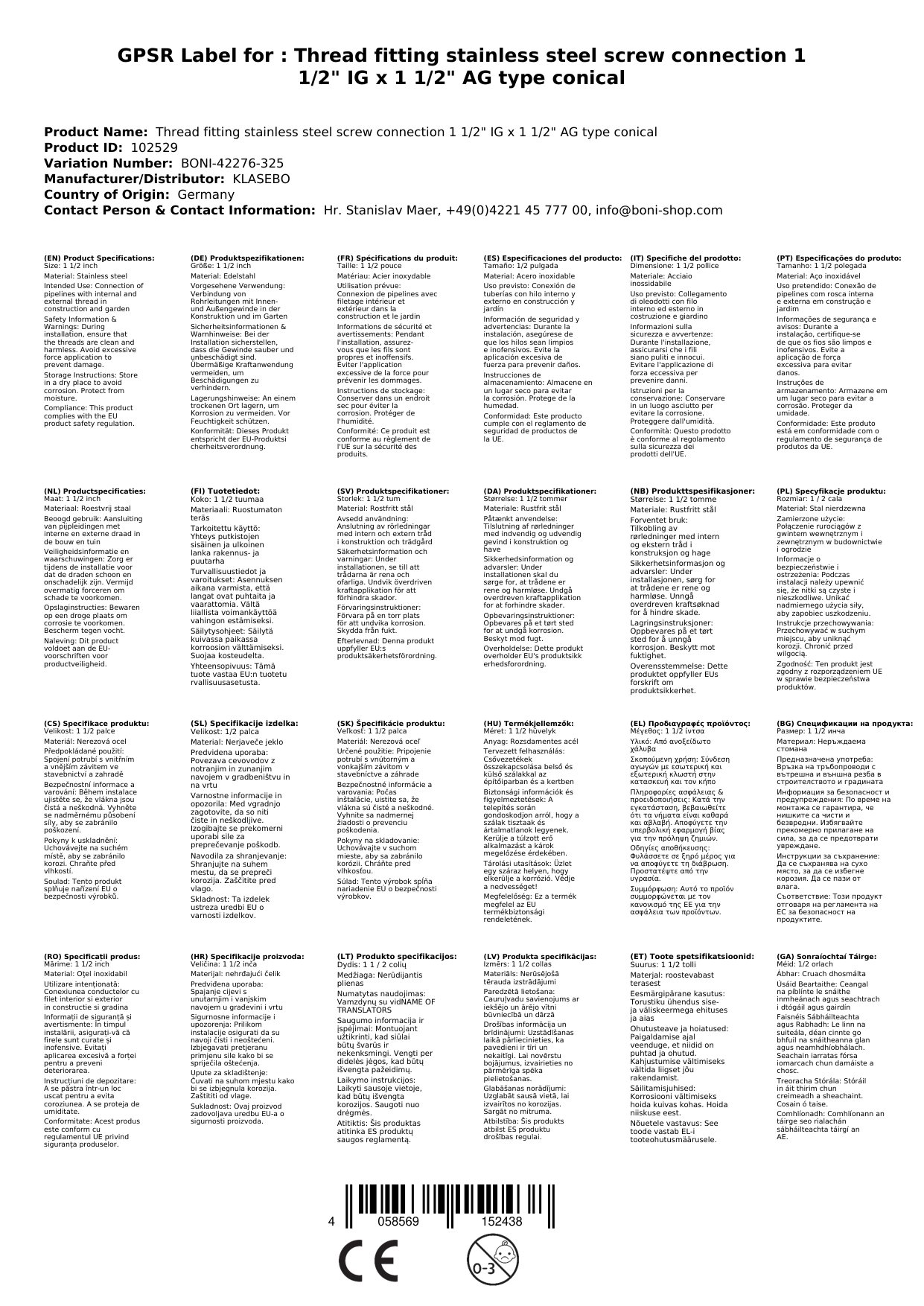

GPSR attachment: Download
