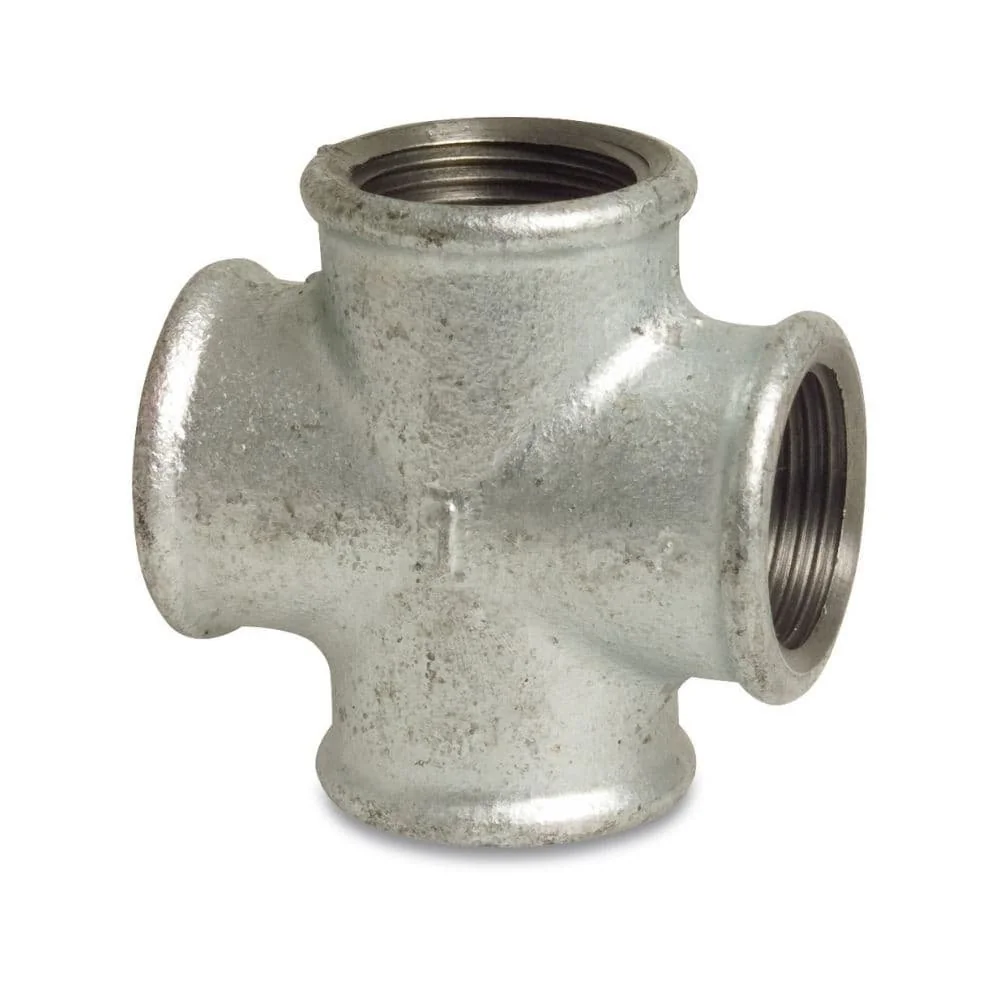

1 inch Threaded Pipe Cross Fitting - Galvanized Malleable Iron

Yes, the crosspiece has DVGW approval and is therefore suitable for gas installations. The threads are standardized according to ISO 7-1.

Yes, the cross fitting has a 1-inch internal thread on all four sides. The internal threads are parallel/cylindrical and comply with the common standard ISO 7-1.

Yes, the crosspiece is approved and suitable for sprinkler and gas extinguishing systems as well as general industrial construction.

Yes, the crosspiece is galvanized and therefore protected against corrosion. It is suitable for use in irrigation systems.

At temperatures up to 120°C, the allowable operating pressure is 25 bar. For higher temperatures, up to 300°C, the maximum operating pressure is 20 bar.

Yes, the cross piece has DVGW approval and is suitable for gas installations.

The crosspiece is galvanized, which provides good corrosion protection. It is made of cast iron and complies with the DIN EN 10242 standard.

At a temperature of 150°C, the threaded fitting can withstand a maximum operating pressure of 20 bar. This value is valid up to 300°C.

Yes, the crosspiece is specifically designed and approved for heating installations.

The threaded connections of the crosspiece are not self-sealing. You must absolutely seal them with a suitable thread sealing material such as PTFE tape or sealing hemp.

The threads comply with the standards ISO 7-1/EN 10226-1 (internal and external threads) and ISO 228-1 (union nuts). The internal threads are parallel, the external threads are tapered.

Yes, the crosspiece is suitable for use in refrigeration and air conditioning systems as well as in industrial plant construction (including compressed air systems).

The temperature range of the crosspiece is from -20°C to 300°C. It is therefore also suitable for applications at sub-zero temperatures.

The threaded connections are not self-sealing. We recommend sealing with a suitable material such as Teflon tape or thread sealant hemp.

To seal the Whitworth pipe thread, you need a suitable thread sealing material. Hemp or Teflon tape, suitable for the 1/4 inch thread size, are appropriate.

The cross piece has threads according to ISO 7-1/EN 10226-1 for internal and external threads and ISO 228-1 for union nuts.

For sealing the threads, you will need suitable thread sealing material. Hemp or Teflon tape are suitable for this purpose, but these are not included in the delivery.

Yes, the crosspiece is designed for a working pressure (PN) of up to 10 bar. A pressure of 8 bar is safely within the permissible range for this fitting.

The crosspiece is designed for temperatures from -20 °C to +200 °C. As long as the steam temperature is within this range and the pressure does not exceed 10 bar, it is usable.

The crosspiece is designed for temperatures from -20 °C to +200 °C. It can therefore also be used in frost, provided no water freezes in it and damages the material.

Yes, the material stainless steel 316 (V4A) is generally approved for drinking water installations. For sealing, you should use suitable thread sealing material approved for drinking water.

Yes, the cross fitting with its four internal threads is ideal for branching a water pipe. Note that you must use suitable sealing material such as hemp or Teflon tape for each thread.

The product data specifies a working pressure (PN) of up to 10 bar. Explicit suitability for vacuum lines is not listed in the description.

Yes, the cross piece is suitable for both cold and hot water. It withstands temperatures up to +200 °C and is made of corrosion-resistant stainless steel 316.

The crosspiece is designed for working pressures up to 10 bar. For most common household pressure boosting systems in the basement, this is sufficient.

Yes, after disassembly, the thread of the crosspiece must be resealed with new sealing material such as hemp or Teflon tape to ensure tightness.

The crosspiece is made of stainless steel 316 (V4A steel) and is therefore rust-free and corrosion-resistant. It is very suitable for permanent use outdoors.

The 1/4" cross fitting has dimensions A=18 mm and B=16,5 mm. Please check these dimensions against the available space in your niche.

Yes, the cross piece has four internal threads that you can use as one inlet and three outlets. Make sure all connections are equipped with suitable thread sealing materials.

Yes, the stainless steel 316 (V4A) fitting is rust- and corrosion-resistant and therefore suitable for use with common pool chemicals.
