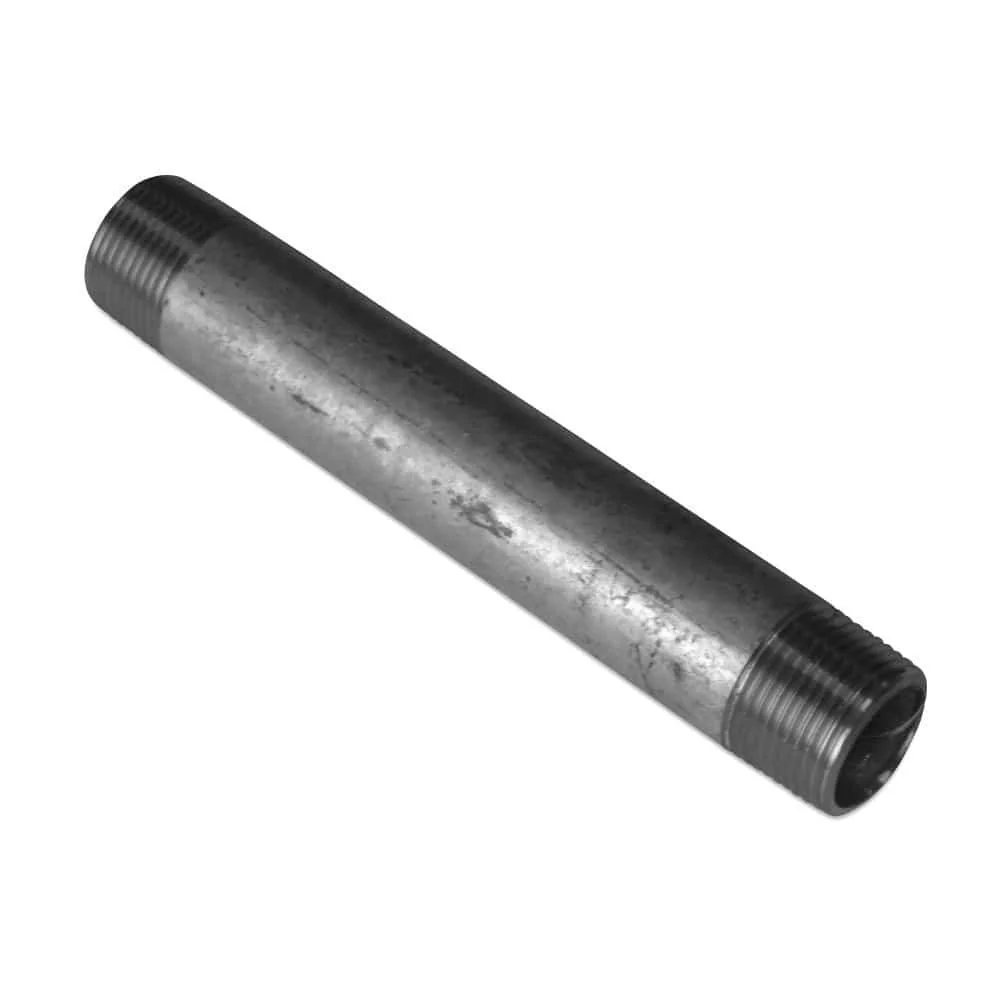

Galvanized Pipe Nipple 1/2 Inch, Threaded Pipe Fitting

The pipe nipple is suitable for sanitary installations and is used to convey liquids. An explicit certification for drinking water is not mentioned in the product description.

The nipple has a total length of 50 mm and two 1/2 inch external threads. This makes it well-suited for extending existing 1/2 inch connections.

The threaded connections of the pipe nipple are not self-sealing. For sealing, the use of thread sealant material such as PTFE tape or thread sealant hemp is recommended.

The pipe nipple is designed for a maximum operating pressure of 20 bar. It is also intended for the conveyance of gases, which allows its use with compressed air.

Yes, since the pipe nipple is made of steel, it is magnetic.

The pipe nipple is suitable for gas installations and can transport gases and liquids with a maximum operating pressure of 20 bar. Proper sealing with suitable material is essential.

The nipple is galvanized, which provides some corrosion protection. For permanent outdoor installations exposed to harsh weather, regular inspection is recommended.

Yes, the nipple is designed for use in systems with an operating temperature of up to 180°C and a maximum pressure of 20 bar.

The threads of this pipe nipple are manufactured according to the common standards ISO 7-1/EN 10226-1. They are executed as standard Whitworth pipe threads with tapered external threads, ensuring compatibility with most common fittings.

Yes, the pipe nipple is specifically designed for conveying liquids and gases and can be used in gas installations and heating systems.

This pipe nipple has two 1/2 inch external threads (AG x AG). It is used to connect two internal threads or to extend a 1/2 inch connection, but it is not a reducer.

The nipple is designed for operating temperatures up to 180°C and a maximum operating pressure of 20 bar, making it suitable for hot water pipes under these conditions.

The material is galvanized steel, which provides good corrosion protection. For permanent use outdoors or in very humid environments, the galvanization should remain intact.

Yes, this nipple is made with Whitworth pipe threads according to ISO 7-1/EN 10226-1. These are the standard for many water pipes, including old cast iron pipes, provided the thread is suitable.

The stainless steel pipe nipple is designed for temperatures from -20°C to +200°C. Therefore, use in a solar system up to 150°C is entirely possible.

No special tools are needed for the installation of the nipple. Standard installation tools like pipe wrenches and the appropriate thread sealing material (e.g., Teflon tape or hemp) are sufficient.

This nipple has double-sided 2" external threads and a total length of 120 mm (12 cm). It can connect two matching 2" internal threads and bridge an 8 cm gap well.

Yes, the nipple can easily withstand an operating pressure of 15 bar. The maximum operating pressure is 20 bar.

Yes, the pipe nipple is designed for a maximum operating pressure of 20 bar. Permanent use under 15 bar is therefore possible without any issues.

Yes, the pipe nipple is suitable for use with hot liquids and withstands operating temperatures of up to 180°C. Ensure a temperature-resistant thread seal.

Yes, the pipe nipple can also be used for gas installation. The areas of application expressly include gas installations as well as industrial plant construction.

Yes, the nipple is safe for an operating pressure of 15 bar. The maximum operating pressure of the fitting is 20 bar.

Yes, the nipple is designed for maximum operating temperatures of 180°C. It can therefore be used without problems in hot water installations or similar applications.

For a secure seal of the thread, the additional use of a suitable thread sealing material, such as hemp or Teflon tape, is required. The external threads are conical and manufactured according to the Whitworth pipe thread standard.

With a total length of 150 mm (external thread to external thread), this nipple is well suited for bridging medium distances. Note that the threads at both ends still need sealing material and insertion depth.

The stainless steel pipe nipple is designed for temperatures down to -20 °C. It can therefore also be used outdoors in winter.

Yes, the threaded fitting can also be used in refrigeration and air conditioning systems. The temperature resistance up to 180°C means that even very low temperatures are not a problem.

The pipe nipple is designed for temperatures up to 180°C. Therefore, it permanently withstands 80°C water temperature in a circulation pipe.

Yes, the galvanized pipe nipple is explicitly suitable for gas installations. It can be used at pressures up to 20 bar and temperatures up to 180°C.

The galvanization provides some corrosion protection. However, for permanent saltwater applications, special stainless steel or brass alloys are often more suitable.
