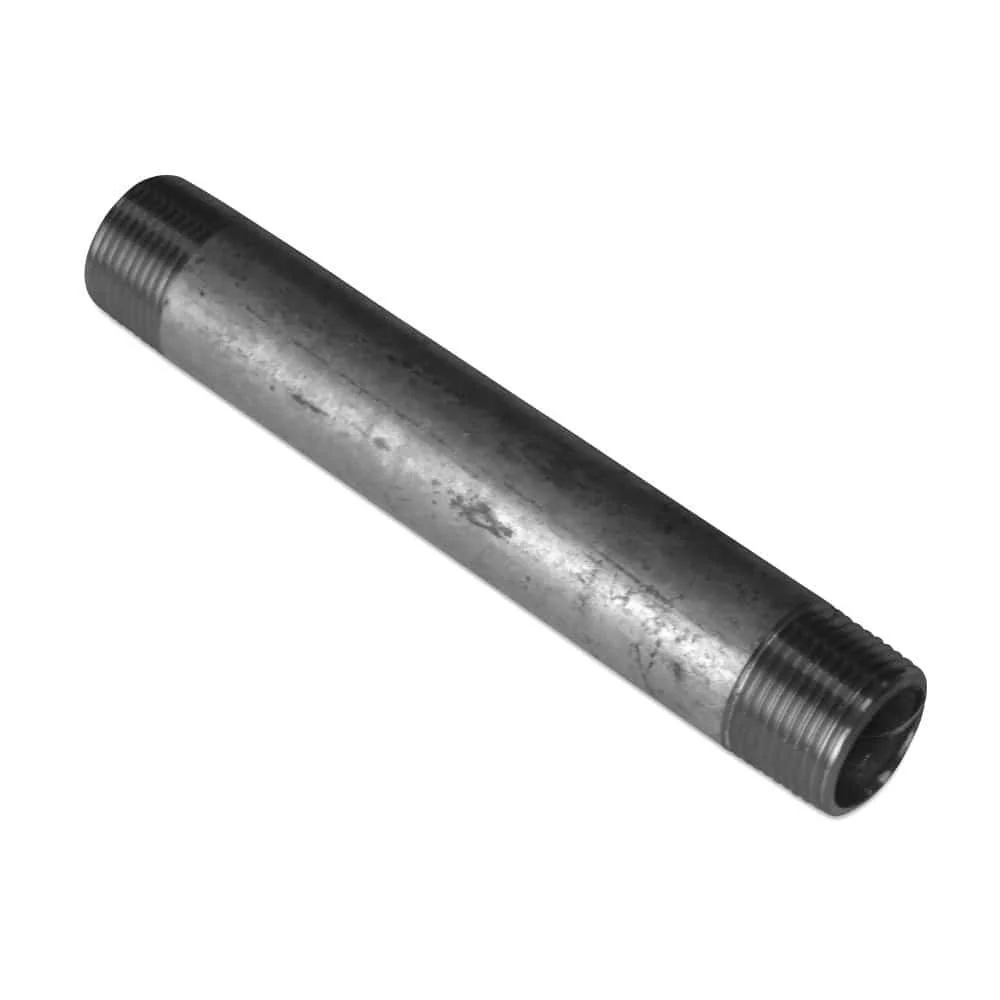

Galvanized Pipe Nipple, 3/4 Inch Threaded Fitting

No special tools are needed for the installation of the nipple. Standard installation tools like pipe wrenches and the appropriate thread sealing material (e.g., Teflon tape or hemp) are sufficient.

The nipple is suitable for conveying gases at operating pressures up to 20 bar. For gas installations, national and local safety regulations must always be observed.

The nipple is made of galvanized steel, which provides protection against corrosion. For permanent outdoor installation, regular inspection is advisable.

The applications of the fitting explicitly include refrigeration and air conditioning systems. It is suitable for liquids and gases at the specified pressure and temperature limits.

For sealing threaded connections, we recommend PTFE thread seal tape or thread seal hemp. Both materials are suitable for the tapered external threads and parallel internal threads.

Yes, the galvanized pipe nipple is also suitable for heating installations. It is designed for operating temperatures up to 180°C and pressures up to 20 bar.

Yes, the pipe nipple is approved for a maximum operating pressure of 20 bar. A water pressure of 18 bar is within the technical specifications.

Yes, the pipe nipple is made of steel and can be shortened with appropriate tools. If necessary, a new thread must be cut after shortening.

The pipe piece is made of robust steel and designed for the conveyance of liquids and gases. For a stable and lasting installation, especially with longer free-hanging sections, additional support or fastening is recommended.

The pipe nipple is used for conveying liquids. Always observe the specific local regulations and standards for drinking water installations.

The conical external threads of the nipple are intended for connection with parallel/cylindrical internal threads. A tight seal is ensured by using a suitable thread sealing material such as PTFE tape or hemp.

This pipe nipple has a length of 1000 mm (1 meter). For a distance of 10 meters, you will need 10 of these nipples, which you can connect together. (Approximately: 10 nipples for 10 meters distance.)

The pipe nipple is galvanized, which provides good corrosion protection and makes it suitable for environments with high humidity and fluctuating temperatures. However, with very aggressive media or persistent condensation, regular inspection may be advisable.

The galvanized pipe nipple is designed for maximum operating temperatures of 180°C. It is therefore usable for steam systems within this temperature range.

Yes, this nipple is made with Whitworth pipe threads according to ISO 7-1/EN 10226-1. These are the standard for many water pipes, including old cast iron pipes, provided the thread is suitable.

The pipe nipple is suitable for sanitary installations and is used to convey liquids. An explicit certification for drinking water is not mentioned in the product description.

The stainless steel pipe nipple is designed for temperatures from -20°C to +200°C. Therefore, use in a solar system up to 150°C is entirely possible.

This nipple has double-sided 2" external threads and a total length of 120 mm (12 cm). It can connect two matching 2" internal threads and bridge an 8 cm gap well.

Yes, the nipple can easily withstand an operating pressure of 15 bar. The maximum operating pressure is 20 bar.

Yes, the pipe nipple is designed for a maximum operating pressure of 20 bar. Permanent use under 15 bar is therefore possible without any issues.

Yes, the pipe nipple is suitable for use with hot liquids and withstands operating temperatures of up to 180°C. Ensure a temperature-resistant thread seal.

Yes, the pipe nipple can also be used for gas installation. The areas of application expressly include gas installations as well as industrial plant construction.

Yes, the nipple is safe for an operating pressure of 15 bar. The maximum operating pressure of the fitting is 20 bar.

Yes, the nipple is designed for maximum operating temperatures of 180°C. It can therefore be used without problems in hot water installations or similar applications.

For a secure seal of the thread, the additional use of a suitable thread sealing material, such as hemp or Teflon tape, is required. The external threads are conical and manufactured according to the Whitworth pipe thread standard.

With a total length of 150 mm (external thread to external thread), this nipple is well suited for bridging medium distances. Note that the threads at both ends still need sealing material and insertion depth.

The stainless steel pipe nipple is designed for temperatures down to -20 °C. It can therefore also be used outdoors in winter.

Yes, the threaded fitting can also be used in refrigeration and air conditioning systems. The temperature resistance up to 180°C means that even very low temperatures are not a problem.

The pipe nipple is designed for temperatures up to 180°C. Therefore, it permanently withstands 80°C water temperature in a circulation pipe.

Yes, the galvanized pipe nipple is explicitly suitable for gas installations. It can be used at pressures up to 20 bar and temperatures up to 180°C.
