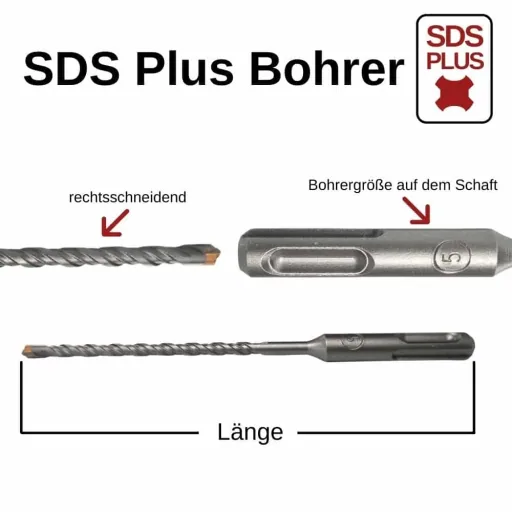

SDS Plus Hammer Drill Bit, 16mm x 600mm, 4-Flute Masonry Drill Bit

The dynamic core reinforcement makes the drill bit stable against extreme torsional stress. This reduces the risk of breakage even with lateral pressure or slight tilting in the borehole.

The drill bit is specially designed for rotary hammers of the 2 - 4 kg class. With a 5kg rotary hammer, optimal performance and service life may not be guaranteed.

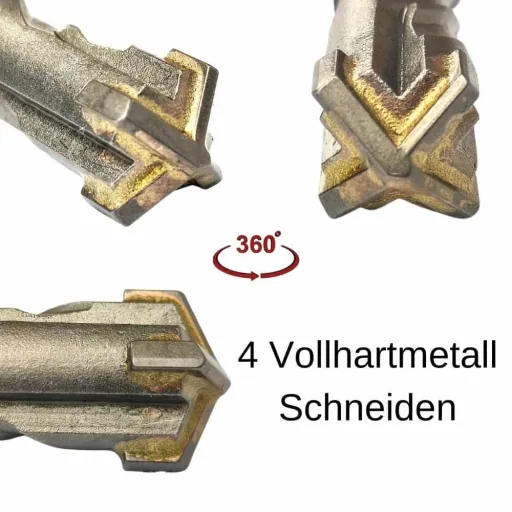

The symmetrical 4-cutter head ensures precise and pinpoint drilling as well as central guidance in the borehole. This gives you clean and exact results, even in hard materials such as concrete.

Yes, the drill is suitable for use in reinforced concrete. The special carbide plate and core reinforcement ensure stability even when hitting reinforcements.

The large-volume dust removal flutes and the short spiral entrances of the drill bit ensure a fast and efficient dust removal. This prevents the hole from clogging even with deep drilling.

The drill bit has a special hard metal plate in a special alloy, which is very resistant even in natural stone with hard inclusions. The high soldering temperature of the tip ensures additional stability.

The total length of the drill bit is 600 mm. The usable drilling depth is sufficient to drill through a 40 cm thick wall without any problems in one go.

The special soldering ensures the highest soldering temperature, whereby the carbide plate is held securely even during intensive use. This minimizes the risk of annealing or loss of the tip.

The special carbide plate in special alloy and the highest soldering temperature thanks to special soldering guarantee a long service life. The drill is designed for industrial use and can withstand continuous use in hard materials.

The drill bit is optimized for 2 - 4 kg class hammer drills. Using it with a device under 2 kg can impair efficiency and is not ideal for maximum performance in hard materials.

This hammer drill bit is designed for right-hand cutting and is optimized for clockwise rotation. A specific reverse function to release stuck drill bits is device-dependent and not part of the drill bit's design.

The symmetrical design of the 4-cutter head ensures precise and pinpoint drilling, even with slightly angled approaches. The central guidance in the bore hole is thereby very well maintained.

Yes, the drill bit with a diameter of 16.0 mm is ideal for M10 heavy-duty anchors. The 4-cutter head ensures precise, dimensionally accurate holes and centric guidance.

Compliance with the DIN 8035 standard ensures high product quality and a perfect fit. The drill bit is suitable and compatible for 2-4 kg class hammer drills with SDS-PLUS mount.

The drill's spiral greatly reduces vibrations, which leads to significantly lower noise emissions. This is especially advantageous when working in inhabited environments and makes the difference noticeable.

Yes, the 16mm drill bit with a length of 600mm is designed for deep drilling and breakthroughs in concrete and reinforced concrete. It is suitable for rotary hammers of the 2-4 kg class.

Yes, the drill is suitable for precise drilling in granite. Make sure the plate is stable and use a suitable rotary hammer.

Yes, the symmetrical design of the 4-cutter head and the centric guidance ensure very precise and dimensionally accurate drilling. This is an important prerequisite for the secure hold of chemical anchors.

The dynamic core reinforcement of the drill ensures high stability against extreme torsional stress. This helps to avoid jamming and to safely release the drill if necessary.

Yes, the drill bit can be used for precise drilling in tiles. Pay attention to a suitable speed and the use of a rotary hammer of the 2-4 kg class.

The special design of the spiral significantly reduces the noise emissions of the drill. It is therefore quieter in operation than many conventional hammer drills, which is advantageous in inhabited environments.

Yes, the optimized spiral of the 4-cutter greatly reduces vibrations. This leads to a more pleasant working feel and less fatigue compared to many 2-cutter drills.

The large-volume drill dust flutes and short spiral entrances of the drill are specially designed for fast drill dust removal. This prevents clogging and ensures rapid drilling progress even in reinforced concrete.

Yes, the 4-Schneider design with a symmetrical head ensures centric guidance and rapid removal of drill dust. This reduces the risk of snagging and jamming, especially in reinforced concrete with reinforcement.

Yes, the drill bit is designed for intensive use in reinforced concrete and other hard materials. The dynamic core reinforcement ensures stability against extreme torsional stress and a long service life.

Yes, the drill's spiral is designed in such a way that vibrations are greatly reduced. This leads to a noticeable relief in the arms during longer drilling work and significantly increases working comfort.

The symmetrical design of the drill head allows for precise and pinpoint placement. This helps to minimize slipping even on uneven concrete surfaces and to drill centrally immediately.

The symmetrical design and the dynamic core reinforcement of the drill bit enable a stable, central guidance in the borehole. The reduced vibration also helps with setting and guiding over the full length of 600mm.
