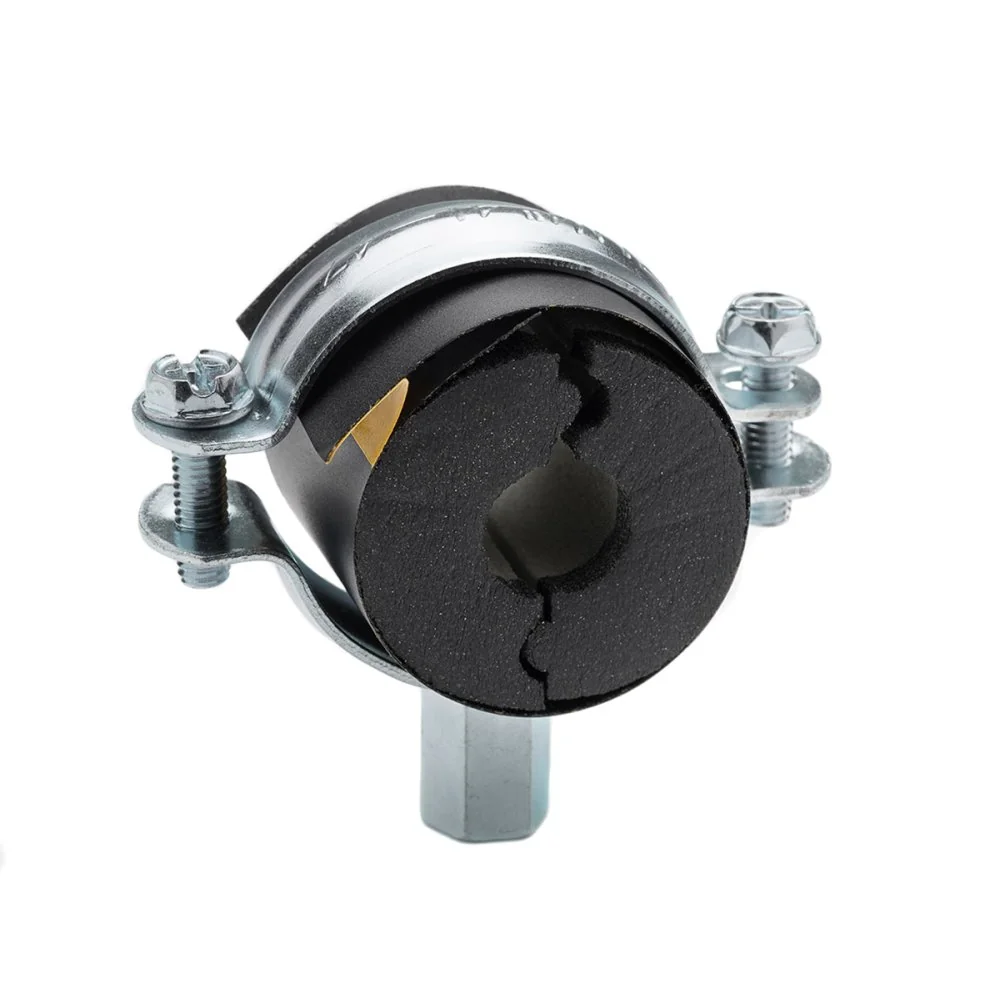

Insulated Pipe Clamp with Support, 28x19mm, Pipe Insulation Support

Discover the ideal solution for pressure-resistant pipe insulation in climate and refrigeration technology. Our insulated pipe clamp with support offers easy installation, long-term protection, and stability. With integrated PIR foam and Eurobatex rubber sheathing, you benefit from the highest insulation performance and reliability. Find all the information you need for safe and efficient pipe insulation right here.

Key Specifications

Our insulated pipe clamp with support provides reliable protection for your pipes. Specifically designed for pipes with a 28 mm diameter and a 19 mm insulation thickness, it ensures optimal insulation performance. The PIR foam and Eurobatex rubber sheathing guarantee perfect pipe insulation. You benefit from simple installation and a durable solution that protects and insulates your pipes. This size is ideal for many residential and commercial HVAC applications, offering a balance between insulation efficiency and ease of installation.

Technical Specifications

Product Features and Benefits

• The PIR foam acts as a support segment for perfect insulation performance, so you can be sure your pipes are optimally insulated.
• The Eurobatex rubber sheathing and black film offer you additional protection and stability.
• Easy and quick installation thanks to screw pipe clamps with M8/M10 combination threads (up to 165 mm) and M10 (larger than 165 mm) saves you time and effort.
• The wide temperature range from -45°C to +105°C allows you to use it in all climate and refrigeration technology applications.
• The thermal conductivity of 0.032 W/mK at 0°C and the water vapor diffusion resistance greater than 10,000 μ meet the highest insulation performance requirements.
• A length of 50-100 mm and a pipe diameter of 15 mm to 612 mm offer you high flexibility for various applications.
• The special design for pipes with a diameter of 28 mm and an insulation thickness of 19 mm ensures a precisely fitting solution for you.
• The included pipe support with clamp enables easy and stable installation for you.

Advantages of Our Insulated Pipe Clamp with Support

• Excellent Insulation Performance: Thanks to the PIR foam and Eurobatex rubber sheathing, you benefit from optimal thermal insulation and reduced energy loss.
• Pressure-Resistant Insulation: The robust construction ensures durable and reliable insulation of your pipes, even under demanding conditions.
• Easy Installation: The screw pipe clamps with combination threads enable quick and uncomplicated installation without special tools.
• High Flexibility: The wide temperature range and adaptability to various pipe diameters offer you versatile application options.
• Durable Protection: The Eurobatex rubber sheathing and black film protect your pipes from mechanical damage and environmental influences.
• Integrated Pipe Support: The included pipe support with clamp ensures stable and secure fastening of your pipes.
• Reduced Condensation: The high water vapor diffusion resistance minimizes condensation and protects your pipes from corrosion.

How to Use

1. Step 1: Preparation - Make sure the pipes are clean and dry.
2. Step 2: Attach the Insulated Pipe Clamp - Open the clamp and place it around the pipe. Ensure the PIR foam is in direct contact with the pipe.
3. Step 3: Fasten the Pipe Support - Position the pipe support under the clamp and secure it with the screws.
4. Step 4: Tighten the Clamp - Tighten the screws on the clamp until it is secure and stable.
5. Step 5: Repeat - Repeat the steps for all other pipes that need to be insulated.
