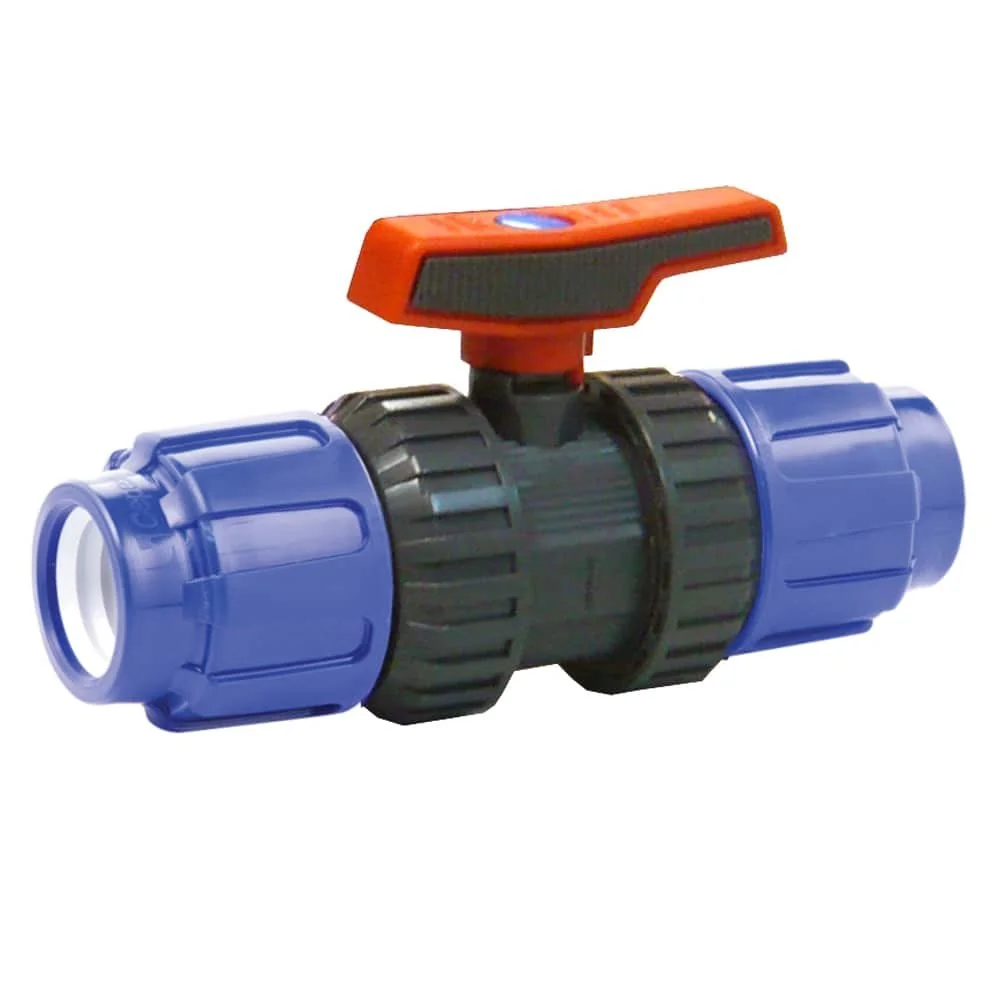

PP PE Pipe Fitting Ball Valve 40 x 40
About this item:
- PP PE Material – stable and durable in use
- Dimensions 40 x 40 – perfect for pressure pipe systems
- Pressure resistant up to PN 16 (240 psi) – reliably tight
- Ball valve design – easy operation guaranteed
- Suitable for drinking water – safe for all applications
| Item number | BONI-45290 |
| Brand | Cepex |
Tino Armster
Manfred Schultz
Reinhold Weis
Ursula Rottingh
Christian Faiß
Stefan Bernhart
Nicolai Bˆhl
Beate Steiger
There are no questions yet
Ask a question to learn more about the product
4.8
Reviews (8)
Tino Armster
PP PE Pipe Fitting Ball Valve 40 x 40
Are you looking for compression fittings and fittings for your pressure pipe systems?
We offer you the suitable PE pipe fitting for private or industrial use.
Suitable for use in the drinking water sector.

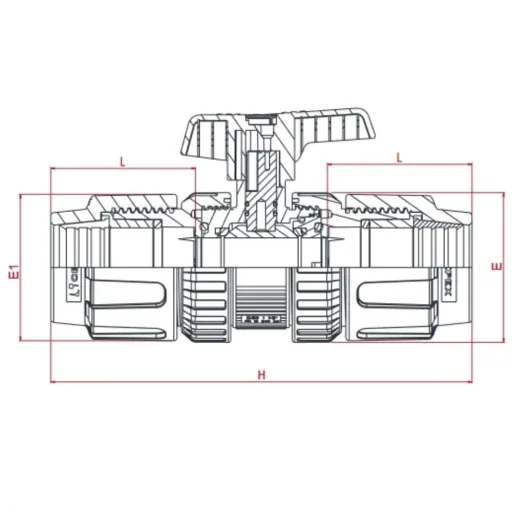

Technical Data (see image)
D: 40
DN: 32
PN: 16 (240 psi)
L: 82mm
E: 81mm
E1: 80mm
H: 247mm
Our All-Round Talent
Our PE pipe fitting is an all-round talent. It is made of polypropylene and is therefore very impact and crack resistant.
At the same time, it is very durable and shows little or no signs of wear or use even after long use.
It insulates ideally and is resistant to acids, alkalis, salts, and other organic solutions.
Our PE pipe fitting (also called fitting) is particularly light and can be installed in no time.
You benefit from the high quality of the product we offer, as our PE pipe fitting (compression connector) is tested and certified by globally recognized testing institutes.
You can order the PE fittings from us in several variants and apply them in a wide variety of areas. The most important points at a glance:
- PE pipe fitting in various variants
- blue/black
- suitable for use in the drinking water sector
- very easy installation
- secure connections, high tightness
- very durable, acid-resistant, and very impact-resistant
- temperature range from 0°C to 80°C (briefly up to 110°C)
- maximum allowable pressure at 20°C = PN16 (240psi)
We offer various models
- Shut-off valve
- End cap
- Compression sleeve
- Coupling with external thread
- Coupling with internal thread
- Coupling with sleeve
- Coupling with reduction
- Assembly key
- T-piece with 3 fittings
- T-piece with external thread
- T-piece with internal thread
- T-piece with extension
- T-piece with reduction
- Adjustable wall bracket with internal thread
- Angle with 2 fittings
- Angle with external thread
- Angle with internal thread
Our fitting meets the standards EN 712/713/715 and ISO 3501/3458/3459.
It is optimally suited for fitting on PE pipes according to the standards ISO 11922; DIN 8072/8074 and UNE 53131.
