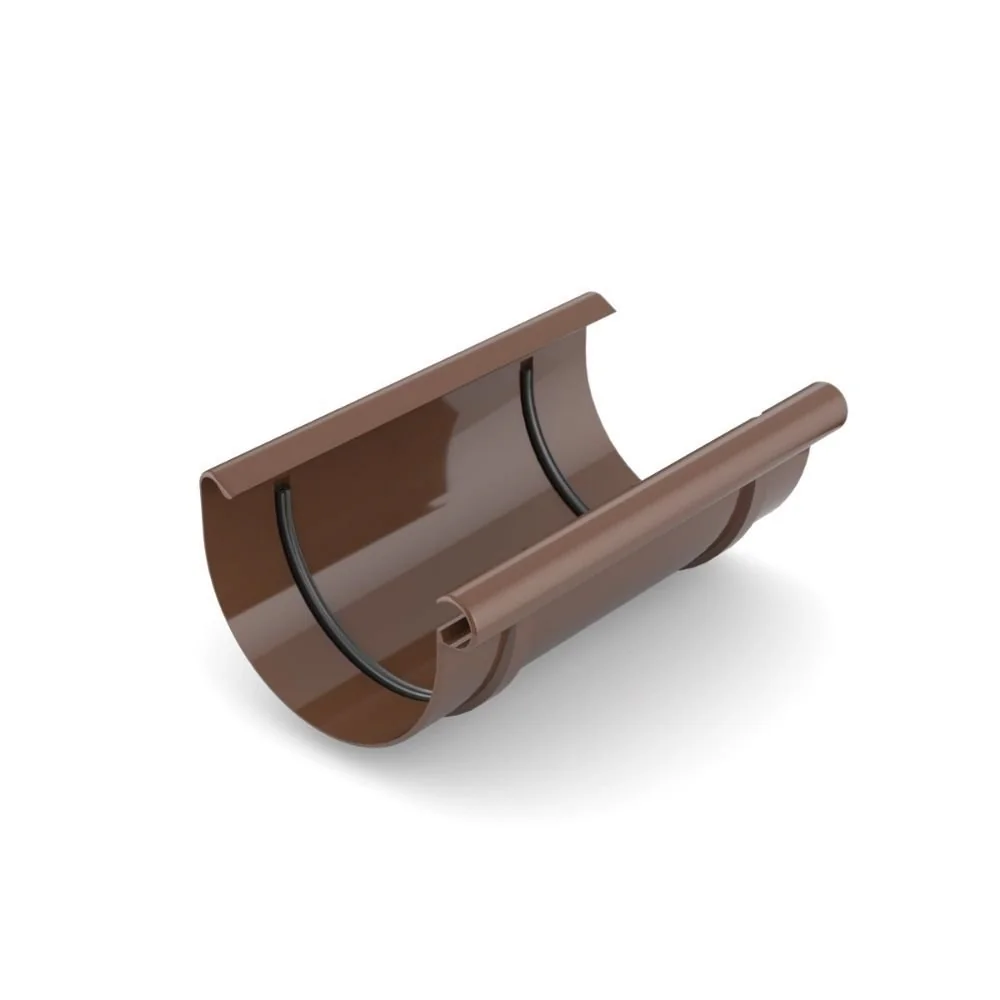

Brown Gutter Connector, Rain Gutter Joint - System 75

The gutter connector BONI-62-032 is mounted by sliding it onto the front gutter bead. Then the part snaps into the rear gutter bead to create a stable connection.

The assembly is done by sliding it onto the front gutter flange and then snapping it into place at the back. This snap connection ensures a secure hold and guarantees stability. Pay attention to the correct positioning of the seals and limiters.

The seal is ensured by the rubber profile in the locking connection. It is important to slide the element on correctly and let it snap into place until it is firmly seated. Strong pressing is not necessary.

When sliding the gutter connector onto the front flange of the gutter, make sure that the rubber profiles and limiters interlock correctly on the inner surface. Then press the inner part of the gutter under the rear lug until it clicks into place. Finally, check the position of the seals for a permanently tight connection.

This connector is an integral part of the BRYZA 125 gutter system. Compatibility with gutters from other manufacturers cannot be guaranteed due to specific profile and connection constructions.

The gutters are inserted into the connector by means of a snap connection. This connection, in combination with the rubber profile, ensures a secure and tight fastening.

Yes, when connecting, it is essential to pay attention to the correct position of the rubber profile in the groove of the fitting. In addition, the limiters on the inner surface of the connector must be taken into account.

Yes, the BRYZA GUTTER SYSTEM is an established product, which was launched in early 2004 and has proven itself ever since.

Yes, if the gutter sections do not have the exact required length, they must be cut at right angles with a fine-tooth saw. This applies to both the gutter and the downpipes.

Yes, the connection type of the BRYZA gutter system is designed to compensate for thermal length changes of the gutter system parts. This is done through the construction of the snap connection and the rubber profile, which allow a certain flexibility.

The BRYZA 125 gutter system with a 125mm gutter and 90mm downpipe is designed for single-family and multi-family homes, as well as apartment blocks. It is also suitable for larger storage, commercial and industrial buildings as well as public buildings.

When mounting the connector, make sure to pay attention to the correct position of the seals and limiters on the inner surface. These serve as guides and help ensure correct alignment and mounting.

No, the connections of the downpipes with the pipe fittings are made with special connecting sleeves without a rubber seal. Only the gutter connectors themselves use a rubber profile for sealing.

The connection is sealed by a rubber profile located in the groove of the gutter connector. This type of connection guarantees the required tightness and also enables the compensation of thermal length changes, which contributes to a permanent function.

The snap connection of the gutter connector allows for easy and uncomplicated assembly. Whether repeated detachment for cleaning purposes is recommended permanently without affecting the tightness is not explicitly stated in the product description.

The gutter connector has an integrated rubber profile in the groove, which ensures the required tightness. Additional sealant is not necessary with correct installation.

Yes, the type of connection of the system is designed to compensate for thermal changes in length of the gutter system parts. This prevents stress and cracks.

The gutter must have a slope of 2 mm per 1 m in the direction of the nozzle to drain the water correctly. The gutter connector itself is mounted in the already correspondingly inclined gutter and does not directly affect the slope. For a 5-meter-long gutter section, this corresponds, for example, to a height difference of 10 mm.

It is crucial that the seals are correctly positioned in the grooves of the connector and that the limiters are correctly seated on the inner surface. Only in this way does the snap connection guarantee the required tightness.

Yes, for optimal water drainage, the gutter must have a slope of 2mm per meter in the direction of the outlet. This must be observed for the entire gutter system, including the connected sections.

The gutter connector is sealed with a rubber profile that guarantees permanent tightness. This type of connection compensates for thermal length changes of the gutter parts and thus ensures durability.

For a stable installation, the bracket spacing should be 40-50 cm. An incline of 2 mm per meter in the direction of the nozzle is important for water drainage. It is also recommended to install additional gutter brackets near the joints to prevent sagging.

The snap connection allows for easy assembly and disassembly of the gutter parts. Repeated opening and closing is possible with careful handling and regular cleaning of the rubber profiles.

A fine-tooth saw is recommended for cutting the gutter or downpipe. It is important that the cut is made at a right angle to ensure an optimal fit for the connector.

Yes, the snap connection with an integrated rubber profile is specifically designed to compensate for thermal length changes of the gutter system parts. This ensures a permanently tight and flexible connection even with temperature fluctuations.

Yes, this gutter connector is an integral part of the BRYZA GUTTER SYSTEM. It is a complete, coordinated drainage system.

This gutter connector is specially designed for the BRYZA 125 gutter system. It only fits gutters with a diameter of 125mm.

The gutter connector is specially designed for the BRYZA 125 gutter system with a 125mm semi-circular cross-section. Compatibility with systems from other manufacturers cannot be guaranteed, as fit and sealing systems may vary.

No special tools are required to connect this element. Assembly is done by simply sliding it onto the gutter flange and then snapping the rear part into place.

Yes, the assembly is easy thanks to the snap connection and the detailed procedure, which is also easy for DIYers without special knowledge. It is important to observe the installation instructions, such as the correct inclination.
