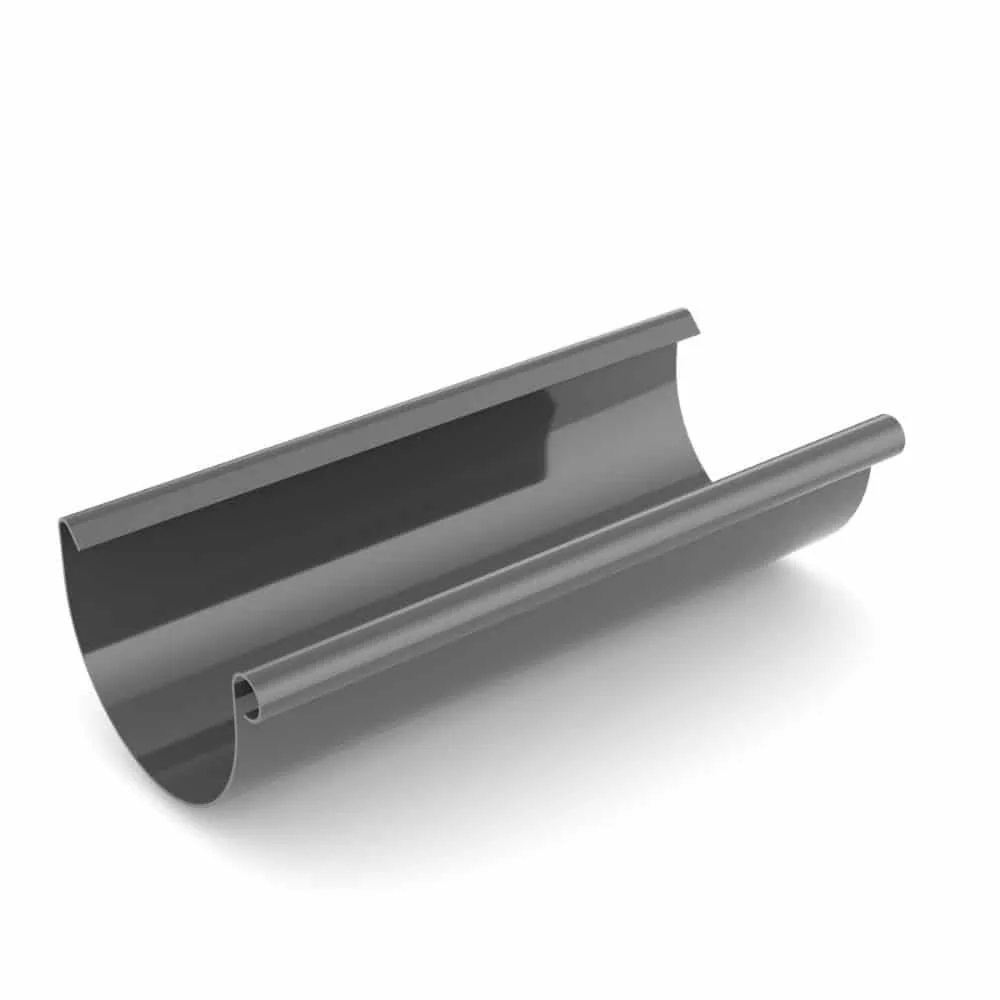

2m Graphite Rain Gutter - System 100 Roofing Drainage

The BRYZA gutter system is known for its easy assembly and snap connections. The included instructions describe the steps in detail, so even less experienced users can handle the installation.

Yes, the BRYZA gutter system is designed as a complete replacement system. Pay attention to the appropriate dimensions (system 125 for larger roofs) and the availability of all the necessary fittings for your needs.

A bracket spacing of 40-50 cm is optimal for the stability and load-bearing capacity of the gutter system and is recommended by the manufacturer. The brackets are mounted directly on the roof battens or rafters.

The gutters are connected to the pipe fittings by means of a snap connection. A rubber profile in the groove of the fitting seals the connection.

System 125 with a gutter width of 125mm and 90mm downpipes is ideal for single-family and multi-family homes, apartment blocks, as well as larger storage, commercial and industrial buildings. It is designed for larger volumes of water.

For a 10-meter-long roof edge, you need 5 of these 2m gutters. Plan additionally gutter connectors and possibly waste. (roughly calculated: 10m / 2m = 5 gutters)

For system 125, you can use PVC gutter holders or adjustable metal gutter irons. Both types of holders are attached directly to the roof battens or rafters.

The tightness of the snap connections is ensured by a rubber profile located in the groove of the pipe fittings. The downpipe connections are made without additional sealing by means of sleeves.

Yes, the adjustable metal gutter irons offer more flexibility during installation and can compensate for unevenness on the roof. They are a good alternative to the fixed PVC holders.

Yes, the 125 system is specially designed for larger objects such as warehouse buildings, commercial and industrial buildings as well as apartment blocks. The gutter has a semi-circular cross-section of 125 mm.

A downpipe with a diameter of 90 mm is provided for the System 125. Corresponding connectors (125/90mm) and downpipes are available in the system.

This specific product (gutter 2m, system 125) is available in brown (RAL 8017). The BRYZA gutter system is also generally available in graphite (RAL 7021), but must then be ordered separately.

The gutter is in brown (RAL 8017). This color is a common standard in roof drainage and harmonizes with many common brown or red roof tiles.

The plastic material of the RINNENSYSTEM BRYZA is designed for year-round outdoor use and can withstand winter temperatures. The type of connection compensates for thermal length changes.

Yes, the snap connection of the RINNENSYSTEM BRYZA is designed to compensate for thermal length changes of the gutter parts. This ensures tightness even with temperature fluctuations.

The snap connection of the gutters with the pipe fittings is sealed by a rubber profile in the groove and ensures the necessary tightness. Additional sealants are not required.

Yes, for correct water drainage, an inclination of 2mm per 1m of gutter length in the direction of the nozzle is required. This ensures optimal water flow and avoids standing water.

Yes, for an optimal fit and seal, the gutter or downpipe should be cut at a right angle with a fine-tooth saw. This is important for the connections.

A standard fine-tooth saw is sufficient for cutting the gutters and downpipes. Pay attention to a straight cut at a right angle to ensure clean transitions.

Yes, for System 125 all necessary fittings such as corner pieces (inside/outside 90°, adjustable), gutter connectors, nozzles (125/90mm) and downpipes (90mm diameter) are available separately.

The recommended distance between the gutter holders is 40-50 cm. This ensures the necessary stability and safe water drainage of the gutter.

T-pieces are available for downpipes with both 63mm and 90mm diameters. So you can select the right piece for your downpipe system.

Yes, adjustable corner pieces for the 125 system are available for inside and outside. These allow angle adjustments from 120° to 145°.

The System 125 is intended for single-family and multi-family homes as well as apartment blocks. It is designed for larger roof areas and water volumes, so it fits well with terraced houses.

A fine-tooth saw is recommended for shortening gutters and downpipes. Make sure to make the cuts at right angles.

System 125 is specially designed for single-family and multi-family homes, apartment blocks, as well as larger storage, public, commercial and industrial buildings. It offers the appropriate capacity for larger roof areas.

The system 125 is designed as standard for downpipes with a diameter of 90mm. The smaller systems 75 and 100 use downpipes with a diameter of 63mm or 90 or 63mm.

The special snap connections with rubber profiles are designed to compensate for thermal changes in length. This prevents the system from warping.

The gutters are sealed by a snap connection with a rubber profile in the groove of the fittings. This ensures the required tightness and compensates for thermal length changes.

You can mount both PVC and steel brackets directly to roof battens or rafters. Metal gutter irons are also available.
