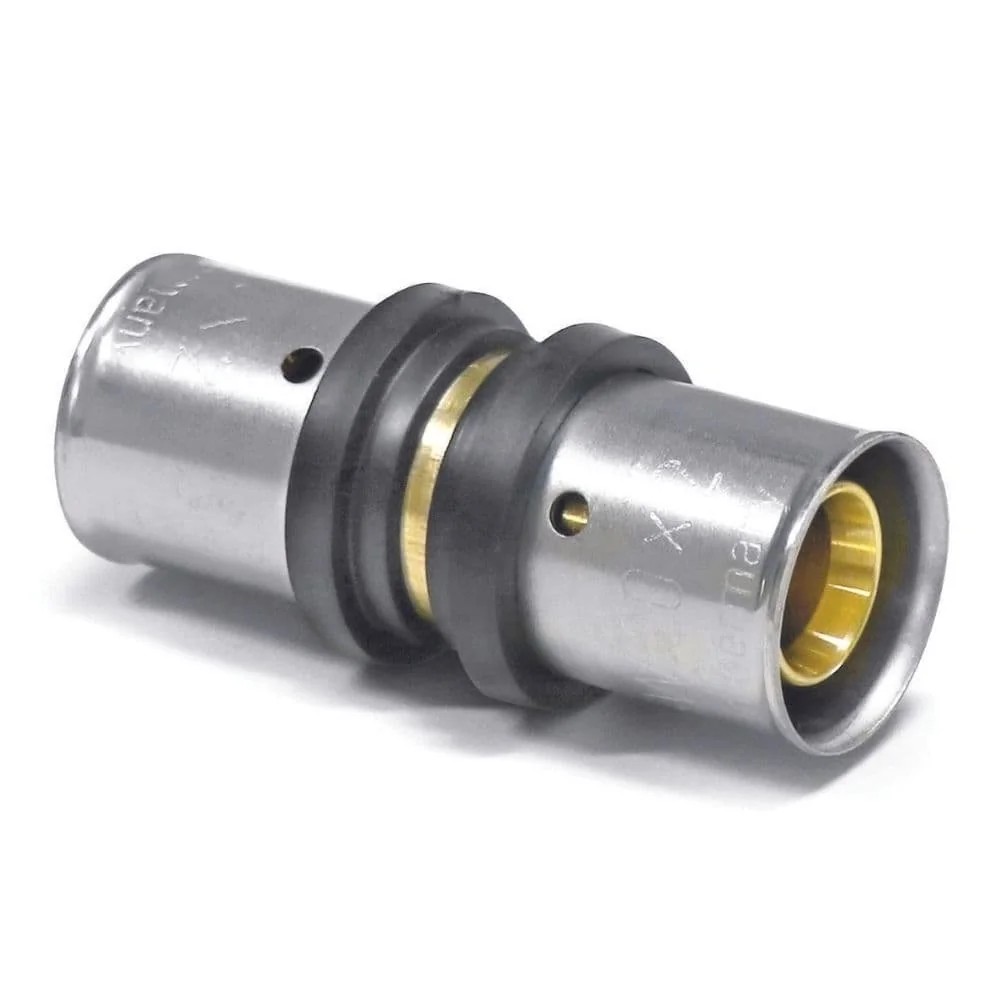

16mm Press Fitting Coupling - Reliable Pipe Connector, DVGW Certified

Yes, through void-free injection and the two O-rings, the penetration of atmospheric oxygen is prevented. The system is thus suitable for oxygen-sensitive applications.

No, the press fitting is leaky if not pressed correctly and must be properly pressed to ensure tightness. The integrated inspection windows help check the correct insertion depth.

Yes, the press fitting is designed for a continuous load capacity of 50 years at 10 bar and 70° C. It is unrestricted suitable for drinking water installations and DVGW-certified.

The press fitting is DVGW-certified for multilayer and copper pipes. However, a compliant and fully secure connection is only guaranteed with system-approved components (fittings and pipes that have been tested together). The use of multilayer pipes from other manufacturers is at your own risk.

The press fitting is certified for two pipe systems: multilayer composite and DVGW-certified copper pipes. You can use it for both types.

Yes, the press fitting coupling is DVGW-certified and complies with the UBA positive list, making it fully suitable for drinking water installations.

Yes, the pressfitting coupling is ideal for both drinking water installations and heating systems. It is permanently loadable up to 10 bar at 70° C and can be operated briefly up to 95° C.

Yes, the flow-optimized contour ensures free passage and thus virtually no flow noise.

Yes, the press fitting is fully suitable for underfloor heating systems. It permanently withstands 10 bar and 70°C for a lifespan of 50 years.

Yes, the pressfitting coupling 16x2 is Multikontur-compatible and can be pressed with both TH and U-press jaws.

Yes, the press fitting coupling 16x2 is multicontour (TH + U) compatible. You can use your press tool with U-contour for it.

The coupling is suitable for multilayer composite and DVGW-certified copper pipes. The use of pipes that are not system-compliant is at your own risk and may affect the tightness.

Yes, the fitting system is DVGW-certified for multilayer and copper pipes. You can therefore also connect it to existing copper pipes.

The correct insertion depth of the pipe is visible through the three inspection windows in the stainless steel press sleeve. This provides an added safety for the user.

The modern contour of the fitting is flow-optimized and has excellent ZETA values. This leads to a free passage and can positively influence the water pressure in the system.

Yes, the integrated plastic guide ring (black) allows secure compression even in tight positions. The pipe fits precisely in the press jaw, making installation easier.

No, the pipe being pushed out before the pressing process is prevented by the integrated guide ring. This ensures precise and secure pressing.

Yes, the connector is suitable for hot water. It permanently withstands 70°C at 10 bar, the maximum temperature is 95°C.

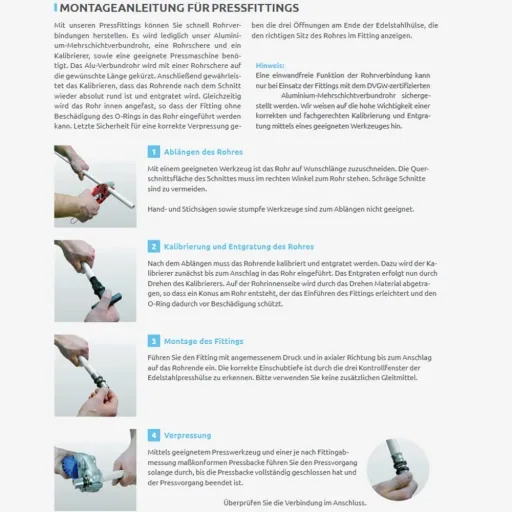

Yes, a calibrator is absolutely necessary for the installation. The pipe end must be calibrated and deburred after cutting to ensure a secure connection.

Yes, the void-free compression with two O-rings prevents the ingress of air oxygen. This increases safety and the lifespan of the connection.

The listed coupling is dimensioned for 20x2 tubes. For a 26x3 tube, you will need a corresponding coupling of this size. For this, a 25 pressing jaw is necessary and compatible with TH + U.

The system is unpressurized and leaks. You will notice a missing pressurization immediately, which increases the safety of the installation.

The coupling has a modern, flow-optimized contour. This ensures a free passage and virtually no flow noise.

The coupling is suitable for 80°C water temperature, as the maximum operating temperature is 95°C. The long-term durability is designed for 70°C for over 50 years.

Yes, the coupling is DVGW-certified and suitable for both pipe systems: multilayer composite pipes and copper pipes. This makes the fitting system flexible.

Yes, the coupling's maximum operating temperature is 95°C. It is suitable for short-term thermal disinfection.

After cutting the pipe, the pipe end must be calibrated and deburred with a calibrator. This is essential for a safe and tight connection.

Yes, the coupling is designed for long-term durability at 10 bar and 70°C for over 50 years. The maximum operating temperature is 95°C.

Yes, the integrated plastic guide ring allows secure pressing even in tight spots. This increases flexibility during installation.

Using the coupling with composite pipes other than those sold by Boni-Shop is at your own risk. A compliant and secure connection is only guaranteed with system-approved components that have been tested together.
