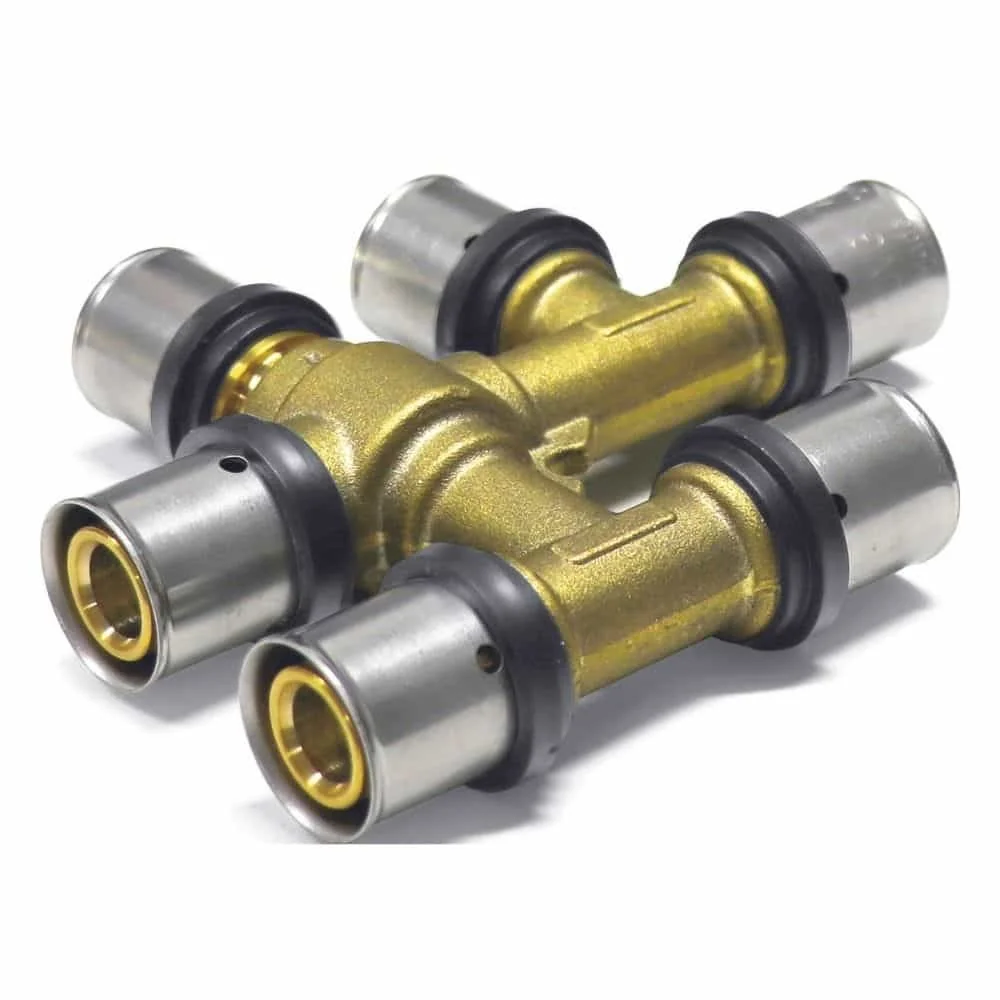

Press fitting crossover-free T-piece 16 x 2 - 16 x 2 - 16 x 2

Yes, the two O-rings in combination with the cavity-free pressed connection prevent the ingress of air oxygen. This minimizes the risk of corrosion in the pipe.

The T-piece leaks without crimping, which serves as a safety feature. An integrated inspection window shows the correct insertion depth of the pipe, and two O-rings ensure a secure, gap-free connection.

Yes, the plastic guide ring allows for safe crimping even in tight spaces. It also prevents the pipe from being pushed out before the crimping process and ensures a void-free connection.

The T-piece is flow-optimized and designed for free passage. It produces virtually no flow noise.

Yes, the T-piece is suitable for underfloor heating. It can withstand a constant load of up to 70° C and a maximum operating temperature of 95° C, which meets the requirements of underfloor heating.

Yes, the press fitting is fully suitable for drinking water. It is low in lead or lead-free, DVGW-certified, and complies with the UBA positive list.

The crossover-free design allows for optimized pipe routing and avoids collisions or overly tight bends. This significantly simplifies installation, especially in tight or complex laying situations.

A compliant connection exists only with system-approved components (fittings and pipes that have been tested together). The use of other composite pipes than those sold by Boni-Shop is at your own risk.

The compression sleeve of the fitting is made of stainless steel, the T-piece itself is made of special brass. Both materials are corrosion-resistant and suitable for use in damp environments.

Yes, this T-piece is multi-profile compatible and can be processed with both TH and U-press jaws. This applies to the dimension 16 x 2.0 mm.

The T-piece is safe for continuous use up to 70° C and for short-term use up to 95° C. Check if these temperatures are sufficient for your heating system.

Yes, the T-piece is designed for a durability of 50 years. This information refers to an operating temperature of 70° C and a pressure of 10 bar.

Yes, after cutting the pipe, it is mandatory to process the pipe end with a calibrator. This deburrs and calibrates the pipe, which is essential for a safe and tight connection.

Yes, on this non-crossing T-piece, all three outlets have the same dimension of 16 x 2 mm. This is indicated in the product name as 16 x 2 - 16 x 2 - 16 x 2.

No, after cutting, the pipe end must absolutely be calibrated and deburred with a calibrator. This is essential for a safe and tight connection.

The fitting system is designed for two pipe systems: multilayer composite and copper pipes. Both must be DVGW-certified.

Yes, the T-piece is fully suitable for drinking water. It is DVGW-certified and complies with the UBA positive list.

The T-piece is designed for a permanent load capacity of 10 bar at 70° C. This specification is valid for a period of 50 years.

The flow-optimized, intersection-free design of the fitting ensures free passage and the best ZETA values. This minimizes pressure losses and ensures optimal flow rate in the piping system.

The integrated inspection window in the stainless steel sleeve serves to check the correct insertion depth of the pipe. It provides the user with added safety for a reliable connection.

Yes, the plastic guide ring ensures secure compression even in tight positions. Additionally, the flow-optimized contour prevents flow noise.

Yes, the T-piece is multi-profile compatible and fully compatible with TH and U press jaws. This applies without restrictions to the dimensions 16x2.0 mm and 20x2.0 mm of this fitting.

For a compliant and safe connection, you should use approved system components (fittings and pipes that have been tested together). The use of other composite pipes is at your own risk.

The long-term durability of the fitting is specified at 10 bar / 70° C / 50 years. This lifespan is realistic when following the installation guidelines and normal household use and is DVGW-tested.

The flow-optimized contour of the T-piece was developed to create almost no flow noise. The free passage and best ZETA values significantly minimize noise generation.

The T-piece is designed for continuous operation up to 70°C and can withstand a maximum operating temperature of 95°C. It is therefore also suitable for heating installations.

Yes, the T-piece is designed for long-term durability of 10 bar at 70°C for 50 years. The components are low in lead or lead-free.

Yes, the new modern contour is flow-optimized and allows free passage. This results in the best ZETA values and the largest inner diameter.

Yes, for a clean and precise cut of the pipe, the use of a suitable pipe cutter is required. This is an important step for a correct and secure connection.

The integrated inspection window in the stainless steel sleeve serves as an added safety feature for the user. It is designed to visually check the correct insertion depth, for which sufficient lighting is recommended.
