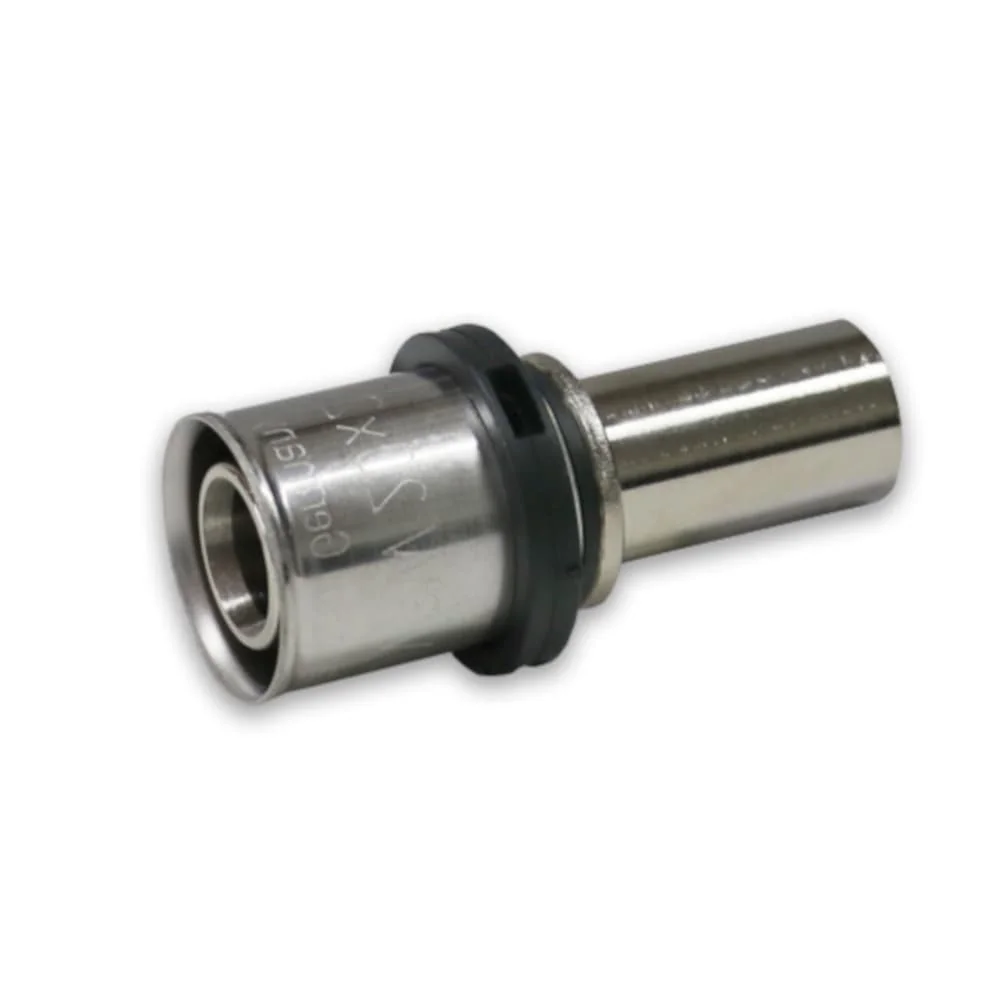

20mm to 15mm Press Fitting, Copper Pipe Connector

Yes, the integrated plastic guide ring allows secure fastening even in difficult positions. This makes installation easier in tight spaces.

Yes, the press fitting is designed for a maximum operating temperature of 95° C. Long-term durability is 70° C for over 50 years.

For a quick and secure pipe connection, a suitable press tool with a TH press profile is absolutely necessary. Other profiles do not ensure standardized or secure pressing.

Yes, the Pressfitting is part of a system for two pipe systems. The 20x15 mm dimension is intended for connecting a 20 mm multilayer pipe to a 15 mm copper pipe.

If the old water pipe is made of copper, this press fitting can be used, as it is suitable for copper pipes. Pay attention to the correct dimensions and the condition of the old pipe.

Yes, the press fitting is DVGW and KIWA certified and fully suitable for drinking water installations. It complies with the UBA positive list and meets the requirements of the Drinking Water Ordinance.

Using composite pipes other than those sold by Boni-Shop is at your own risk. A compliant connection is only possible with system-approved components that have been tested together.

Thanks to the guide ring and precise shape, the pipe is prevented from being pushed out before the pressing process. This ensures the highest safety in the connection.

Yes, the void-free compression with two O-rings effectively prevents the intrusion of atmospheric oxygen into the pipe connection. This contributes to longevity.

The system is leaky when unpressed, which is an important safety feature. A leak test should only be performed after properly pressing all fittings.

Yes, the pressfitting is suitable for underfloor heating. It can withstand a continuous load of 10 bar at 70° C for 50 years and can handle a maximum operating temperature of 95° C.

DVGW is the technical standard for gas and water. The press fitting is DVGW-certified and complies with the UBA positive list, making it fully suitable for drinking water in Germany.

Yes, the press fitting is specifically designed for both pipe systems. It has been DVGW-certified as a fitting system for multilayer composite and copper pipes.

The connector has a flow-optimized contour with free passage. This results in virtually no flow noises.

Yes, the press fitting is low in lead or lead-free, DVGW-certified, and complies with the UBA positive list. It meets all requirements of the Drinking Water Ordinance and can therefore be used without concerns for new drinking water installations.

The press fitting has a service life of 50 years at 10 bar and 70° C. The materials used and the design are intended for longevity.

Yes, the press fitting is designed for multilayer composite and copper pipes and is DVGW certified. Please use only system-approved components for a compliant connection.

Yes, the integrated inspection window in the stainless steel press sleeve is designed as a safety plus. It allows visual verification of the correct insertion depth of the pipe up to the stop, even in constrained positions.

The system is designed for two pipe systems: multilayer composite and copper pipes. It is DVGW-certified for both pipe types.

The press fitting is flow-optimized, ensuring free passage and virtually no flow noise. It has the best ZETA values.

This transition press fitting is specifically designed for connecting pipes with an outer diameter of 20 mm to 18 mm. It can be used for both multilayer composite and copper pipes.

This press fitting is designed for two pipe systems: multilayer and copper pipes. Both systems must be DVGW-certified.

Yes, this press fitting is multicontour-compatible and can be processed with both TH and U-press jaws. This applies to the dimension 16 x 2.0 mm.

The system is designed as 'leak-free without pressing'. This means an incomplete or unpressed connection would be immediately noticeable.

The correct insertion depth can be checked through the three integrated inspection windows of the stainless steel press sleeve. Simply insert the tube until it stops.

No, a plastic guide ring prevents the pipe from being pushed out before the pressing process. This ensures the pipe fits precisely in the press jaw and allows for secure pressing.

No, the system is optimized for flow and designed for free passage. This results in almost no flow noise.

Yes, all components are low in lead or lead-free and DVGW-certified. They comply with the UBA positive list and meet the requirements of the Drinking Water Ordinance.

Yes, the BONI-P62PFUEK2018NI is designed for a continuous operating pressure of up to 10 bar. This is usually sufficient for the water installation in higher floors of old buildings. Its durability is 50 years at 70°C.

Yes, the integrated inspection window on the stainless steel sleeve helps even in tight spots to check the correct insertion depth of the pipe. The plastic guide ring additionally ensures a secure compression.
