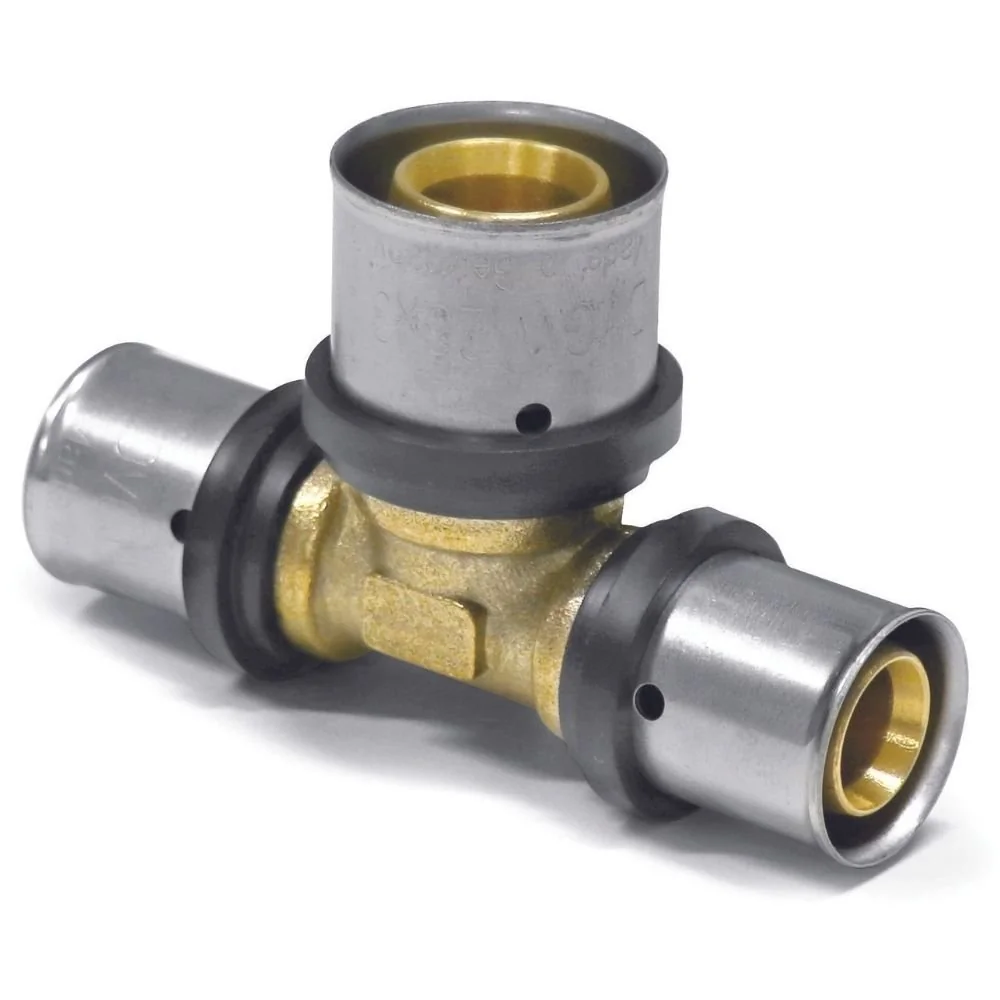

Press Fitting T-Stück 26x3 - 32x3 - 26x3

Yes, this press fitting is Multikontur-compatible (TH + U). It can be easily pressed with U press jaws, as it is in the size range up to 32 x 3.0 mm.

Yes, after cutting the pipe end must be calibrated and deburred with a calibrator. This ensures a correct and tight connection.

Yes, the T-piece is uncompressed and leaky. This serves as a clear safety feature and helps to immediately detect installation errors.

For the dimension 20x2 mm, the T-piece Multikontur (TH + U) is compatible, so you can use both TH and U pressing jaws. A suitable pressing tool is required.

The fitting is made of special brass and the press sleeve of stainless steel, ensuring high material quality. The T-piece has a long-term load capacity of 10 bar at 70° C for over 50 years.

Yes, the fitting system is DVGW-certified and can be used for both multi-layer composite and copper pipes.

Press fittings offer a quick and secure pipe connection without open flames or complex soldering skills. This significantly reduces installation time.

The correct insertion depth of the pipe is visible through the three integrated inspection windows in the stainless steel press sleeve. Insert the pipe until it stops.

All components of this fitting are low in lead or lead-free. They are DVGW-certified, comply with the UBA positive list, and meet the requirements of the Drinking Water Ordinance.

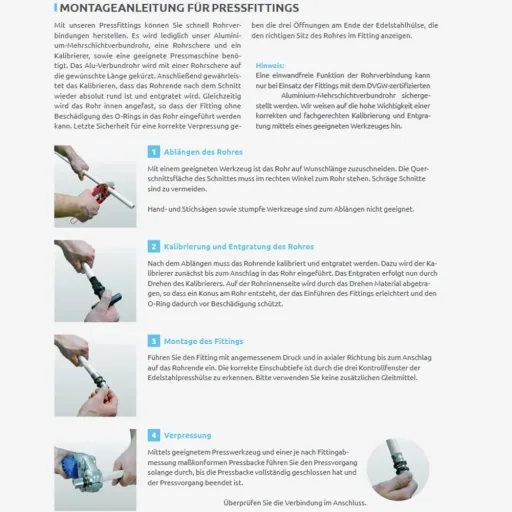

The assembly is simple: cut the pipe, calibrate it, insert it until it stops, and press. The inspection windows in the stainless steel sleeve help you check the correct insertion depth.

The modern contour of the T-piece is flow-optimized for free passage. This results in virtually no flow noises and the best ZETA values, minimizing pressure loss.

The T-piece is DVGW-certified as a system press fitting for multilayer composite and copper pipes. The use of other composite pipes is at your own risk, as a compliant connection is only guaranteed with system-approved components.

Yes, the integrated plastic guide ring of the T-piece is specially designed for safe compressions even in confined positions. This facilitates installation in tight areas.

Yes, this T-piece (BONI-P62T201616) is specifically designed for this application. It allows reducing a 20x2 mm main line to two 16x2 mm branches.

Yes, the T-piece is DVGW-certified, complies with the UBA positive list, and is low-lead/lead-free. It is therefore fully suitable for drinking water installations.

No, the press fitting is unpressurized and leaky. A secure and lasting connection is only achieved through the complete pressing process.

No, the cavity-free compression combined with the two O-rings effectively prevents air oxygen from entering the system.

Yes, the fitting's durability is designed for 50 years at up to 10 bar pressure and 70°C operating temperature.

Yes, the fitting is permanently loadable up to 10 bar at 70°C and can withstand peak temperatures up to 95°C temporarily. It is therefore ideal for hot water pipes.

No, the T-piece is designed for a continuous load capacity of up to 10 bar. The maximum operating temperature is 95° C, ensuring high safety.

Yes, the system allows for quick and secure pipe connection. The new contour is flow-optimized for free passage and low flow noise.

Yes, this fitting system is DVGW-certified and suitable for multilayer composite pipes as well as copper pipes.

No, the T-piece is flow-optimized and has excellent ZETA values. This means maximum flow area and virtually no flow noise or significant pressure loss.

Yes, the T-piece BONI-P62T201620 is multi-contour compatible and fully compatible with TH and U press jaws. This applies to the dimension 20 x 2.0 mm, which this T-piece uses.

The T-piece is designed for continuous use at 70° C. The maximum operating temperature is 95° C, so 80° C is safe for short periods.

The center outlet of the T-piece is designed for pipes with dimensions of 16 x 2.0 mm. It is suitable for multilayer composite and copper pipes.

Using other connected pipes is at your own risk. Compliance with regulations is only ensured with system-approved components.

You need a suitable press tool with TH or U press profile. This T-piece is fully compatible with both profiles.

Yes, the outer connections of the T-piece are designed for pipes of the dimension 20 x 2.0 mm. It is suitable for multilayer and copper pipes.

Yes, the T-piece is designed for long-term durability of 10 bar / 70° C for 50 years. Adhering to these parameters ensures a long lifespan.
