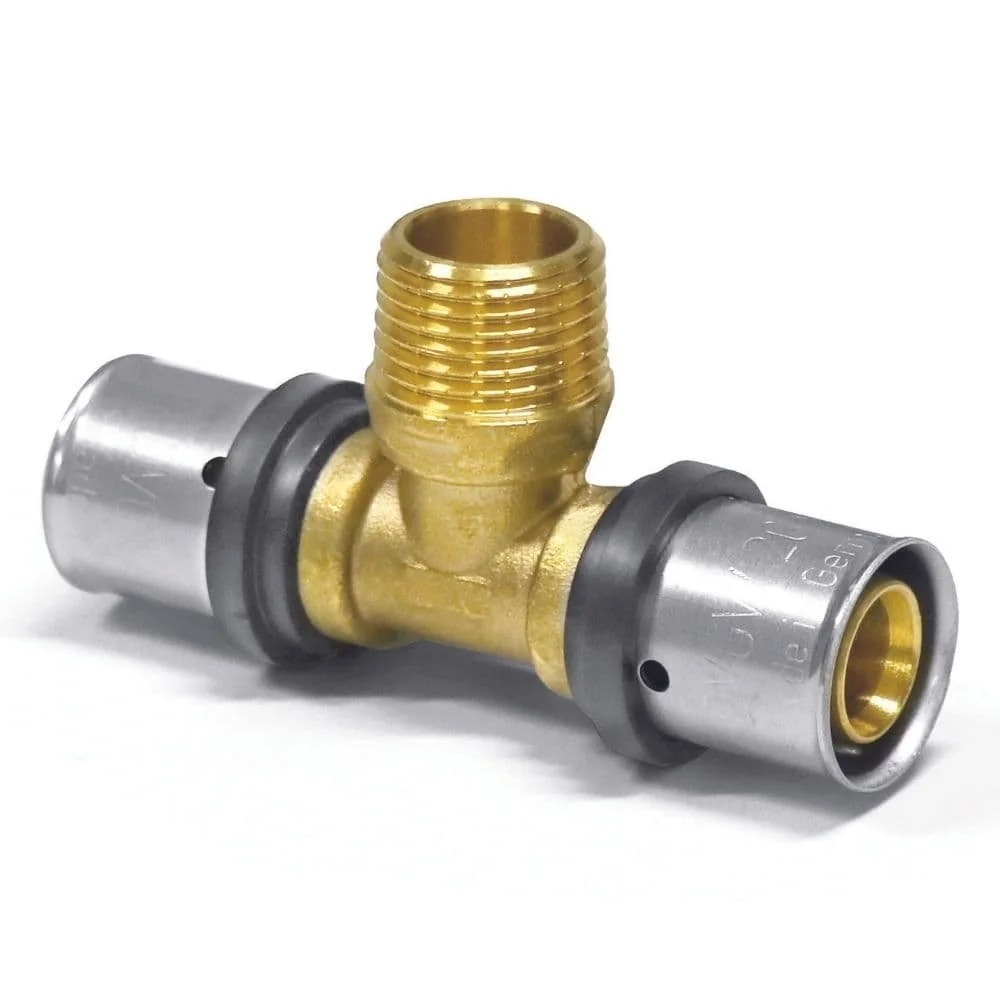

32mm Press Fitting T-Stück 1 1/4" AG - Secure Plumbing

The correct insertion depth of the pipe is recognized through the three integrated inspection windows in the stainless steel compression sleeve of the fitting. This increases safety during installation.

Yes, the Pressfitting T-piece 32 x 3 has a 3/4" internal thread outlet (IG). It is suitable for such applications as an outdoor faucet.

The new modern contour is flow-optimized and provides a clear passage. This results in the best ZETA values and a larger inner diameter, which improves flow.

Thanks to the two O-rings and the void-free compression, the ingress of air oxygen is excluded. For installation, you will need press fittings, aluminum composite pipe, a pipe cutter, a calibrator, and a press tool.

This T-piece is designed for pipes of the dimension 16 x 2.0 mm. It is compatible with this size Multikontur (TH + U).

No, the guide ring prevents the pipe from being pushed out before the pressing process. This ensures precise and secure positioning in the press jaw.

Yes, the fitting is designed for a continuous load of 10 bar and 70° C for over 50 years. The maximum operating temperature is 95° C.

No, the T-piece is unpressed and not tight. A secure and tight connection is only achieved through the pressing process with a suitable pressing tool.

Yes, the T-piece is fully suitable for drinking water and is manufactured with low or no lead content. It complies with the UBA positive list and is DVGW-certified according to the drinking water ordinance.

The fitting is designed for a continuous load capacity of 10 bar at 70°C for 50 years. The maximum operating temperature is 95°C.

A compliant and secure connection with press systems is only possible with approved components (fittings and pipes that have been tested together). The use of other composite pipes is at your own risk.

The fitting is designed for a durability of 50 years at 10 bar and 70°C. The void-free compression and two O-rings ensure the highest safety and longevity.

The new modern contour of the fitting is flow-optimized and ensures free passage. This minimizes noise in the system.

Yes, the T-piece is manufactured as a "Made in Germany" product. This stands for high quality standards in production.

Yes, the fitting is DVGW-certified for fitting systems with multilayer and copper pipes. It can therefore be connected to an existing copper line, provided it meets the system requirements.

Yes, the T-piece is fully suitable for drinking water installations. It complies with DVGW DW-8501BS5049 and the UBA positive list.

"Uncompressed leaky" means that the connection is not tight before the actual compression of the sleeve. Safe and lasting tightness is achieved only through a professional compression process.

Assembly is simplified by the guide ring and control window. You’ll find an illustrated assembly guide in the product photos that explains the steps precisely.

Yes, this fitting system is DVGW certified for both multilayer composite and copper pipes. It allows the connection of both pipe systems.

Yes, the integrated plastic guide ring ensures secure connections even in difficult positions and tight corners. This ensures a precise fit in the press jaw.

The T-piece is multicontour (TH + U) compatible for the dimension 16x2.0 mm. You need a suitable crimping tool with TH or U crimp contour.

Yes, this fitting system is designed for two pipe systems: multilayer composite and copper pipes. Both are DVGW-certified.

The T-piece is made of special brass and the compression sleeve is made of stainless steel. It is designed for a long-term durability of 50 years.

Yes, the T-piece is fully suitable for drinking water. It is DVGW-certified (DW-8501BS5049), complies with the UBA positive list, and is low in lead or lead-free.

No, due to the void-free sealing and the two O-rings, the ingress of atmospheric oxygen is prevented. This protects the system from corrosion.

The correct insertion depth is visible through the three inspection windows of the stainless steel press sleeve. The pipe must be inserted until it stops.

Yes, after cutting, the pipe end must be calibrated and deburred with a calibrator. This is essential for a safe and tight connection.

Yes, the press fitting is leaky if not pressed. A secure and tight connection is achieved only by the correct pressing process using suitable pressing pliers.

Yes, the press fitting is ideal for permanent use in hot water circulation pipes. It is durable up to 70°C and 10 bar and meets the requirements of the drinking water ordinance.

Yes, this T-piece is Multikontur-compatible. It works with U-press jaws up to the dimension 32 x 3.0 mm.
