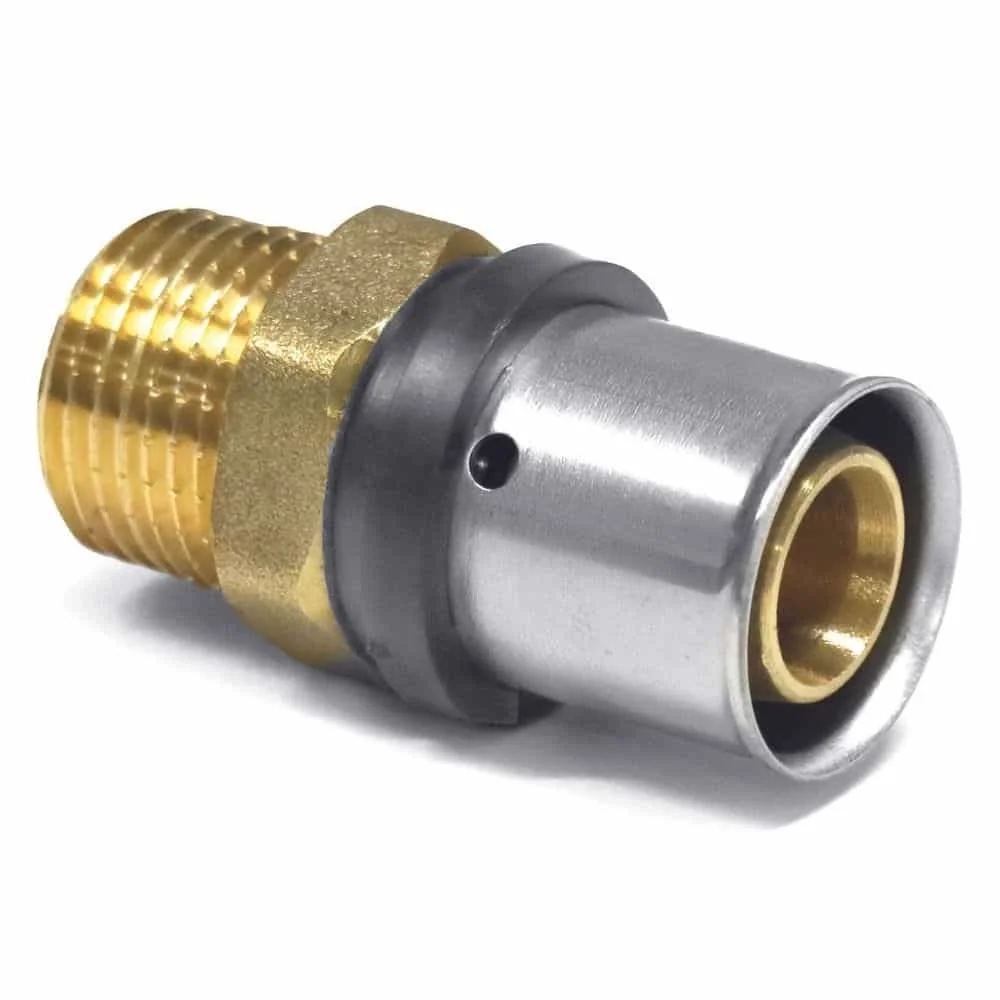

16mm x 1/2" Press Fitting Coupling - Secure Plumbing Fittings for Composite Pipe

Yes, the coupling is fully suitable for drinking water and DVGW-certified. All components are low in lead or lead-free and comply with the UBA positive list.

No, through the void-free compression and two O-rings, the ingress of air oxygen is effectively prevented. This ensures the highest connection safety.

The press fitting is made of special brass and stainless steel, which provides good corrosion resistance. For use in the ground, however, proper wrapping and protection of the pipe system are crucial.

Yes, the press fitting is a system for multilayer composite and copper pipes, both DVGW-certified.

You need a suitable press tool with TH or U press contour that is compatible with the dimension 16 x 2.0 mm. The fitting is multicontour compatible for TH and U press jaws.

Yes, the fitting is designed for a maximum operating temperature of 95°C. The long-term durability is 70°C for over 50 years.

The fitting system is suitable for both pipe systems. It has been DVGW-certified for both multilayer composite and copper pipes.

Yes, the Pressfitting coupling is also suitable for heating systems. It is designed for a continuous load of 10 bar at 70°C and a maximum operating temperature of 95°C.

Yes, the coupling is fully compatible with TH and U press jaws. This applies to the dimension 16 x 2,0 mm, as with this coupling.

Yes, this fitting is fully suitable for drinking water installations. It is DVGW-certified and complies with the UBA positive list, also low in lead or lead-free.

Yes, the fitting has a 1/2 inch external thread (AG), which is the standard size for connecting to many faucets and fixtures. This allows you to connect composite pipes to existing installations.

A leaking press connection should not simply be pressed again, as the O-rings may be damaged. The indication "leaking before pressing" means that tightness is only guaranteed with correct initial pressing.

The correct insertion depth is recognized by the three integrated inspection windows of the stainless steel crimping sleeve. Before insertion, the pipe end must be deburred and calibrated with a calibrator.

A regulation-compliant and system-tested connection exists only when using Boni-Shop composite pipes. The use of other pipes is at your own risk.

The coupling is primarily DVGW-certified for drinking water and heating systems. Use for rainwater utilization systems is technically possible, but outside the explicit certification.

Yes, this fitting offers a multicontour (TH + U) and is fully compatible with both TH and U-press jaws for the dimension 16 x 2.0 mm.

Yes, the integrated plastic guide ring ensures secure compression even in tight or so-called forced positions. This significantly increases installation safety.

Thanks to the new modern and aerodynamically optimized contour with free passage, flow noise is almost completely avoided. It achieves the best ZETA values for high flow rate.

The correct insertion depth of the pipe can be easily checked via the integrated inspection windows in the stainless steel press sleeve. This is an important safety plus for the user.

This press-fit coupling is designed for 16 x 2.0 mm composite pipes and is compatible. You will need a corresponding 16mm pressing head with a TH or U profile.

Yes, the fitting is low-lead or lead-free. All components are DVGW-certified, comply with the UBA positive list, and meet the requirements of the Drinking Water Ordinance.

The plastic guide ring ensures secure pressing even in tight positions. The integrated inspection window in the stainless steel sleeve helps you check the correct insertion depth of the pipe.

No, thanks to the flow-optimized contour and free passage, there is practically no flow noise to be expected. The best ZETA values also ensure the maximum possible passage area and thus minimal pressure loss.

The fitting is flow-optimized and has a free passage, ensuring minimal noise and excellent ZETA values. It minimally affects the flow.

The correct insertion depth is visible through the three integrated inspection windows in the stainless steel press sleeve. This provides additional safety during installation.

No, for the dimension 16 x 2.0 mm, the Multikontur coupling (TH + U) is compatible. So you can also use a U press jaw.

Yes, the BONI-P62UA1605 coupling is fully compatible with TH and U-press jaws. You can use both contours for a secure press.

The pipe end must be calibrated and deburred after cutting. Insert the pipe all the way into the fitting; the correct depth is recognized by the inspection windows of the stainless steel press sleeve.

The coupling is designed for a long-term durability of 50 years. Moreover, it is a high-quality product that is "Made in Germany".

Yes, for a quick and secure pipe connection you only need press fittings, aluminum composite pipe, pipe cutter, calibrator, and a suitable press tool. An illustrated installation guide is included with the photos.
