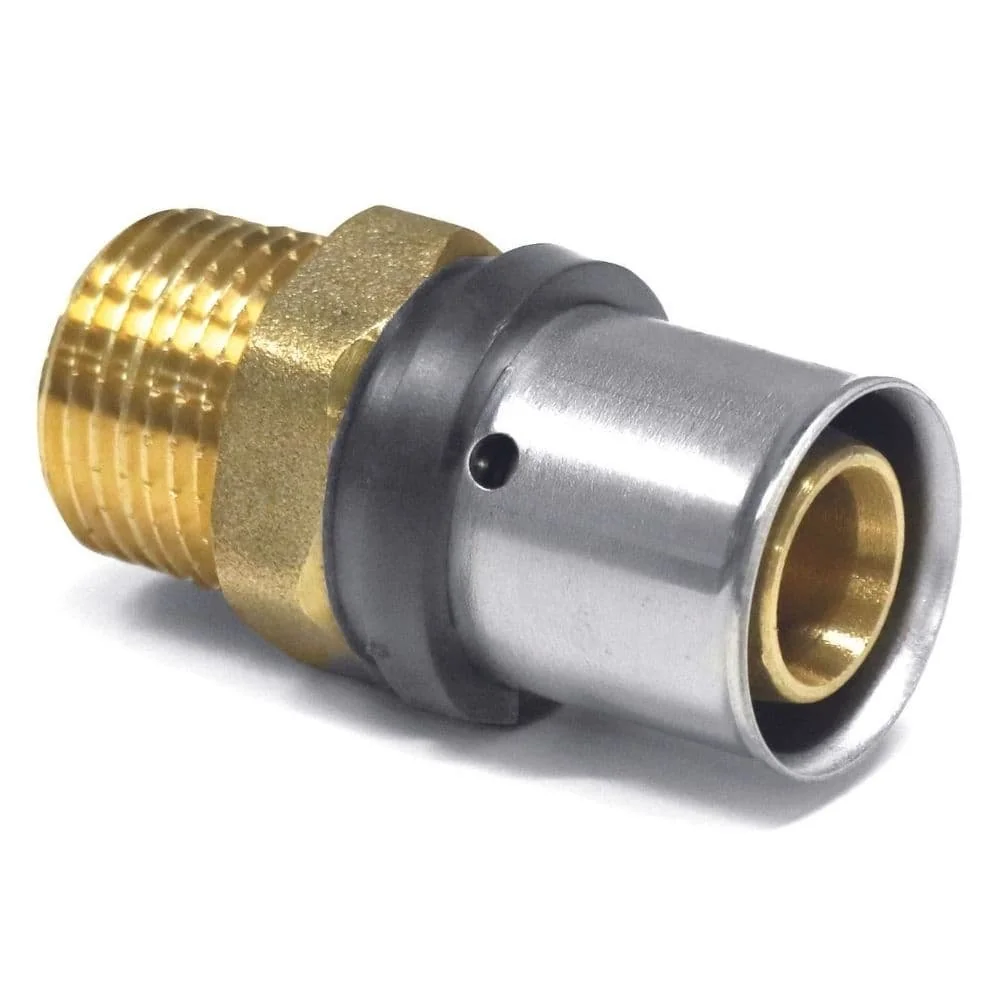

Pressfitting Coupling 20 x 2 - 1/2" Male Thread

The fitting is flow-optimized and has a free passage, ensuring minimal noise and excellent ZETA values. It minimally affects the flow.

Yes, this press fitting is specially designed for multilayer composite pipes and copper pipes, DVGW-certified. It is suitable for both pipe systems.

Yes, the fitting is designed for a long-term durability of 50 years. It meets the requirements of the Drinking Water Ordinance and is DVGW-certified.

Yes, through void-free compression with two O-rings, the ingress of oxygen is effectively prevented. This contributes to the longevity of the installation.

For safe compression, the pipe must be pressure-free and free of water. The fitting is uncompressed and leaky and must be compressed before use.

The fitting is designed for pipes with a dimension of 20 x 2 mm. The external thread connection (AG) has a size of 1/2 inch.

The fitting has an integrated inspection window in the stainless steel sleeve. This allows you to see the correct insertion depth of the pipe.

This fitting is multicontour-compatible and fully compatible with both TH and U press jaws up to the dimension 32 x 3.0 mm.

Yes, this fitting is suitable for applications with high temperatures. The maximum operating temperature is 95°C, and the long-term durability is 70°C for 50 years.

For a quick and secure connection, you need a pipe cutter, a calibrator, and a suitable pressing tool with TH or U press profile.

The coupling has a continuous load capacity of 10 bar at 70° C for over 50 years. The maximum operating temperature is even 95° C.

Yes, the integrated plastic guide ring allows secure pressing even in difficult positions and tight niches. This makes installation considerably easier.

Yes, the fitting is fully suitable for drinking water and DVGW-certified (DW-8501BS5049). It also complies with the UBA positive list.

A compliant connection exists only with system-approved components, i.e., fittings and pipes that have been tested together. The use of other composite pipes is at your own risk.

Yes, due to the aerodynamically optimized contour and free passage, the fitting creates almost no flow noise. This makes it inconspicuous in noise-sensitive environments.

No, through a guide ring and the precise contour, the tube is prevented from being pushed out before the pressing process. This ensures the highest safety.

The fitting is low in lead or lead-free. All components are DVGW-certified and comply with the UBA positive list, making it safe for drinking water.

Yes, the fitting system is DVGW-certified for both multilayer composite and copper pipes.

The fitting is not tight if not pressed. This is a safety feature that allows immediate recognition of missing pressing.

Yes, the fitting is designed for continuous pressure resistance of 10 bar.

Yes, the fitting is low-lead or lead-free. All components are DVGW-certified, comply with the UBA positive list, and meet the requirements of the Drinking Water Ordinance.

The plastic guide ring ensures secure pressing even in tight positions. The integrated inspection window in the stainless steel sleeve helps you check the correct insertion depth of the pipe.

No, thanks to the flow-optimized contour and free passage, there is practically no flow noise to be expected. The best ZETA values also ensure the maximum possible passage area and thus minimal pressure loss.

The correct insertion depth is visible through the three integrated inspection windows in the stainless steel press sleeve. This provides additional safety during installation.

No, for the dimension 16 x 2.0 mm, the Multikontur coupling (TH + U) is compatible. So you can also use a U press jaw.

Yes, the coupling is fully suitable for drinking water and DVGW-certified. All components are low in lead or lead-free and comply with the UBA positive list.

Yes, the BONI-P62UA1605 coupling is fully compatible with TH and U-press jaws. You can use both contours for a secure press.

The pipe end must be calibrated and deburred after cutting. Insert the pipe all the way into the fitting; the correct depth is recognized by the inspection windows of the stainless steel press sleeve.

The coupling is designed for a long-term durability of 50 years. Moreover, it is a high-quality product that is "Made in Germany".

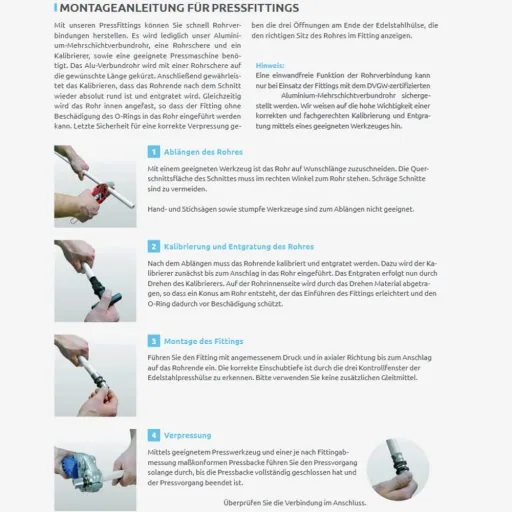

Yes, for a quick and secure pipe connection you only need press fittings, aluminum composite pipe, pipe cutter, calibrator, and a suitable press tool. An illustrated installation guide is included with the photos.
