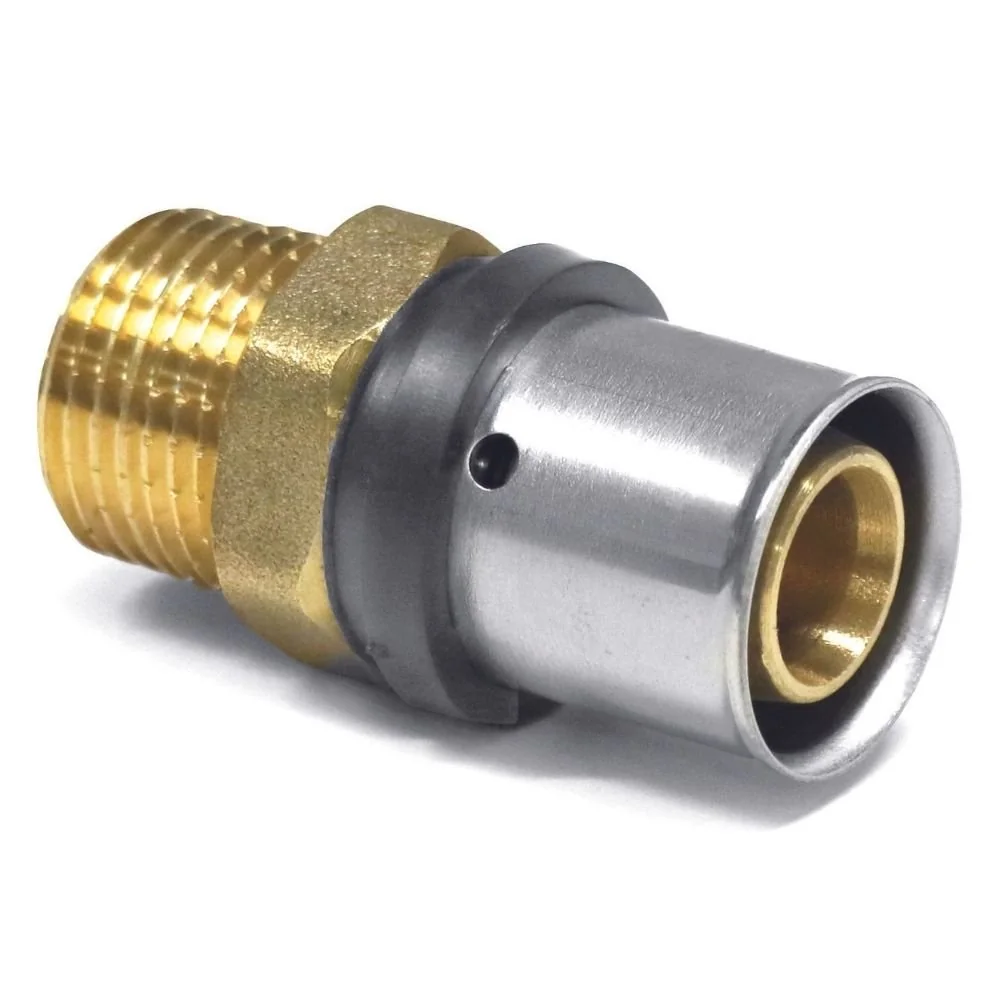

32mm Press Fitting, 1 Inch Plumbing Connector, DVGW Certified

The correct insertion depth is visible through the three integrated inspection windows in the stainless steel press sleeve. This provides additional safety during installation.

Yes, the press fitting is suitable for two pipe systems: multi-layer composite and copper pipes. Both must be DVGW certified.

It is recommended to use only system-approved components (fittings and pipes that have been tested together). The use of other composite pipes than those from Boni-Shop is at your own risk.

The press fitting has a flow-optimized contour with free passage. This results in virtually no flow noise, and the ZETA values are optimal.

Yes, the coupling is designed for a durability of 50 years at 10 bar and 70°C. It complies with the UBA positive list and is DVGW-certified for drinking water.

No, thanks to the guide ring and precise contour, the pipe is prevented from slipping out before the actual pressing process. This ensures the highest safety.

Yes, there is an integrated inspection window in the stainless steel sleeve of the fitting. It shows the correct insertion depth of the pipe.

Yes, the connector is suitable for heating systems. It withstands a maximum operating temperature of 95°C and is oxygen-tight due to the void-free crimping.

The press fitting is DVGW-certified for multilayer and copper pipes. However, using pipes from other manufacturers is at your own risk, as a compliant connection is only guaranteed with system-approved components.

The connector is made of special brass and the compression sleeve is of stainless steel. All components are lead-free and DVGW-certified, ensuring high resistance and longevity in drinking water installations.

Yes, the modern, flow-optimized contour ensures free passage and the best ZETA values. This results in a larger flow area and low flow noise.

After cutting, the pipe end must be calibrated and deburred with a calibrator. This ensures a correct and secure connection.

Yes, the connector is designed for multilayer and copper pipes with a diameter of 32 mm. It has a 1 inch external thread (AG) for connecting to matching counterparts.

This press fitting is designed for long-term durability at 70°C for 50 years. The maximum operating temperature is 95°C.

Yes, the integrated plastic guide ring (black) enables safe pressing even in tight spaces. This ensures precise positioning in the press jaw.

After cutting, the pipe end must absolutely be calibrated and deburred with a calibrator. This is essential for a correct, void-free, and tight connection.

Yes, this system press fitting is DVGW-certified for multilayer composite pipes and copper pipes. Please note that a compliant connection can only be made with system-approved components.

Yes, all components of the fitting are low in lead or lead-free. They are DVGW-certified and comply with the UBA positive list and the requirements of the Drinking Water Ordinance.

This coupling in the dimension 32 x 3.0 mm is multi-contour compatible. You can use both TH and U pressing jaws.

Yes, due to the void-free compression and the two O-rings, the ingress of air oxygen is prevented. This ensures the highest safety and tightness.

Yes, the fitting is low-lead or lead-free. All components are DVGW-certified, comply with the UBA positive list, and meet the requirements of the Drinking Water Ordinance.

The plastic guide ring ensures secure pressing even in tight positions. The integrated inspection window in the stainless steel sleeve helps you check the correct insertion depth of the pipe.

No, thanks to the flow-optimized contour and free passage, there is practically no flow noise to be expected. The best ZETA values also ensure the maximum possible passage area and thus minimal pressure loss.

The fitting is flow-optimized and has a free passage, ensuring minimal noise and excellent ZETA values. It minimally affects the flow.

No, for the dimension 16 x 2.0 mm, the Multikontur coupling (TH + U) is compatible. So you can also use a U press jaw.

Yes, the coupling is fully suitable for drinking water and DVGW-certified. All components are low in lead or lead-free and comply with the UBA positive list.

Yes, the BONI-P62UA1605 coupling is fully compatible with TH and U-press jaws. You can use both contours for a secure press.

The pipe end must be calibrated and deburred after cutting. Insert the pipe all the way into the fitting; the correct depth is recognized by the inspection windows of the stainless steel press sleeve.

The coupling is designed for a long-term durability of 50 years. Moreover, it is a high-quality product that is "Made in Germany".

Yes, for a quick and secure pipe connection you only need press fittings, aluminum composite pipe, pipe cutter, calibrator, and a suitable press tool. An illustrated installation guide is included with the photos.
