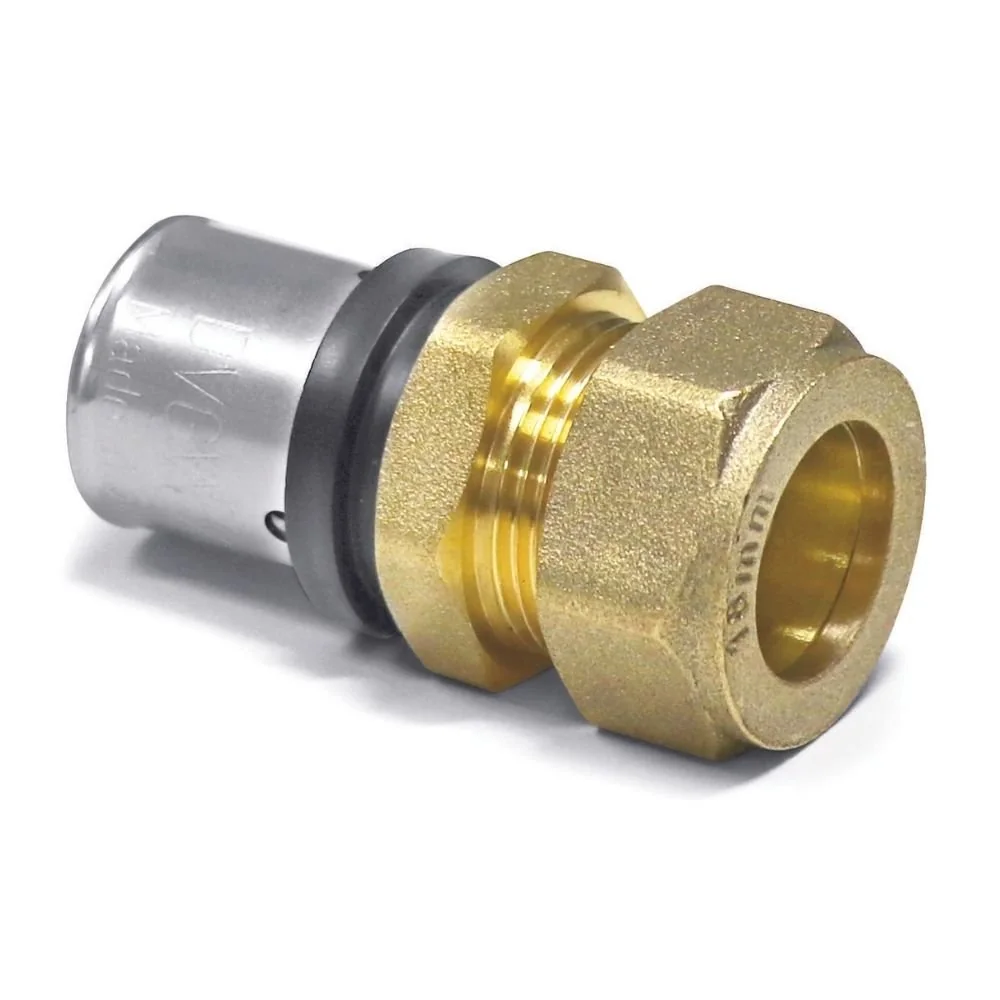

Copper Pipe Press Fitting 16 x 2 - 15 mm Connector, DVGW Certified

Yes, this press fitting is multicontour-compatible and can be processed with both TH and U-press jaws. This applies to the dimension 16 x 2.0 mm.

The correct insertion depth of the pipe is recognized by the three inspection windows in the stainless steel press sleeve. This gives you an extra safety during installation.

Yes, the connector is designed for a maximum operating temperature of 95°C. The long-term durability is 70°C for over 50 years at 10 bar.

The connector is designed for a maximum operating temperature of 95°C and withstands 10 bar pressure. For solar systems, you should check the specific temperature requirements to ensure suitability.

Yes, the connector is DVGW-certified and complies with the UBA positive list, making it fully suitable for drinking water installations. It meets the requirements of the Drinking Water Ordinance.

A regulation-compliant connection exists only with system-approved components. The use of other composite pipes than those of Boni Shop is at your own risk.

Yes, the press fitting is designed for temperatures up to 95°C. Use at 75°C in the heating return is therefore possible without any issues.

The connector is made of special brass (CU Zn 40 Pb2), and the compression sleeve is made of stainless steel. The long-term durability is specified at 50 years, indicating high longevity and corrosion resistance.

The connector for 16 x 2.0 mm is multi-contour compatible and can be processed with both TH and U press jaws.

Yes, the modern contour of the fitting is optimized for flow and ensures a free passage. This virtually eliminates flow noises.

Yes, for the 26x3.0 mm dimension, using a 25 crimping die is correct and compatible. The connector is designed for TH and U crimping dies.

Yes, this press fitting is specifically designed for transitioning from multilayer composite pipes (16x2 mm) to copper pipes (15 mm) and is DVGW-certified. It is suitable for both pipe systems.

Yes, an integrated guide ring ensures the pipe cannot slip out before pressing and sits precisely in the press jaw. This guarantees a void-free connection with the highest safety.

No, this item is a press fitting for connecting copper and composite pipes in plumbing installations. It is not intended for gardening or weed removal.

Yes, the installation is well manageable for DIYers. You only need a pipe cutter, a calibrator, and a suitable press tool. An illustrated guide is included in the product photos.

The product description does not mention specific frost resistance of the fitting. Pipes should generally be protected from frost to avoid damage to the entire installation.

The connection has a long-term durability of 50 years at a pressure of 10 bar and an operating temperature of 70°C. The maximum permissible pressure is 10 bar.

The connector is suitable for a maximum operating temperature of 95°C. For a long-term durability of 50 years, it is designed for temperatures up to 70°C. The two O-rings and the void-free crimping are designed for high tightness even with temperature fluctuations.

Yes, this is an intended safety feature. The connector is leaky before pressing to make an incorrectly pressed connection immediately noticeable.

Yes, the integrated plastic guide ring allows for secure press fittings even in tight spaces. The inspection window also helps check the correct insertion depth.

Yes, the integrated plastic guide ring allows secure fastening even in difficult positions. This makes installation easier in tight spaces.

This transition press fitting is specifically designed for connecting pipes with an outer diameter of 20 mm to 18 mm. It can be used for both multilayer composite and copper pipes.

This press fitting is designed for two pipe systems: multilayer and copper pipes. Both systems must be DVGW-certified.

Yes, the press fitting is designed for a maximum operating temperature of 95° C. Long-term durability is 70° C for over 50 years.

For a quick and secure pipe connection, a suitable press tool with a TH press profile is absolutely necessary. Other profiles do not ensure standardized or secure pressing.

Yes, the Pressfitting is part of a system for two pipe systems. The 20x15 mm dimension is intended for connecting a 20 mm multilayer pipe to a 15 mm copper pipe.

If the old water pipe is made of copper, this press fitting can be used, as it is suitable for copper pipes. Pay attention to the correct dimensions and the condition of the old pipe.

Yes, the press fitting is DVGW and KIWA certified and fully suitable for drinking water installations. It complies with the UBA positive list and meets the requirements of the Drinking Water Ordinance.

Using composite pipes other than those sold by Boni-Shop is at your own risk. A compliant connection is only possible with system-approved components that have been tested together.

Thanks to the guide ring and precise shape, the pipe is prevented from being pushed out before the pressing process. This ensures the highest safety in the connection.
