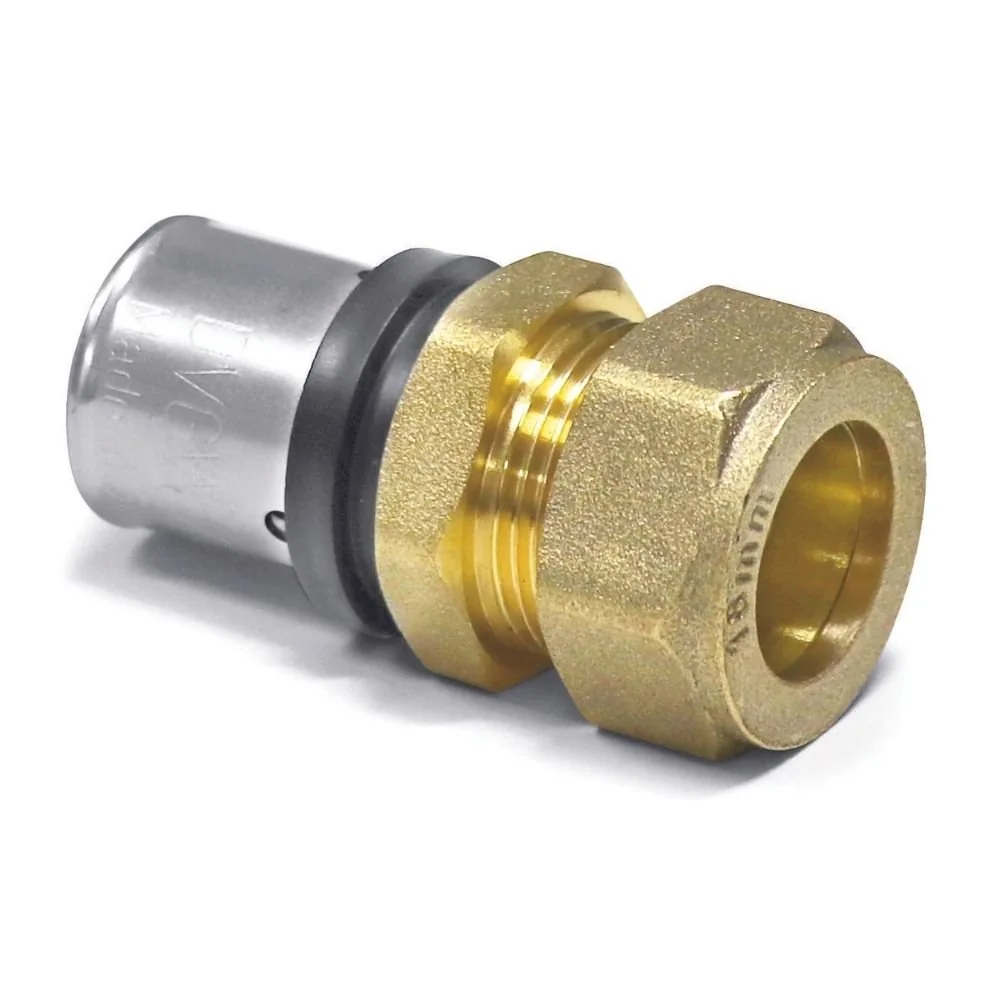

Press Fitting Copper Pipe Connector 26mm, Made in Germany

This press fitting is designed for two pipe systems: multilayer and copper pipes. Both systems must be DVGW-certified.

The stated load capacity of 10 bar and 70° C is designed for 50 years and is based on the product's DVGW certifications.

Yes, the plastic guide ring is specifically designed to ensure secure and precise positioning in the press jaw. This is particularly advantageous in tight spaces or in difficult situations.

A compliant and safe connection is only guaranteed with system-approved components, i.e., fittings and pipes that have been tested together. Using composite pipes other than those from Boni-Shop is at your own risk.

The press sleeve of the fitting is made of stainless steel, known for its high corrosion resistance. The composite pipe system press fitting itself is made of special brass.

No, the fitting's long-term durability is designed for up to 70°C over 50 years. A maximum operating temperature of 95°C is possible, but not intended for permanent operation over long periods.

Yes, the plastic guide ring ensures a secure and precise pressing, even in tight installation situations like wall niches. It prevents the pipe from being pushed out before the pressing process.

Yes, the press fitting is specifically designed as a transition for connecting multilayer composite pipes with copper pipes. Both pipe systems are DVGW-certified compatible.

Thanks to the flow-optimized contour and free passage, there are practically no flow noises. The best ZETA values also ensure optimal flow.

Through two O-rings and the void-free compression, the ingress of air oxygen is prevented. The durability under continuous load up to 70°C and maximum 95°C makes it also suitable for heating systems.

The correct insertion depth of the pipe is clearly visible through the integrated inspection windows in the stainless steel press sleeve.

Yes, all components are DVGW-certified, comply with the UBA positive list, and meet the requirements of the Drinking Water Ordinance as low-lead or lead-free.

No, the press sleeve of the fitting is made of stainless steel. This material offers high corrosion resistance and prevents rust formation.

Yes, the transition is fully compatible with TH and U pressing jaws up to 32 x 3.0 mm. For the dimension 26 x 3.0 mm, a 25 mm pressing jaw fits, as stated in the product data.

Yes, this transition fitting is specifically designed to connect multilayer composite pipes (26x3mm) with copper pipes (28mm).

The press fitting has a multicontour (TH + U) and is fully compatible with TH and U pressing jaws up to the dimension 32 x 3.0 mm. You can use your existing pressing jaws as long as they correspond to the TH or U contour.

Yes, the press fitting is DVGW-certified and fully suitable for drinking water. The long-term durability is 10 bar and 70° C for over 50 years.

The fitting's long-term durability is designed for 70° C for over 50 years. The maximum operating temperature is 95° C, so 80° C in normal operation is not a problem.

The product is 'Made in Germany,' which stands for high manufacturing standards and quality controls. This is supported by the DVGW certification and compliance with the UBA positive list.

The 'uncompressed leak' property ensures that an improperly compressed connection is immediately noticed during the leak test before commissioning. This serves safety and minimizes errors in the installation process.

Yes, the integrated plastic guide ring allows secure fastening even in difficult positions. This makes installation easier in tight spaces.

This transition press fitting is specifically designed for connecting pipes with an outer diameter of 20 mm to 18 mm. It can be used for both multilayer composite and copper pipes.

Yes, this press fitting is multicontour-compatible and can be processed with both TH and U-press jaws. This applies to the dimension 16 x 2.0 mm.

Yes, the press fitting is designed for a maximum operating temperature of 95° C. Long-term durability is 70° C for over 50 years.

For a quick and secure pipe connection, a suitable press tool with a TH press profile is absolutely necessary. Other profiles do not ensure standardized or secure pressing.

Yes, the Pressfitting is part of a system for two pipe systems. The 20x15 mm dimension is intended for connecting a 20 mm multilayer pipe to a 15 mm copper pipe.

If the old water pipe is made of copper, this press fitting can be used, as it is suitable for copper pipes. Pay attention to the correct dimensions and the condition of the old pipe.

Yes, the press fitting is DVGW and KIWA certified and fully suitable for drinking water installations. It complies with the UBA positive list and meets the requirements of the Drinking Water Ordinance.

Using composite pipes other than those sold by Boni-Shop is at your own risk. A compliant connection is only possible with system-approved components that have been tested together.

Thanks to the guide ring and precise shape, the pipe is prevented from being pushed out before the pressing process. This ensures the highest safety in the connection.
