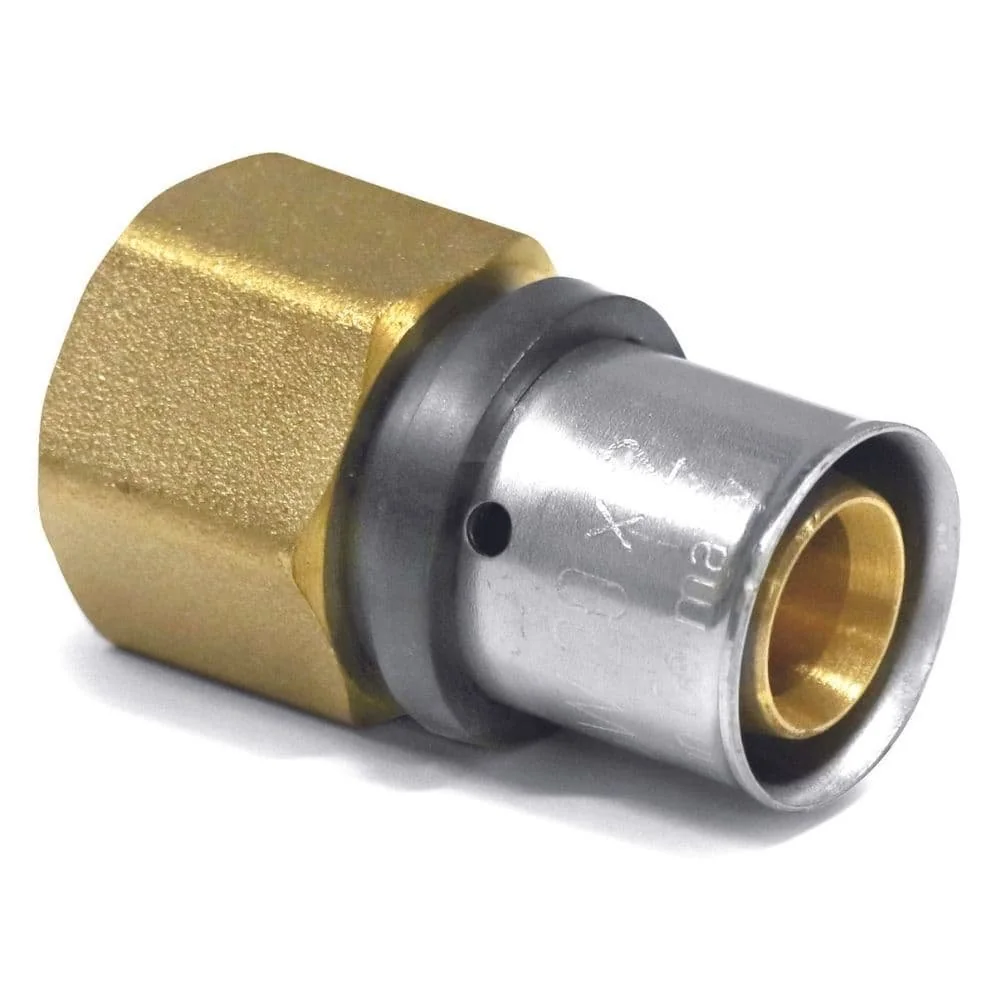

Pressfitting Coupling 26 x 3 - 3/4" IG

The plastic guide ring ensures secure pressing even in tight positions. The integrated inspection window in the stainless steel sleeve helps you check the correct insertion depth of the pipe.

Yes, the fitting is made with low lead or lead-free and all components are DVGW-certified. It complies with the UBA positive list and meets the requirements of the Drinking Water Ordinance, which ensures safety for drinking water.

The fitting offers continuous load capacity of 10 bar at 70° C for over 50 years. The maximum operating temperature is 95° C.

The coupling is equipped with a plastic guide ring and a control window for the insertion depth, which simplifies installation for users. With the right tools and careful adherence to the instructions, self-installation is possible. However, pay attention to the system compatibility guidelines.

Yes, the fitting is designed for a durability of 50 years. It is made of special brass and the press sleeve is made of stainless steel, which ensures longevity.

This fitting system is DVGW-certified for multi-layer composite and copper pipes. You can therefore use it for both pipe systems.

The coupling is primarily DVGW-certified for drinking water installations. Use with antifreeze in heating systems is not explicitly listed in the certifications. We recommend checking the fitting's suitability for such media separately.

Yes, the fitting is durable up to 70° C at 10 bar and has a maximum operating temperature of 95° C. It is therefore also suitable for typical heating circuits.

The coupling is fully suitable for drinking water and complies with DVGW DW-8501BS5049 and the UBA positive list. Suitability for gas lines is not listed in the product description.

A compliant and system-approved connection exists only when using coordinated components (fittings and pipes that have been tested together). The use of other composite pipes is at your own risk.

Yes, the fitting has two o-rings. They ensure that no atmospheric oxygen enters the system, increasing safety.

No, the fitting is not tight if unpressed. A tight connection is only achieved after proper pressing and is then secure.

No, the coupling is flow-optimized for free passage, meaning there are virtually no flow noises. It features excellent ZETA values.

The press fitting is fully suitable for drinking water and DVGW-certified. The special brass used and the stainless steel sleeve are designed for the usual requirements of drinking water installations, including mineral components.

The coupling (26 x 3.0 mm) is fully compatible with TH and U press jaws. Compatibility with M-contour press jaws is not provided for this fitting.

The coupling BONI-P62UI2605 is DVGW-certified and fully suitable for drinking water. Use for rainwater pipes is technically possible but lies outside the certified applications.

Yes, the pipe should be calibrated and deburred after cutting. Then insert it into the fitting until it stops; the correct depth is visible through the inspection window of the stainless steel sleeve.

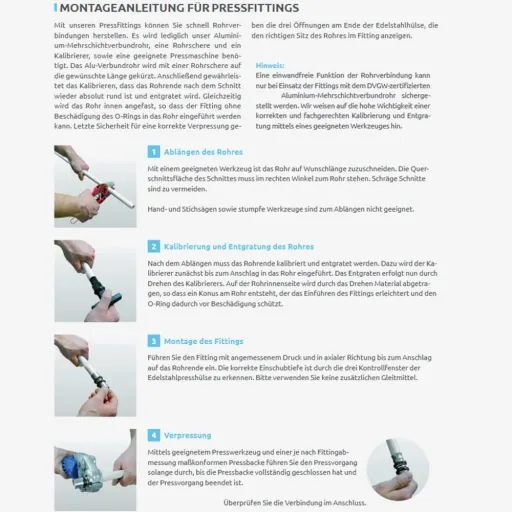

For the safe assembly of the coupling BONI-P62UI2605, you need a pipe cutter, a calibrator, and a suitable press tool with TH or U press profile. An illustrated guide is provided in the product photos.

Yes, for the dimension 26 x 3.0 mm the coupling is compatible with a 25 mm pressing jaw. This is the correct size for a secure press.

The fitting is multi-contour compatible and fully compatible with both TH- and U-Pressbacken. You can use both contours for this fitting.

Yes, the fitting is low-lead or lead-free. All components are DVGW-certified, comply with the UBA positive list, and meet the requirements of the Drinking Water Ordinance.

No, thanks to the flow-optimized contour and free passage, there is practically no flow noise to be expected. The best ZETA values also ensure the maximum possible passage area and thus minimal pressure loss.

The fitting is flow-optimized and has a free passage, ensuring minimal noise and excellent ZETA values. It minimally affects the flow.

The correct insertion depth is visible through the three integrated inspection windows in the stainless steel press sleeve. This provides additional safety during installation.

No, for the dimension 16 x 2.0 mm, the Multikontur coupling (TH + U) is compatible. So you can also use a U press jaw.

Yes, the coupling is fully suitable for drinking water and DVGW-certified. All components are low in lead or lead-free and comply with the UBA positive list.

Yes, the BONI-P62UA1605 coupling is fully compatible with TH and U-press jaws. You can use both contours for a secure press.

The pipe end must be calibrated and deburred after cutting. Insert the pipe all the way into the fitting; the correct depth is recognized by the inspection windows of the stainless steel press sleeve.

The coupling is designed for a long-term durability of 50 years. Moreover, it is a high-quality product that is "Made in Germany".

Yes, for a quick and secure pipe connection you only need press fittings, aluminum composite pipe, pipe cutter, calibrator, and a suitable press tool. An illustrated installation guide is included with the photos.
