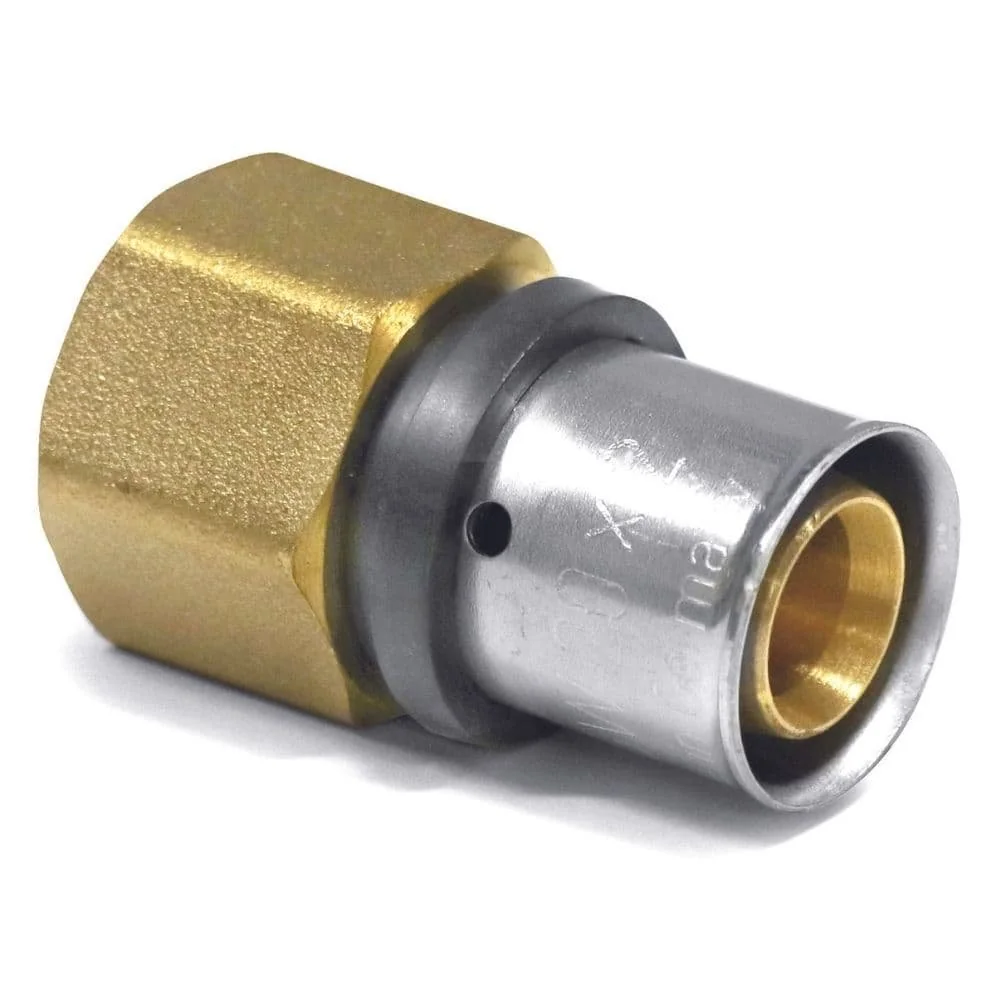

26mm Press Fitting Coupling, 1" Internal Thread, DVGW Certified

No, thanks to the flow-optimized contour and free passage, there is practically no flow noise to be expected. The best ZETA values also ensure the maximum possible passage area and thus minimal pressure loss.

The coupling is DVGW-certified only for drinking water pipelines and is not suitable for gas installations. It withstands a continuous load of 10 bar at 70° C for over 50 years.

The coupling is designed for a permanent load of 10 bar at 70°C. The maximum operating temperature is 95°C.

The press fitting is primarily designed for drinking water installations indoors. There are no specific details regarding UV resistance or direct frost suitability for outdoor use.

The coupling is designed for multilayer composite and copper pipes with a maximum operating temperature of 95°C. Long-term durability of 10 bar at 70°C for 50 years is guaranteed.

The coupling has a multicontour and is fully compatible with TH- and U-press jaws up to the dimension 32 x 3,0 mm. For 26x3,0 mm, a 25 press jaw is required.

The coupling has 2 O-rings. Through void-free compression, the penetration of air oxygen is effectively prevented, supporting the installation's lifespan.

The coupling is DVGW-certified for multilayer composite and copper pipes. However, a compliant connection is only guaranteed when using system-approved components. The use of other composite pipes is at your own risk.

Yes, this fitting system is DVGW-certified for both multilayer composite and copper pipes. The dimension 26x3.0 mm is compatible.

Yes, the coupling is low in lead or lead-free. All components are DVGW-certified, comply with the UBA positive list, and meet the requirements of the Drinking Water Ordinance.

Yes, permanent installation in the wall is possible. The DVGW-certified coupling is designed for a lifespan of 50 years.

The coupling has a long-term durability of 10 bar at 70°C for 50 years. The maximum operating temperature is 95°C, so short-term 75°C is possible.

Due to the flow-optimized modern contour and free passage, there is virtually no flow noise. This ensures the best ZETA values.

Yes, the press fitting is fully suitable for drinking water and DVGW-certified. It complies with the UBA positive list and is low in lead or lead-free, meeting the requirements of the drinking water ordinance. Thus, it can be used in the house without concern.

Yes, the coupling has a 1" internal thread for connection and is designed for composite pipes of the dimension 26 x 3.0 mm. This allows for the desired transition.

Yes, the coupling (BONI-P62UI2606) is multi-profile compatible and fully compatible with TH and U press jaws for the dimension 26 x 3.0 mm (equivalent to a 25 mm press jaw).

Yes, the coupling is DVGW-certified and complies with the UBA positive list, making it fully suitable for drinking water installations. It meets all requirements of the drinking water ordinance.

A compliant and safe connection is only guaranteed with system-approved components. The use of other connected pipes is at the user's own risk.

Yes, the press fitting coupling is fully DVGW-certified for drinking water, but can also be used for other water pipelines like rainwater, as long as the operating conditions are met.

The integrated inspection window for insertion depth is an important safety feature. It ensures the correct positioning of the pipe for a secure and void-free sealing.

Yes, the fitting is low-lead or lead-free. All components are DVGW-certified, comply with the UBA positive list, and meet the requirements of the Drinking Water Ordinance.

The plastic guide ring ensures secure pressing even in tight positions. The integrated inspection window in the stainless steel sleeve helps you check the correct insertion depth of the pipe.

The fitting is flow-optimized and has a free passage, ensuring minimal noise and excellent ZETA values. It minimally affects the flow.

The correct insertion depth is visible through the three integrated inspection windows in the stainless steel press sleeve. This provides additional safety during installation.

No, for the dimension 16 x 2.0 mm, the Multikontur coupling (TH + U) is compatible. So you can also use a U press jaw.

Yes, the coupling is fully suitable for drinking water and DVGW-certified. All components are low in lead or lead-free and comply with the UBA positive list.

Yes, the BONI-P62UA1605 coupling is fully compatible with TH and U-press jaws. You can use both contours for a secure press.

The pipe end must be calibrated and deburred after cutting. Insert the pipe all the way into the fitting; the correct depth is recognized by the inspection windows of the stainless steel press sleeve.

The coupling is designed for a long-term durability of 50 years. Moreover, it is a high-quality product that is "Made in Germany".

Yes, for a quick and secure pipe connection you only need press fittings, aluminum composite pipe, pipe cutter, calibrator, and a suitable press tool. An illustrated installation guide is included with the photos.
