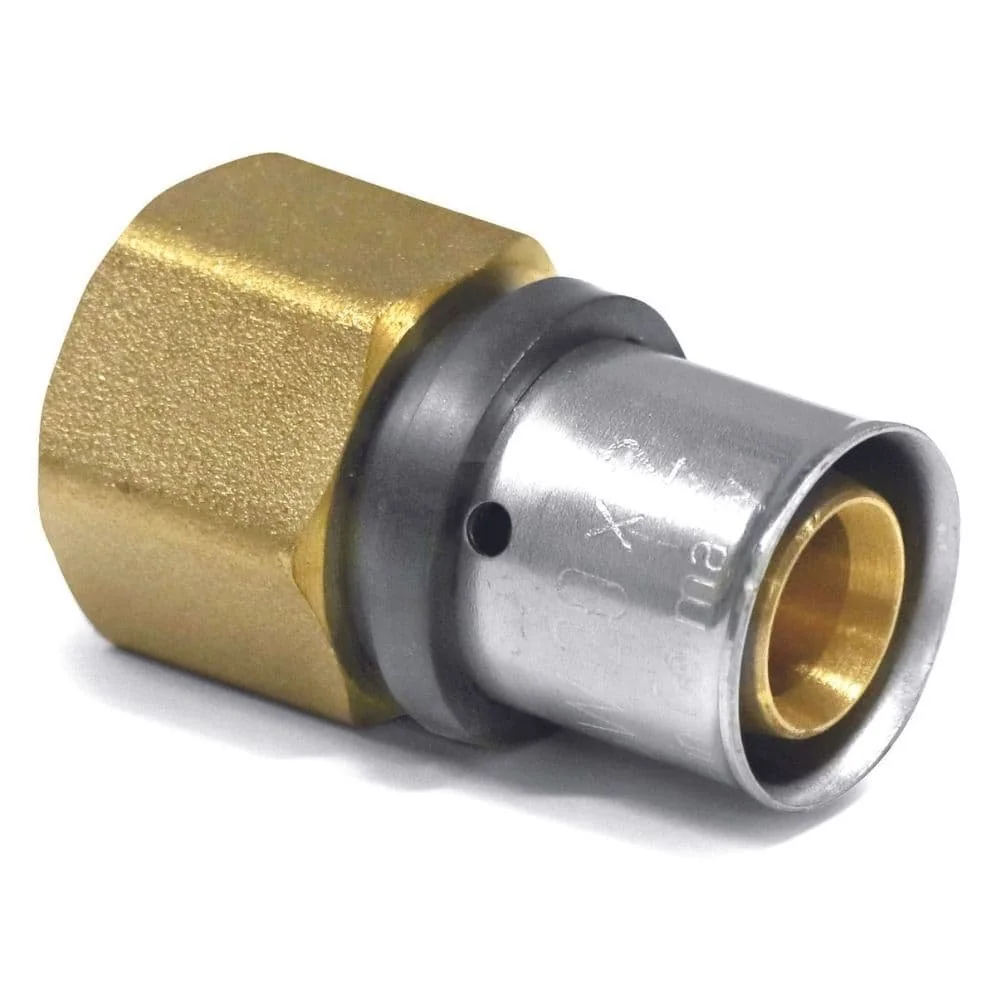

32mm Press Fitting Coupling with Female Thread

Yes, the fitting is low-lead or lead-free. All components are DVGW-certified, comply with the UBA positive list, and meet the requirements of the Drinking Water Ordinance.

The plastic guide ring ensures secure pressing even in tight positions. The integrated inspection window in the stainless steel sleeve helps you check the correct insertion depth of the pipe.

No, thanks to the flow-optimized contour and free passage, there is practically no flow noise to be expected. The best ZETA values also ensure the maximum possible passage area and thus minimal pressure loss.

The fitting is flow-optimized and has a free passage, ensuring minimal noise and excellent ZETA values. It minimally affects the flow.

The correct insertion depth is visible through the three integrated inspection windows in the stainless steel press sleeve. This provides additional safety during installation.

No, for the dimension 16 x 2.0 mm, the Multikontur coupling (TH + U) is compatible. So you can also use a U press jaw.

Yes, the coupling is fully suitable for drinking water and DVGW-certified. All components are low in lead or lead-free and comply with the UBA positive list.

Yes, the BONI-P62UA1605 coupling is fully compatible with TH and U-press jaws. You can use both contours for a secure press.

The pipe end must be calibrated and deburred after cutting. Insert the pipe all the way into the fitting; the correct depth is recognized by the inspection windows of the stainless steel press sleeve.

The coupling is designed for a long-term durability of 50 years. Moreover, it is a high-quality product that is "Made in Germany".

Yes, for a quick and secure pipe connection you only need press fittings, aluminum composite pipe, pipe cutter, calibrator, and a suitable press tool. An illustrated installation guide is included with the photos.

Using other connecting pipes than those sold by Boni-Shop is at your own risk. Compliance with regulations is only guaranteed with system-approved components that have been tested together.

Yes, the fitting system is DVGW-certified for multi-layer composite and copper pipes. It is therefore also suitable for copper installations.

The fitting is suitable for multilayer composite and copper pipes. When inserting, you must push the calibrated pipe all the way in and check the insertion depth in the inspection window.

Yes, the fitting is DVGW-certified, complies with the UBA positive list, and is low-lead or lead-free. The long-term durability is 50 years.

Yes, the integrated guide ring and precise design in the press jaw prevent the pipe from being pushed out before pressing. This ensures a void-free connection and the highest safety.

No, the fitting is unpressed and not sealed. A secure and sealed connection is only provided after complete pressing.

Yes, this coupling (size 20 x 2.0 mm) is multicontour-compatible and fully compatible with both TH and U-press jaws.

The maximum operating temperature of the fitting is 95°C. The long-term durability is designed for 70°C.

The fitting is fully suitable for drinking water. The long-term durability is 10 bar and 70°C for over 50 years.

Yes, the new, modern contour is optimized for flow. This ensures free passage and virtually no flow noise.

The modern, hydrodynamically optimized contour of the fitting ensures a free passage. This results in virtually no flow noise in the pipe.

The correct insertion depth of the pipe can easily be checked via the integrated inspection window in the stainless steel sleeve. This provides additional safety.

Thanks to the plastic guide ring, secure pressings are possible even in forced positions. Additionally, pushing out the pipe before the pressing process is effectively prevented.

The fitting is made of special brass (CU Zn 40 Pb2) and the press sleeve is made of stainless steel. This ensures high durability under long-term load for 50 years and rust resistance.

The coupling 20 x 2.0 mm is designed as a multi-contour and is fully compatible with TH and U press jaws. Your TH press tool is therefore suitable.

Yes, the fitting is designed for continuous load at 70° C for over 50 years. The maximum operating temperature is even 95° C, ensuring high reliability.

Yes, the fitting is made with low lead or lead-free and all components are DVGW-certified. It complies with the UBA positive list and meets the requirements of the Drinking Water Ordinance, which ensures safety for drinking water.

The fitting offers continuous load capacity of 10 bar at 70° C for over 50 years. The maximum operating temperature is 95° C.

The coupling is equipped with a plastic guide ring and a control window for the insertion depth, which simplifies installation for users. With the right tools and careful adherence to the instructions, self-installation is possible. However, pay attention to the system compatibility guidelines.
