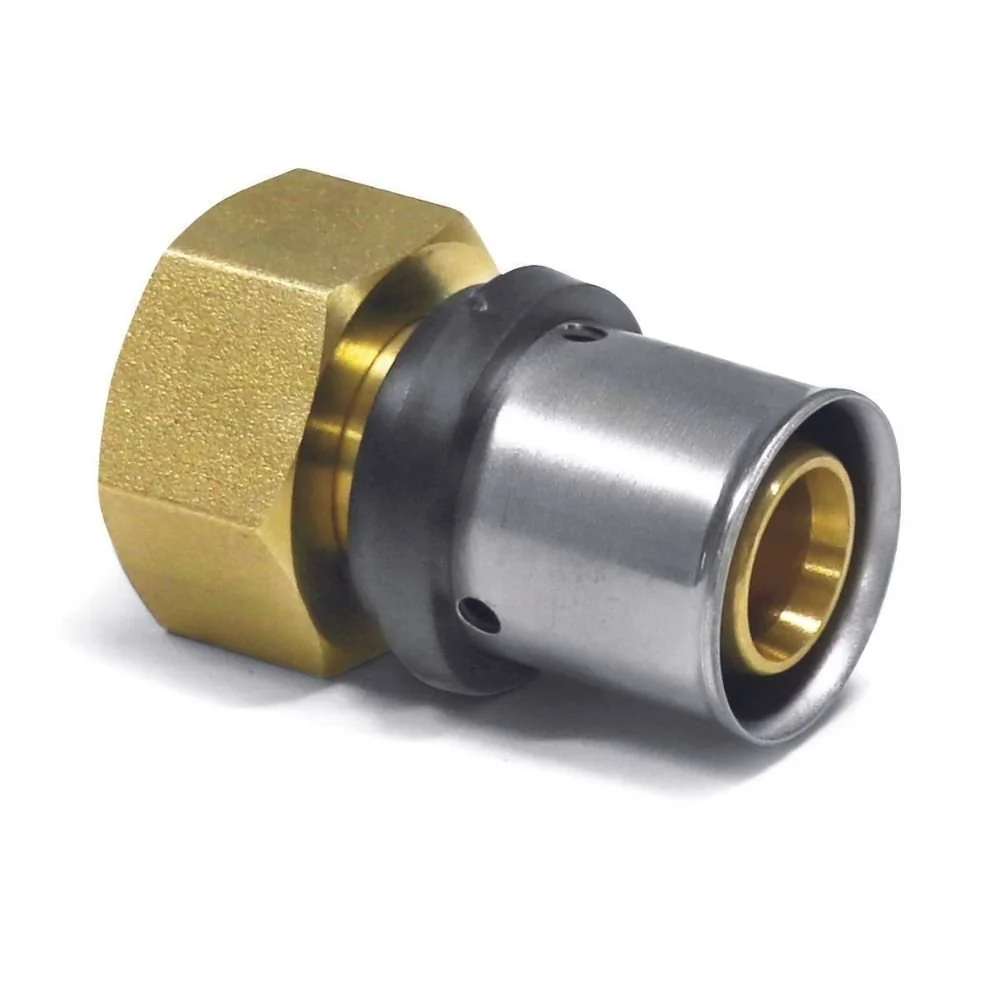

32mm x 3mm Press Fitting - 1" Female Thread Adapter

Yes, the fitting system is DVGW certified for both pipe systems: multilayer composite and copper pipes.

Yes, the integrated plastic guide ring (black) prevents the tube from being pushed out before the pressing process and ensures secure pressings.

This press fitting is multi-contour compatible and fully compatible with TH and U press jaws up to the dimension 32 x 3.0 mm. A suitable press tool with a U-contour is therefore appropriate.

The 1-inch internal thread of the fitting complies with standardized standards. This ensures compatibility with corresponding counterparts.

Using pipes other than those sold by Boni-Shop is at your own risk. Proper connection is only possible with certified components.

The transition fitting is designed for long-term durability of 10 bar at 70° C for over 50 years. The maximum operating temperature is even 95° C.

Yes, this is an intended feature of this press fitting. The system is unpressurized and leaky and becomes permanently watertight only after the proper pressing process.

For a quick and secure pipe connection, you need a pipe cutter, a calibrator, and a suitable press tool in addition to the press fitting. The pipe end must be calibrated and deburred after cutting.

Yes, this fitting system is designed for two pipe systems: both multilayer composite and copper pipes. Both applications are DVGW-certified.

The installation is designed for quick and secure pipe connection with the right tools (pipe cutter, calibrator, press tool). An illustrated installation guide is included with the photos.

Thanks to the flow-optimized contour of the fitting, free passage is ensured. This results in virtually no flow noise.

The correct insertion depth is visible through the three inspection windows of the stainless steel press sleeve. This provides an added safety for the user.

Yes, the BONI-P62V3206 is designed for a maximum operating temperature of 95°C. The fitting's long-term durability is at 70°C for over 50 years. Short-term temperature peaks up to 85°C are therefore safe.

Yes, the integrated plastic guide ring allows for secure pressing even in tight positions or with limited space. It ensures precise positioning of the pipe in the pressing jaw.

Yes, all components are low in lead or lead-free and DVGW-certified. They comply with the UBA positive list and meet the requirements of the Drinking Water Ordinance.

The BONI-P62V2608 is designed to be leaky when not crimped. This serves as a safety feature so that incorrect or missing crimping is immediately noticeable.

Yes, the fitting's durability is specified at 10 bar / 70° C / 50 years. The maximum operating temperature is 95° C.

Yes, thanks to the black plastic guide ring, secure pressing is possible even in tight positions. The inspection window additionally helps to check the correct insertion depth.

The transition fitting is designed for continuous load at 70°C for 50 years. The maximum operating temperature is 95°C. At temperatures above 70°C, operation occurs outside the long-term continuous load.

Using composite pipes other than those sold by Boni-Shop is at your own risk. A proper connection exists only with system-approved components that have been tested together.

The press fitting BONI-P62V2004 has the dimension 20 x 2 mm. For this, you need a press jaw with a diameter of 20mm. A 25mm press jaw is intended for 26x3mm pipes.

For a secure pipe connection, you need a pipe cutter, a calibrator, and a suitable pressing tool with TH or U press jaws. A wrench is not sufficient.

The modern, aerodynamically optimized design ensures free flow and excellent Zeta values. This results in virtually no flow noise during operation.

Void-free compression with 2 O-rings prevents the ingress of air oxygen. This significantly contributes to a durability of 50 years.

Yes, the "leaky before pressing" property serves as a safety indicator before the pressing process. The correct insertion depth of the pipe can additionally be checked via the integrated inspection window in the stainless steel sleeve.

The protection against atmospheric oxygen achieved through sealing prevents corrosion in heating installations. This increases the lifespan of the installation and contributes to the long-term efficiency of the system.

Yes, this fitting system is designed for two pipe systems: both for multilayer composite pipes and for copper pipes. Both systems must be DVGW-certified.

Yes, that is completely normal. This press fitting is designed to be unsealed until properly pressed and becomes watertight.

The long-term durability of 50 years applies under the specified conditions of 10 bar pressure and 70° C operating temperature. The system is certified according to DVGW standards.

This pressfitting is DVGW-certified and complies with the UBA positive list for drinking water installations. This product is not approved or suitable for gas lines.
