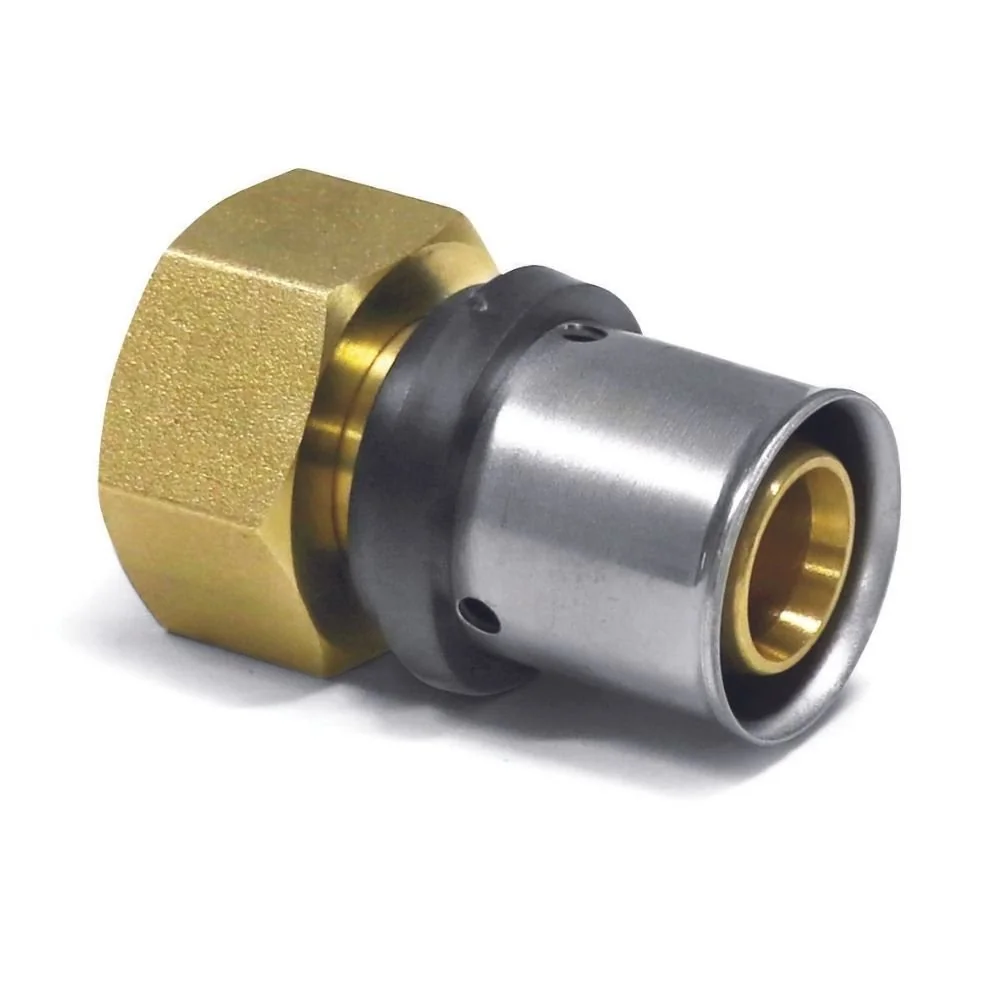

32mm Press Fitting Adapter - 1 1/4" Female, DVGW Certified

Yes, all components are low in lead or lead-free and DVGW-certified. They comply with the UBA positive list and meet the requirements of the Drinking Water Ordinance.

The BONI-P62V2608 is designed to be leaky when not crimped. This serves as a safety feature so that incorrect or missing crimping is immediately noticeable.

Yes, the fitting system is DVGW certified for both pipe systems: multilayer composite and copper pipes.

Yes, the fitting's durability is specified at 10 bar / 70° C / 50 years. The maximum operating temperature is 95° C.

Yes, thanks to the black plastic guide ring, secure pressing is possible even in tight positions. The inspection window additionally helps to check the correct insertion depth.

The transition fitting is designed for continuous load at 70°C for 50 years. The maximum operating temperature is 95°C. At temperatures above 70°C, operation occurs outside the long-term continuous load.

Using composite pipes other than those sold by Boni-Shop is at your own risk. A proper connection exists only with system-approved components that have been tested together.

The press fitting BONI-P62V2004 has the dimension 20 x 2 mm. For this, you need a press jaw with a diameter of 20mm. A 25mm press jaw is intended for 26x3mm pipes.

For a secure pipe connection, you need a pipe cutter, a calibrator, and a suitable pressing tool with TH or U press jaws. A wrench is not sufficient.

The modern, aerodynamically optimized design ensures free flow and excellent Zeta values. This results in virtually no flow noise during operation.

Void-free compression with 2 O-rings prevents the ingress of air oxygen. This significantly contributes to a durability of 50 years.

Yes, the "leaky before pressing" property serves as a safety indicator before the pressing process. The correct insertion depth of the pipe can additionally be checked via the integrated inspection window in the stainless steel sleeve.

The protection against atmospheric oxygen achieved through sealing prevents corrosion in heating installations. This increases the lifespan of the installation and contributes to the long-term efficiency of the system.

Yes, this fitting system is designed for two pipe systems: both for multilayer composite pipes and for copper pipes. Both systems must be DVGW-certified.

Yes, that is completely normal. This press fitting is designed to be unsealed until properly pressed and becomes watertight.

The long-term durability of 50 years applies under the specified conditions of 10 bar pressure and 70° C operating temperature. The system is certified according to DVGW standards.

This pressfitting is DVGW-certified and complies with the UBA positive list for drinking water installations. This product is not approved or suitable for gas lines.

For a secure connection, you need a pipe cutter, a calibrator, and a suitable press tool with TH- or U-press profile.

The BONI-P62V2608 has integrated inspection windows in the stainless steel pressing sleeve. Through these three windows, you can check the correct insertion depth of the pipe up to the stop. This provides an extra level of safety for a reliable connection.

Yes, the BONI-P62V2608 is suitable for heating installations. It is permanently loadable up to 70° C and can withstand a maximum operating temperature of 95° C.

Yes, this press fitting is Multikontur (TH + U) compatible. For the dimension 26 x 3.0 mm, you can use both TH and U-press jaws (with a 25mm press jaw).

With a pipe cutter, calibrator, and suitable press tool, the installation is safe and quick. The illustrated installation guide supports you step by step.

The fitting's continuous load capacity is specified up to 70°C, the maximum operating temperature is up to 95°C. Information on frost resistance is not explicitly stated.

Thanks to the new, flow-optimized contour and best ZETA values, almost no flow noise is expected. It offers the largest passage area.

A compliant connection is only guaranteed with system-approved components (jointly tested fittings and pipes). The use of other composite pipes is at your own risk.

The integrated inspection window in the stainless steel sleeve shows the correct insertion depth of the pipe. The guide ring and the 2 O-rings ensure a seamless and secure compression.

Yes, the BONI-P62V2608 is designed as a fitting system for two pipe systems and is DVGW-certified. It allows for the secure connection of multilayer and copper pipes.

The plastic guide ring allows secure crimping even in difficult positions. The inspection window additionally supports correct installation.

The press connection itself is permanent. However, the transition screw connection (1 1/2" IG) can be loosened and reconnected, as it is a threaded connection.

Yes, the integrated plastic guide ring (black) prevents the tube from being pushed out before the pressing process and ensures secure pressings.
