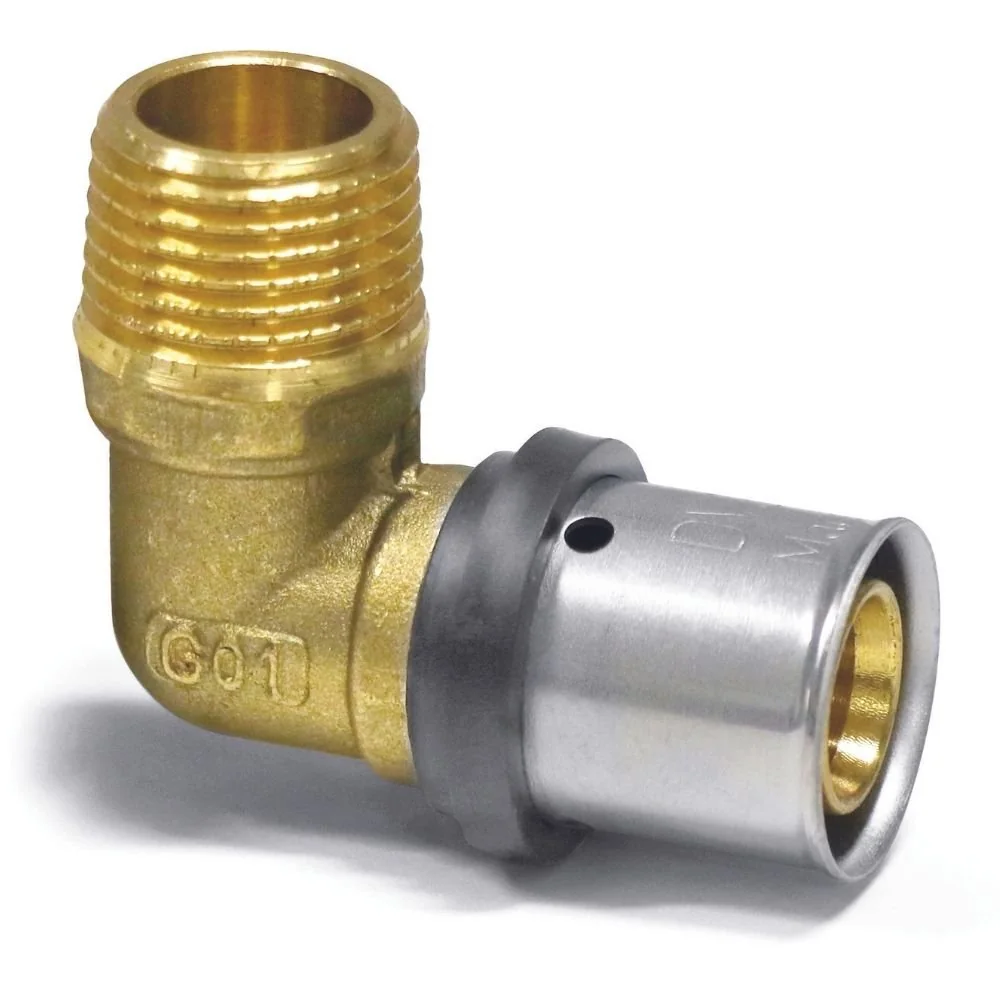

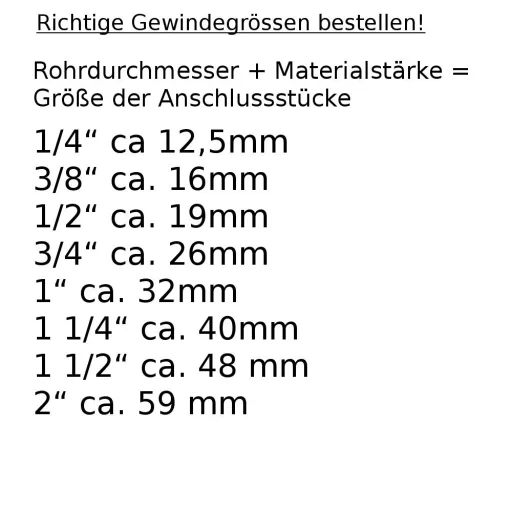

Press fitting transition angle 20 x 2 - 1/2" male thread

Press fitting transition angle 20 x 2 - 1/2" male thread

Made in Germany

• Suitable for drinking water without restriction (DVGW DW-8501BS5049)
• Complies with the UBA positive list
• Durability: 10 bar / 70° C / 50 years
• Maximum operating temperature: 95° C
• Leaky when not pressed
• New modern contour - flow-optimized - free passage - almost no flow noise
• Best ZETA values: largest passage area = largest inner diameter
• Low lead or lead-free: all components are DVGW-certified, comply with the UBA positive list and meet the requirements of the drinking water ordinance
• A fitting system for two pipe systems: multilayer composite and copper pipes DVGW-certified
• No pushing out of the pipe before the pressing process and through the guide ring; fits precisely in the pressing jaw, cavity-free connection = highest safety
• 2 O-rings due to cavity-free pressing = no penetration of air oxygen
• Composite pipe system press fitting made of special brass (CU Zn 40 Pb2)
• Press sleeve made of stainless steel
• Plastic guide ring (black) for secure pressing even in forced positions
• Integrated control window insertion depth pipe in fitting in the stainless steel sleeve = safety plus for the user
• Made in Germany

For a quick and secure pipe connection, you only need press fittings, our aluminum composite pipe, a pipe cutter, a calibrator, and a suitable press tool with TH or U press contour.
For better understanding, we have provided a pictorial assembly instruction with the photos.

New! Multi-contour (TH + U)

Full compatibility with TH and U pressing jaws up to dimension 32 x 3.0 mm.

• 16 x 2.0 mm = TH + U compatible
• 20 x 2.0 mm = TH + U compatible
• 26 x 3.0 mm = TH + U compatible (25 pressing jaw)
• 32 x 3.0 mm = TH + U compatible
• 40 x 3.5 mm = TH
• 50 x 4.0 mm = TH
• 63 x 4.5 mm = TH

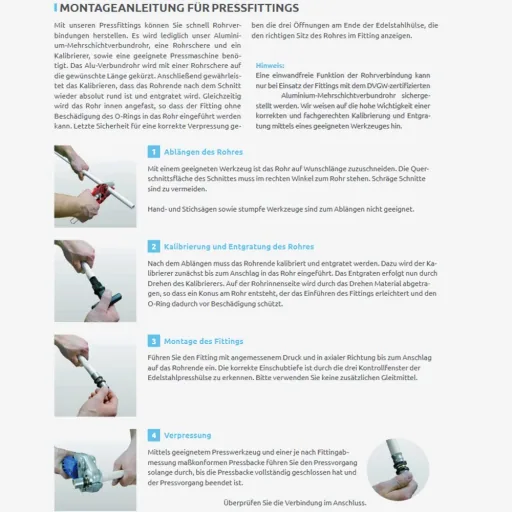

Assembly instructions:

• Cut the pipe to length with a suitable tool
• After cutting to length, the pipe end must be calibrated and deburred with a calibrator
• Then insert the pipe into the fitting until it stops. The correct insertion depth can be seen through the three control windows of the stainless steel press sleeve.
• Press using a suitable pressing tool and a pressing jaw conforming to the fitting dimensions.

Please note that using composite pipes other than those distributed by Boni-Shop is at your own risk.
A compliant connection exists in all press systems only with system-approved components (fittings and pipes that have been tested together)
This applies regardless of the manufacturer for all composite pipe systems.
