Pressfitting Wall Elbow, 20 x 2 - 1/2" IG, Pipe Fittings
Diameter
: 20 mm
Thread
: 1/2"
About this item:
- Robust Pressfitting Wall Angle – durable connection
- Dimensions: 20 x 2 – 1/2" IG – precise installation
- Ideal for water and heating installations
- High-quality craftsmanship – reliable and tight
- Easy handling – efficient assembly
Guaranteed Secure Checkout
| Item number | BONI-P62WWD200420 |
| Brand | Boni-Shop® |
4.71
No images or videos found in reviews
Alexander Bode
BONI-P62WWD160416
Diameter
:
16 mm
Thread
:
1/2"
High-quality material at a great price.
BONI-P62WWD160416
Diameter
:
16 mm
Thread
:
1/2"
Martina Höpcke
BONI-P62WWD160416
Diameter
:
16 mm
Thread
:
1/2"
All good with this purchase.
BONI-P62WWD160416
Diameter
:
16 mm
Thread
:
1/2"
Michael Lill
BONI-P62WWD160416
Diameter
:
16 mm
Thread
:
1/2"
perfectly round, arrived super fast.
BONI-P62WWD160416
Diameter
:
16 mm
Thread
:
1/2"
Heinrich Meys
BONI-P62WWD160416
Diameter
:
16 mm
Thread
:
1/2"
Solid item, works reliably.
BONI-P62WWD160416
Diameter
:
16 mm
Thread
:
1/2"
Manuela Rausch
BONI-P62WWD160416
Diameter
:
16 mm
Thread
:
1/2"
All flawless, strongly recommended, quality finish and nicely packaged. Eager to test it, but it looks excellent.
BONI-P62WWD160416
Diameter
:
16 mm
Thread
:
1/2"
Michael Vöpel
BONI-P62WWD160416
Diameter
:
16 mm
Thread
:
1/2"
With sharp corners but ideal for its purpose.
BONI-P62WWD160416
Diameter
:
16 mm
Thread
:
1/2"
Christine Tolsd
BONI-P62WWD160416
Diameter
:
16 mm
Thread
:
1/2"
Item matches the order perfectly, size and material as specified. Quick shipping. Highly recommend.
BONI-P62WWD160416
Diameter
:
16 mm
Thread
:
1/2"
4.7
7 reviews
Reviews (7)
Alexander Bode
High-quality material at a great price.
Questions (14)
Secure Pipe Connections with Pressfitting Wall Elbow
Are you seeking a reliable solution for your pipe installation? Our Pressfitting Wall Elbow provides a durable and leak-proof connection for your water and heating systems. It's easy to install, ensuring a safe and efficient setup. Explore the benefits and applications of this high-quality product.
Product Features and Benefits
- Certified: Fully suitable for drinking water. This means the highest safety and compliance with regulations for you.
- UBA Compliant: Complies with the UBA list, assuring you that all materials are safe for your health.
- High Durability: Continuous load capacity of 10 bar / 70°C / 50 years. You benefit from a long-lasting and reliable solution for your installations.
- Maximum Operating Temperature: Up to 95°C. You can use the wall elbow even in demanding environments.
- Unpressed Leaks: Increased safety through the "unpressed leaks" function. You will immediately recognize if a connection has not been correctly pressed.
- Optimized Contour: New, modern, and flow-optimized contour for free passage and low flow noise. You enjoy an efficient and quiet installation.
- Best ZETA Values: Largest passage area = largest inner diameter. You benefit from minimal pressure losses and optimal flow rate.
- Low Lead or Lead-Free: All components are certified and comply with the UBA list and the requirements of the Drinking Water Ordinance. For your health and safety.
- Versatility: One fitting system for two pipe systems: multi-layer composite and copper pipes. You save time and costs through flexible application.
- Secure Pressing: No pushing out of the pipe before pressing due to the guide ring. Precisely fitting in the pressing jaw, cavity-free connection = highest safety. You can rely on a permanent and tight connection.
- Double Security: 2 O-rings through the cavity-free pressing = no penetration of atmospheric oxygen. For a long service life of your installation.
- High-Quality Materials: Composite pipe system press fitting made of special brass (CU Zn 40 Pb2) and stainless steel press sleeve. You receive a robust and durable product.
- Plastic Guide Ring: For secure pressings even in constrained positions. You facilitate the installation even under difficult conditions.
- Inspection Window: Integrated inspection window for the insertion depth of the pipe into the fitting in the stainless steel sleeve = safety plus for you.
Advantages of the Pressfitting Wall Elbow
- Time Savings: Quick and easy installation without complex welding or soldering.
- High Safety: Permanently tight connections minimize the risk of water damage.
- Flexibility: Suitable for various pipe systems and applications.
- Long Service Life: High-quality materials and workmanship guarantee a long service life.
- Low Operating Costs: Optimized flow values reduce pressure losses and energy costs.
- Drinking Water Suitable: Meets the highest hygienic requirements for use in drinking water installations.
- Simple Control: The integrated inspection window enables a quick check of the correct installation.
Application (Step-by-Step)
- Step 1: Cut the pipe: Cut the pipe with a suitable tool.
- Step 2: Calibrate and deburr the pipe end: After cutting, the pipe end must be calibrated and deburred with a calibrator.
- Step 3: Insert the pipe: Then insert the pipe into the fitting until it stops. The correct insertion depth can be seen through the three inspection windows of the stainless steel press sleeve.
- Step 4: Pressing: Press using a suitable pressing tool and a pressing jaw that is dimensionally accurate depending on the fitting dimensions.
Technical Data
| Material | Special brass (CU Zn 40 Pb2), stainless steel |
| Continuous Load Capacity | 10 bar / 70°C / 50 years |
| Maximum Operating Temperature | 95°C |
| Certification | DVGW DW-8501BS5049 |
EU-Responsible Name: Boni-Shop GmbH; Hr. Stanislav Maer
EU-Responsible Street: Wissmannstraße
EU-Responsible House No: 58
EU-Responsible Post Code: 27755
EU-Responsible Town: Delmenhorst
EU-Responsible Country: Germany
EU-Responsible Email: [email protected]
EU-Responsible Phone Number: +49(0)4221 45 777 00

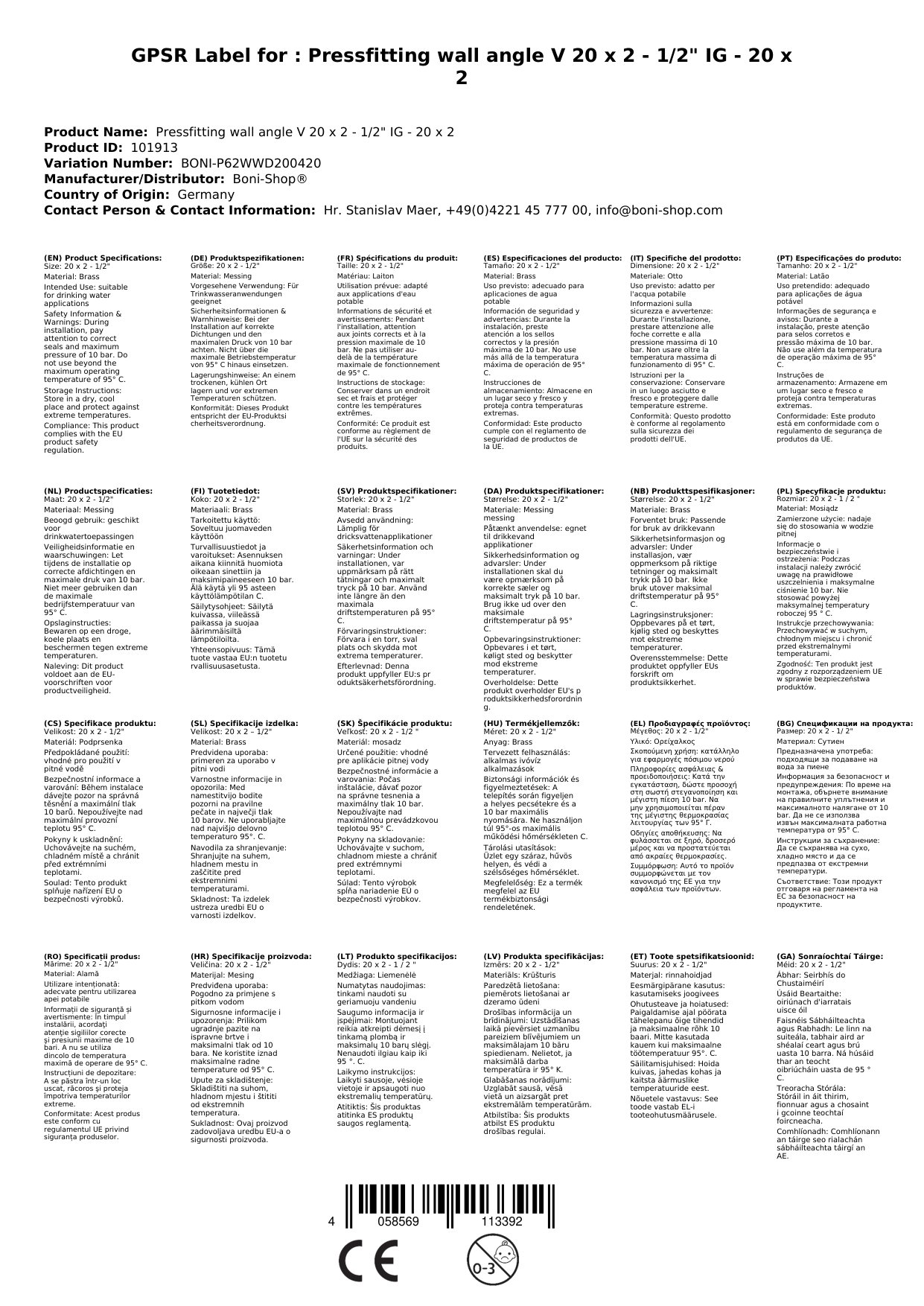

GPSR attachment:
