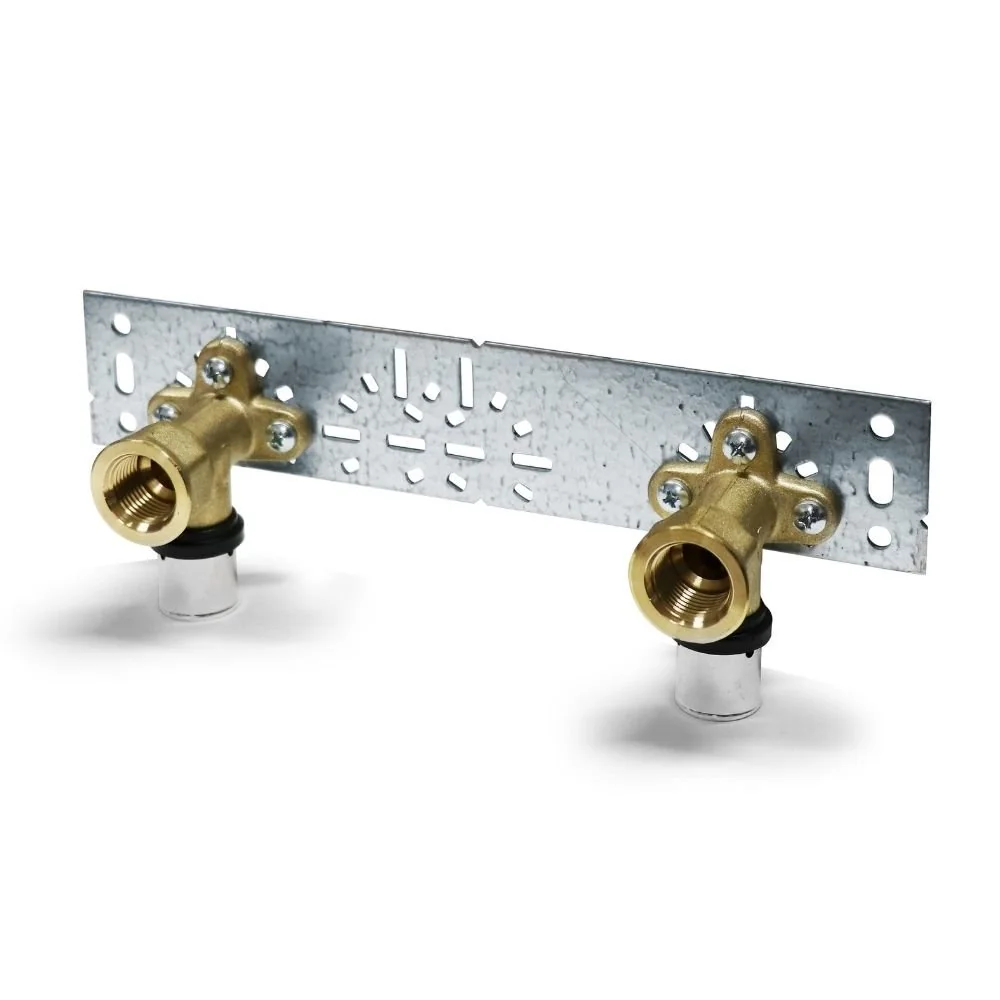

Press Fitting Wall Elbow with Mounting Plate
Diameter
: 16 mm
Thread

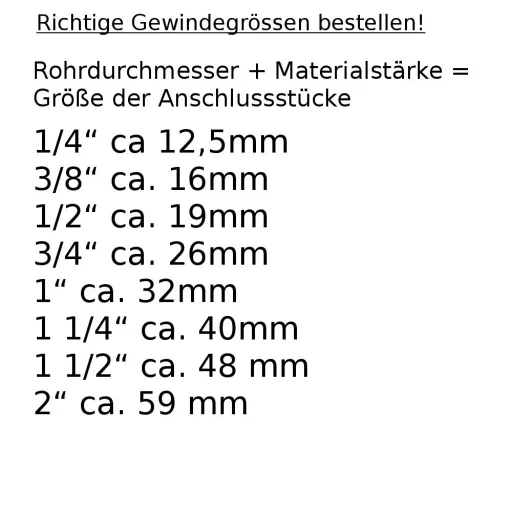

: 1/2"
About this item:
- Robust material for heating installation – durable quality
- Dimensions: 16 mm – perfect fit for wall bracket mounting
- Includes mounting plate – easy and quick installation
- Pressfitting technology – secure pipe connections guaranteed
- Ideal for drinking water and heating – versatile use
Guaranteed Secure Checkout
| Item number | BONI-P62WWSET1604 |
| Brand | Boni-Shop® |
Reviews
There are no reviews yet — yours could be the first
Share your experience with this purchase and help other customers make the right choice
0.0
0 reviews
Questions (14)
Secure Your Installations with Our Press Fitting Wall Elbow
Realize secure and durable pipe connections with our high-quality press fitting wall elbow. This set, consisting of a wall elbow and mounting plate, allows for simple and reliable installation. Benefit from high quality and easy installation for your heating or drinking water system.
Product Features and Benefits
- DVGW Certification: Suitable for drinking water installations, ensuring the highest safety and hygiene for you.
- UBA-Positive List: Complies with the strict requirements of the UBA-Positive List for use in drinking water systems, providing peace of mind.
- High Load Capacity: Continuous load capacity of 10 bar at 70°C over 50 years, guaranteeing long-term and reliable use.
- Maximum Operating Temperature: Up to 95°C, allowing you to use the wall elbow in demanding heating systems.
- Unpressed Leaks: Increased safety during installation, as unpressed connections are immediately detected, preventing potential issues.
- Optimized Contour: Minimizes flow noise and ensures free passage, providing a quieter and more efficient system.
- Best ZETA Values: Largest flow area for minimal pressure loss, optimizing system performance.
- Low-Lead or Lead-Free: All components are DVGW-certified and meet the requirements of the Drinking Water Ordinance.
- Compatibility: One fitting system for multilayer composite and copper pipes, offering versatility and convenience.
- Secure Pressing: No pushing out of the pipe and cavity-free connection for maximum safety, ensuring a reliable connection.
- Double O-Rings: No penetration of atmospheric oxygen due to the cavity-free pressing, enhancing the lifespan of your system.
- High-Quality Materials: Composite pipe system press fitting made of special brass (CU Zn 40 Pb2) and press sleeve made of stainless steel, ensuring durability and resistance to corrosion.
- Plastic Guide Ring: For secure pressing even in constrained positions, simplifying installation in challenging spaces.
- Inspection Window: Integrated inspection window to check the insertion depth of the pipe, preventing installation errors.
- Multi-Contour: Full compatibility with TH and U pressing jaws up to dimension 32 x 3.0 mm, providing flexibility with your tools.
Advantages of Our Product
- Easy Installation: The mounting plate allows the wall elbow to be attached quickly and easily, saving you time and effort.
- High Safety: DVGW certification and high-quality materials ensure a safe and durable connection, providing peace of mind.
- Versatility: Suitable for various pipe systems, including multilayer composite and copper pipes, offering flexibility for your projects.
- Durability: High load capacity and robust materials ensure a long service life, saving you money in the long run.
- Compatibility: Multi-contour allows the use of various pressing jaws, providing convenience and reducing the need for specialized tools.
- Optimized Design: Minimizes flow noise, creating a quieter environment.
- Leakage Detection: The 'unpressed leaks' feature allows easy detection of improper connections.

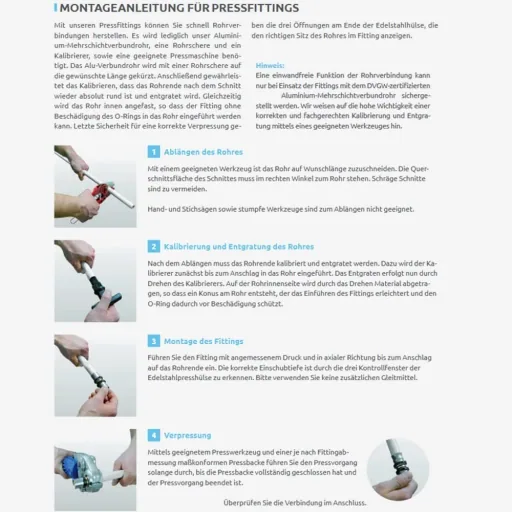

How to Use (Step-by-Step)
- Step 1: Cut the Pipe: Cut the pipe to the required length using a suitable tool.
- Step 2: Calibrate and Deburr the Pipe End: After cutting, the pipe end must be calibrated and deburred with a calibrator.
- Step 3: Insert the Pipe: Then insert the pipe into the fitting until it stops. The correct insertion depth can be seen through the three inspection windows of the stainless steel pressing sleeve.
- Step 4: Pressing: Press using a suitable pressing tool and a pressing jaw that conforms to the fitting dimensions.
Technical Specifications
| Material: | Special Brass (CU Zn 40 Pb2), Stainless Steel |
| Continuous Load Capacity: | 10 bar / 70°C / 50 Years |
| Maximum Operating Temperature: | 95°C |
| Compatibility: | Multilayer Composite and Copper Pipes |
| Certification: | DVGW, UBA-Positive List |
