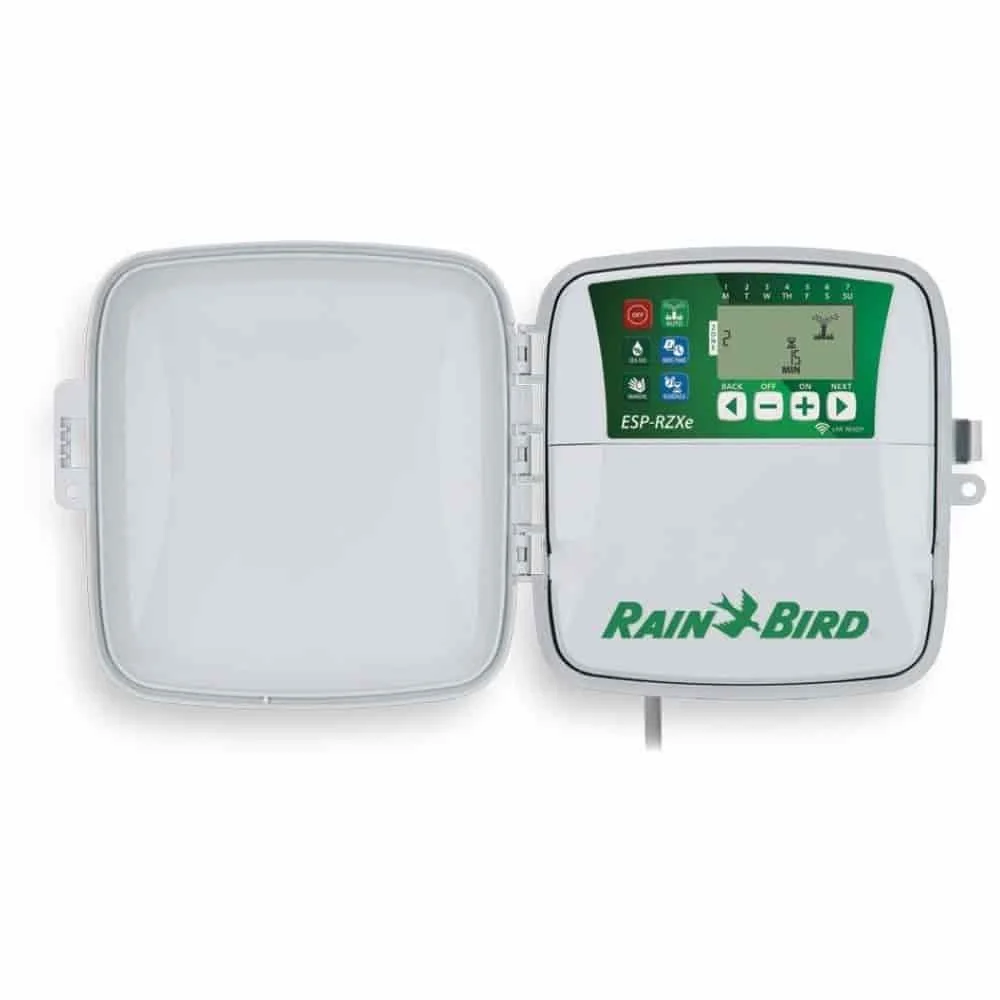

Rainbird Control Unit Type RZXe6 Outdoor

Rainbird Control Unit Type RZXe6 Outdoor

for outdoor use with 6 zones

The WLAN-capable Rainbird ESP-RZXe series offers a robust, permanently installed irrigation control unit for use in home gardens and small commercial applications. It allows for zone-based planning that is easy to understand even for inexperienced users. The simple user interface is easy to explain, displaying all control unit functions on a single screen.

The Rainbird Control Unit Type RZXe6 is for 6 irrigation zones in outdoor areas.

User-Friendly

• Zone-based irrigation planning allows for independent scheduling for each valve
• The large LCD display clearly shows the programming of each individual zone
• The simple graphical user interface is easy to explain, keeping an overview of all control unit functions


Easy to Install

• Only two mounting screws required for the control unit
• A cable guide for 1/2" or 3/4" pipes allows for proper cable routing to the control panel
• Plastic housing for wall mounting
• 2x AAA batteries to secure date and time settings


Control Unit Functions

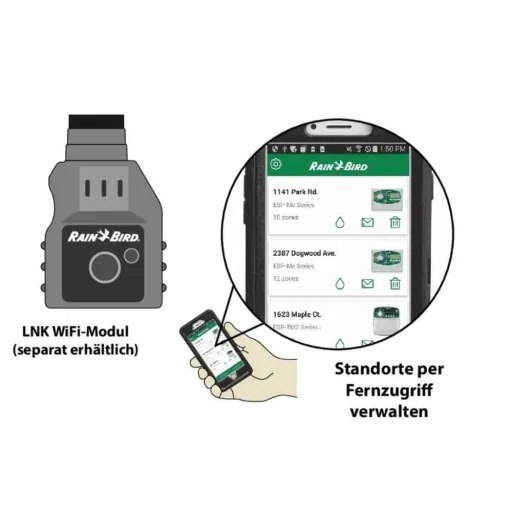

• WLAN-capable with the Rainbird LNK Wifi module (not included)
• Large LCD display with easily navigable user interface


Scheduling Functions

• Zone-based irrigation planning allows for independent timing in each zone. Run times, start times, and irrigation days can be adjusted for each zone
• Contractor Rapid Programming automatically copies start times and irrigation days from Zone 1 to all other zones during initial setup
• 6 independent start times for each zone
• 4 possible irrigation intervals per zone: Custom weekdays, odd/even calendar days, cyclical (every 14 days)
• Manual irrigation of all or individual zones as needed


Advanced Features

• Electronic, diagnostic-controlled circuit
• Quick initial setup with Contractor Rapid Programming and copying of the previous zone
• Save/Restore default settings with Contractor Default
• Rain sensor bypass also by zone
• Manual irrigation of individual and all zones


Operating Specifications

• Run time setting 0 to 199 minutes
• Seasonal adjustment -90 to +100%
• 6 independent start times per zone
• Programmable day cycles: weekdays, custom, odd, even, and cyclical dates


Electrical Specifications

• Input voltage 230VAC +/- 10%, 50HZ
• Power failure backup: 2x AAA batteries secure date and time settings, while the permanent memory secures the programming


Dimensions

• Outdoor  WxHxD  20.1cm x 19.9cm x 3.9cm
