Screw Fitting Reduced Coupling 20 x 2 - 16 x 2

Price:

5.09 €
🇩🇪  German quality since 1923
 Free shipping on orders over £ 85*
 Secure payment by invoice
  2. Shop
  3. Household
  4. Bathroom
  5. Connection Material, Installation Tools
  6. Press- Steck- und Schraubfittings

Screw Fitting Reduced Coupling 20 x 2 - 16 x 2

https://www.westfalia.uk/web/image/product.template/5616/image_1920?unique=cae6d62
33 reviews
14 sold in the last 24 hours
Diameter : 20 mm
Reduced diameter : 16 mm
UVP: 6.31 € -19%

5.09 € 5.09 EUR 5.09 € Pay 1.70 € now with Klarna

6.05 € 7.93 €

(0.00 € / Units)
* incl. VAT,   plus Shipping costs

3 people are viewing this right now
0.25 € Cashback with this purchase · 5 %
In Stock
About this item:
  • Practical Schraubfitting coupling 20 x 2 - 16 x 2
  • Dimensions: 20 x 2 mm to 16 x 2 mm – flexible
  • Material: Drinking water suitable – safe
  • Two O-rings – reliable sealing
  • Easy installation without press tool – efficient
Secure Checkout
Guaranteed Secure Checkout
Contact us
Item number BONI-S72K2016
Brand Boni-Shop®

Screw fitting reduced coupling 20 x 2 - 16 x 2 made-in-germany

Screw fittings for easy and quick assembly without pressing tool

Advantages:

  • Economical alternative to conventional press systems
  • All materials are safe for use in drinking water and comply with the UBA positive list
  • Two O-rings prevent the ingress of air oxygen

Properties:

dgvw   DVGW DW-8501CP0053

Screw Fitting Reduced Coupling 20 x 2 - 16 x 2-3   Continuous load capacity: 10 bar / 70° C / 50 years

Screw Fitting Reduced Coupling 20 x 2 - 16 x 2-4   Maximum operating temperature 95° C

Application areas:

Screw Fitting Reduced Coupling 20 x 2 - 16 x 2-5   Drinking water installations

Screw Fitting Reduced Coupling 20 x 2 - 16 x 2-6   Surface / ceiling heating

Screw Fitting Reduced Coupling 20 x 2 - 16 x 2-7   Surface / ceiling cooling

Screw Fitting Reduced Coupling 20 x 2 - 16 x 2-8   Radiator connection

Screw Fitting Reduced Coupling 20 x 2 - 16 x 2-9   Oil-free compressed air up to 10 bar

Certifications:

Screw Fitting Reduced Coupling 20 x 2 - 16 x 2-10   DVGW

Screw Fitting Reduced Coupling 20 x 2 - 16 x 2-11   IMA

Screw Fitting Reduced Coupling 20 x 2 - 16 x 2-12   EN ISO 21003

Screw Fitting Reduced Coupling 20 x 2 - 16 x 2-13   GOST

Screw Fitting Reduced Coupling 20 x 2 - 16 x 2-14   Hygiene Certificate

For a quick and secure pipe connection, you only need screw fittings, our composite pipe, a pipe cutter, and a calibrator.

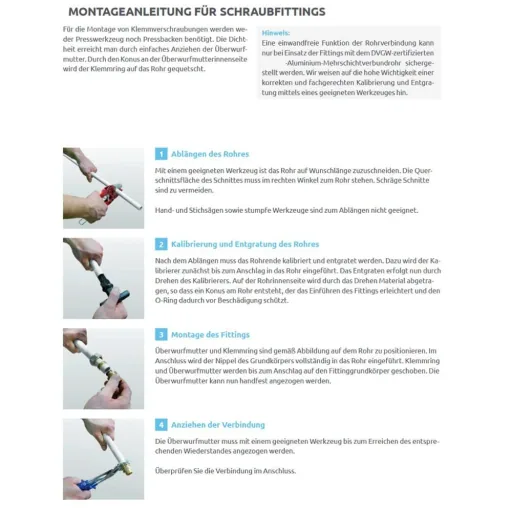

For better understanding, we have provided a pictorial assembly instruction with the photos.

Assembly instructions:

  • Cut the pipe to length with a suitable tool
  • After cutting to length, the pipe end must be calibrated and deburred with a calibrator
  • Position the union nut and clamping ring on the pipe as shown in the illustration. Then fully insert the nipple of the base body into the pipe. Push the clamping ring and union nut onto the fitting base body until they stop. The union nut can now be hand-tightened.
  • The union nut must be tightened with a suitable tool until the corresponding resistance is reached.
    Check the connection afterwards.

Please note that using other composite pipes than those distributed by Boni-Shop is at your own risk.
A compliant connection exists with all press systems only with system-approved components (fittings and pipes that have been tested together)
This applies to all composite pipe systems regardless of the manufacturer.

EU-Responsible Name: Boni-Shop GmbH; Hr. Stanislav Maer
EU-Responsible Street: Wissmannstraße
EU-Responsible House No: 58
EU-Responsible Post Code: 27755
EU-Responsible Town: Delmenhorst
EU-Responsible Country: Germany
EU-Responsible Email: [email protected]
EU-Responsible Phone Number: +49(0)4221 45 777 00

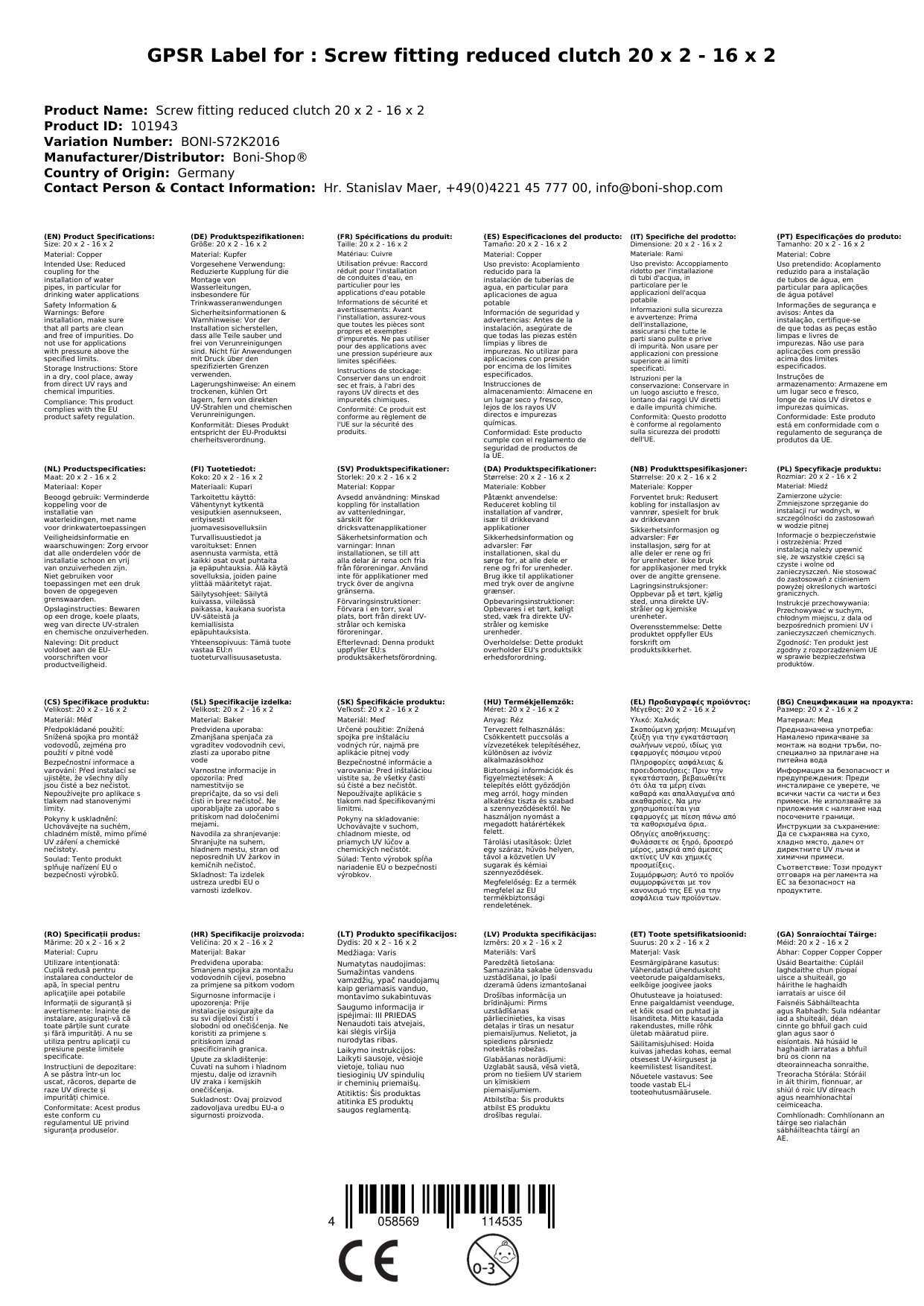

GPSR attachment: Download
