Screw Fitting Coupling 20 x 2 - 3/4" IG

Price:

4.90 €
🇩🇪  German quality since 1923
 Free shipping on orders over £ 85*
 Secure payment by invoice
  2. Shop

Screw Fitting Coupling 20 x 2 - 3/4" IG

https://www.westfalia.uk/web/image/product.template/5641/image_1920?unique=7e5f504
69 reviews
7 sold in the last 24 hours
Diameter : 20 mm
Thread : 3/4"
Thread Direction : Female
UVP: 5.88 € -17%

4.90 € 4.9 EUR 4.90 € Pay 1.63 € now with Klarna

5.83 € 0.00 €

(0.00 € / Units)
* incl. VAT,   plus Shipping costs

8 people are viewing this right now
0.25 € Cashback with this purchase · 5 %
In Stock
Secure Checkout
Guaranteed Secure Checkout
Contact us
Item number BONI-S72UI2005
Brand Boni-Shop®

Screw Fitting Coupling 20 x 2 - 3/4" IG made-in-germany

Screw fittings for easy and quick installation without pressing tool

Advantages:

  • Economic alternative to conventional press systems
  • All materials are safe for use in drinking water and comply with the UBA positive list
  • Two O-rings prevent the ingress of air oxygen

Properties:

dgvw   DVGW DW-8501CP0053

Screw Fitting Coupling 20 x 2 - 3/4" IG-3   Continuous load capacity: 10 bar / 70° C / 50 years

Screw Fitting Coupling 20 x 2 - 3/4" IG-4   Maximum operating temperature 95° C

Application areas:

Screw Fitting Coupling 20 x 2 - 3/4" IG-5   Drinking water installations

Screw Fitting Coupling 20 x 2 - 3/4" IG-6   Surface / ceiling heating

Screw Fitting Coupling 20 x 2 - 3/4" IG-7   Surface / ceiling cooling

Screw Fitting Coupling 20 x 2 - 3/4" IG-8   Radiator connection

Screw Fitting Coupling 20 x 2 - 3/4" IG-9   Oil-free compressed air up to 10 bar

Certifications:

Screw Fitting Coupling 20 x 2 - 3/4" IG-10   DVGW

Screw Fitting Coupling 20 x 2 - 3/4" IG-11   IMA

Screw Fitting Coupling 20 x 2 - 3/4" IG-12   EN ISO 21003

Screw Fitting Coupling 20 x 2 - 3/4" IG-13   GOST

Screw Fitting Coupling 20 x 2 - 3/4" IG-14   Hygiene Certificate

For a quick and secure pipe connection, you only need screw fittings, our aluminum composite pipe, a pipe cutter, and a calibrator.

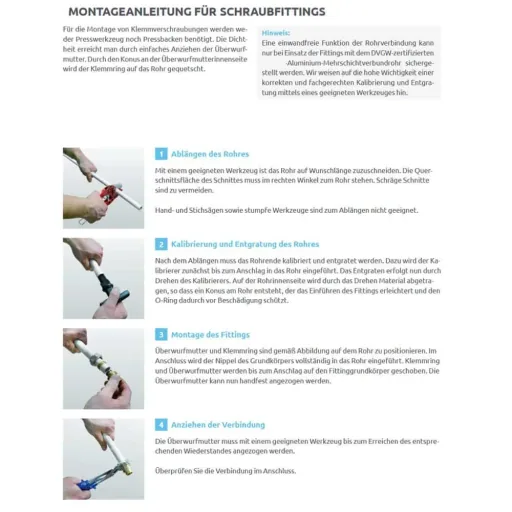

For better understanding, we have provided a pictorial installation guide with the photos.

Abbreviation AG = External thread
Abbreviation IG = Internal thread

Installation guide:

  • Cut the pipe to length with a suitable tool
  • After cutting to length, the pipe end must be calibrated and deburred with a calibrator
  • Position the union nut and clamping ring on the pipe according to the illustration. Then fully insert the nipple of the base body into the pipe. Push the clamping ring and union nut onto the fitting base body until they stop. The union nut can now be hand-tightened.
  • The union nut must be tightened with a suitable tool until the appropriate resistance is reached.
    Check the connection afterwards.

Please note that the use of other composite pipes, other than those distributed by Boni-Shop, is at your own risk.
A compliant connection exists with all press systems only with system-approved components (fittings and pipes that have been tested together)
This applies to all composite pipe systems regardless of the manufacturer.

EU-Responsible Name: Boni-Shop GmbH; Hr. Stanislav Maer
EU-Responsible Street: Wissmannstraße
EU-Responsible House No: 58
EU-Responsible Post Code: 27755
EU-Responsible Town: Delmenhorst
EU-Responsible Country: Germany
EU-Responsible Email: [email protected]
EU-Responsible Phone Number: +49(0)4221 45 777 00

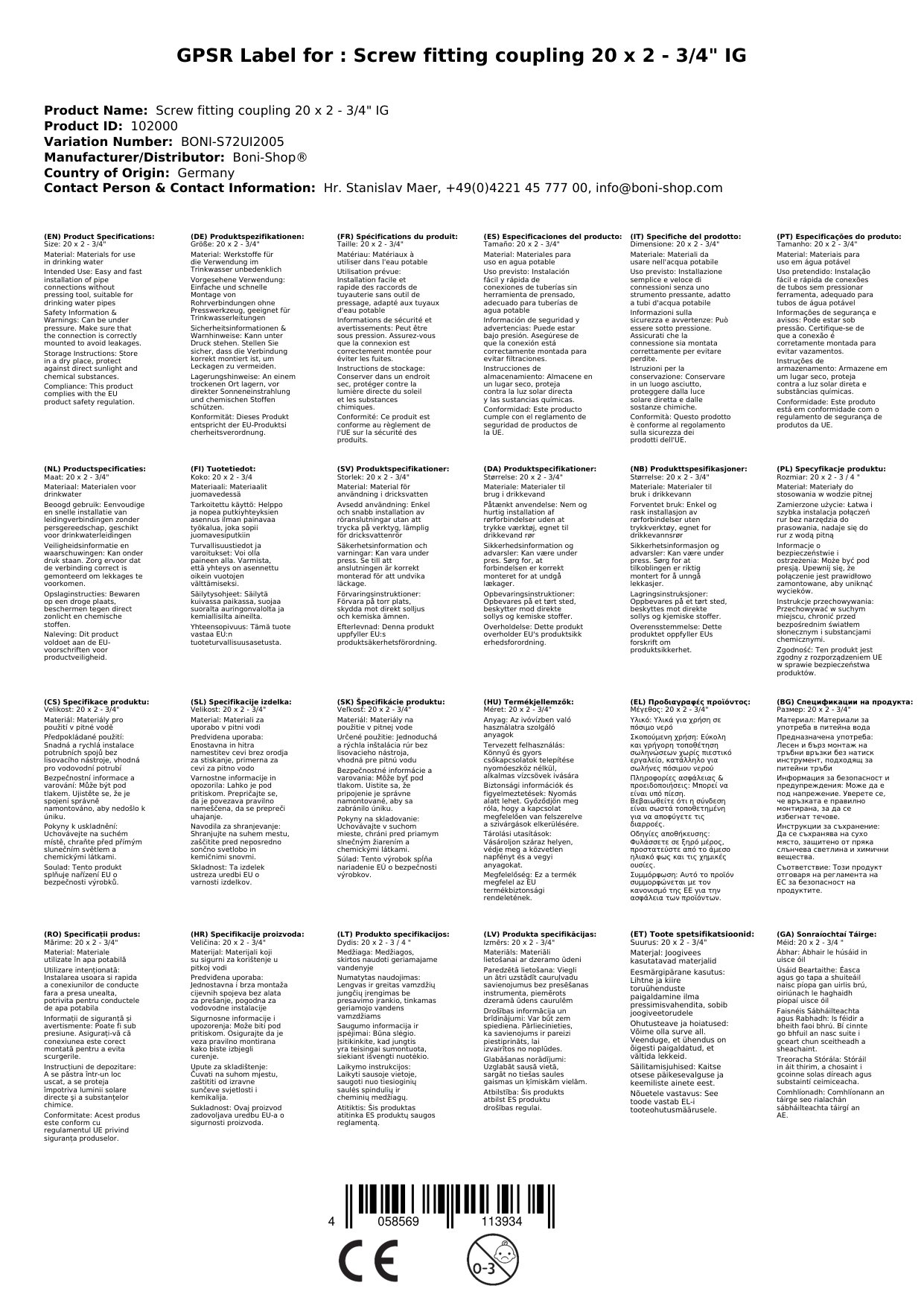

GPSR attachment: Download
