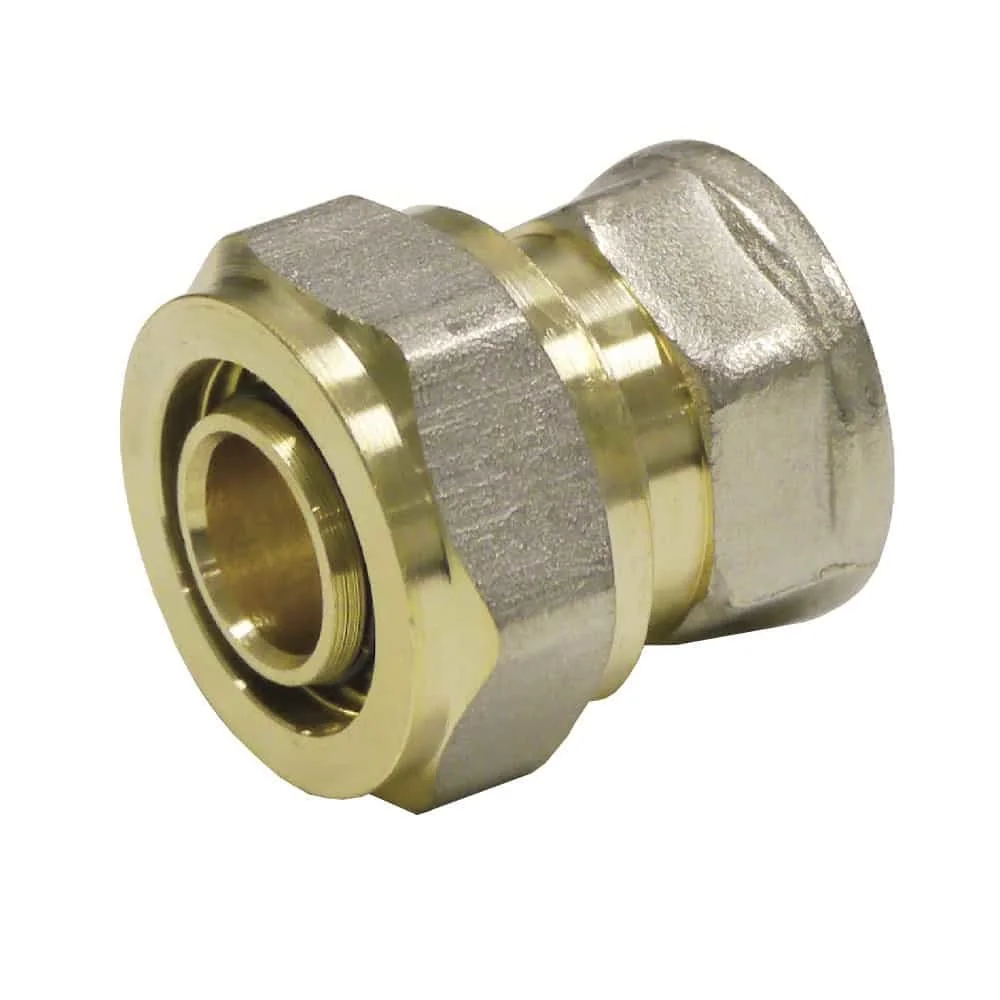

32mm Compression Fitting, 1 Inch Female Thread, Plumbing & Heating
Diameter
: 32 mm
Thread
: 1"
Thread Direction
: Female
About this item:
- Screw fitting coupling 32 mm – secure connection
- 1 inch internal thread – versatile use
- Suitable for drinking water – high safety
- Ideal for heating – reliable installation
- Easy assembly – usable without press tool
Guaranteed Secure Checkout
| Item number | BONI-S72UI3206 |
| Brand | Boni-Shop® |
4.81
No images or videos found in reviews
Renato De Salvo
BONI-S72UA2606
Diameter
:
26 mm
Thread
:
1"
Thread Direction
:
Male
All the components are very well made.
BONI-S72UA2606
Diameter
:
26 mm
Thread
:
1"
Thread Direction
:
Male
Hans Meschede
BONI-S72UA3205
Diameter
:
32 mm
Thread
:
3/4"
Thread Direction
:
Male
This screw fitting coupling made connecting pipes much simpler than traditional methods. The installation guide was clear, and the fitting felt secure once tightened. It's great that it's certified for drinking water safety.
BONI-S72UA3205
Diameter
:
32 mm
Thread
:
3/4"
Thread Direction
:
Male
Simone Simmerl
BONI-S72UA2604
Diameter
:
26 mm
Thread
:
1/2"
Thread Direction
:
Male
This fitting makes pipe connections quick and straightforward. The installation was hassle-free, and the secure fit gives me confidence against leaks. It's reassuring to know it meets drinking water safety standards.
BONI-S72UA2604
Diameter
:
26 mm
Thread
:
1/2"
Thread Direction
:
Male
Dagmar Vom Hofe
BONI-S72UI3205
Diameter
:
32 mm
Thread
:
3/4"
Thread Direction
:
Female
This coupling makes connecting pipes straightforward without needing special tools. It worked well for my drinking water setup, and the double O-rings give me confidence against leaks. The included installation guide was helpful for getting it right the fi...
BONI-S72UI3205
Diameter
:
32 mm
Thread
:
3/4"
Thread Direction
:
Female
Madleen Riemann
BONI-S72UA2605
Diameter
:
26 mm
Thread
:
3/4"
Thread Direction
:
Male
Fits exactly as described. Easy to install and holds up really well.
BONI-S72UA2605
Diameter
:
26 mm
Thread
:
3/4"
Thread Direction
:
Male
Andreas Walgenb
BONI-S72UA1605
Diameter
:
16 mm
Thread
:
3/4"
Thread Direction
:
Male
This compression fitting made connecting pipes much simpler than expected. The brass construction feels solid, and it worked perfectly for my drinking water line. No special tools were needed, which was a big plus.
BONI-S72UA1605
Diameter
:
16 mm
Thread
:
3/4"
Thread Direction
:
Male
Susanne Klewing
BONI-S72UA2006
Diameter
:
20 mm
Thread
:
1"
Thread Direction
:
Male
This coupling made connecting pipes a breeze. The brass build feels sturdy, and the O-rings add an extra layer of security. It’s great knowing it’s safe for drinking water systems and handles high pressure well. The certifications give me confidence in its...
BONI-S72UA2006
Diameter
:
20 mm
Thread
:
1"
Thread Direction
:
Male
Martina Wolf
BONI-S72UI2606
Diameter
:
26 mm
Thread
:
1"
Thread Direction
:
Female
These are my second couplings. Very good quality and they fit perfectly.
BONI-S72UI2606
Diameter
:
26 mm
Thread
:
1"
Thread Direction
:
Female
Manfred Gensick
BONI-S72UI2604
Diameter
:
26 mm
Thread
:
1/2"
Thread Direction
:
Female
The fitting worked perfectly during installation and looked great.
BONI-S72UI2604
Diameter
:
26 mm
Thread
:
1/2"
Thread Direction
:
Female
Birgit Knoll
BONI-S72UI2004
Diameter
:
20 mm
Thread
:
1/2"
Thread Direction
:
Female
This coupling made connecting pipes in my heating system much easier. The screw fitting worked smoothly and held up well under pressure. It's reassuring to know it's certified for drinking water use.
BONI-S72UI2004
Diameter
:
20 mm
Thread
:
1/2"
Thread Direction
:
Female
Norbert Watzke
BONI-S72UI1605
Diameter
:
16 mm
Thread
:
3/4"
Thread Direction
:
Female
Good quality and easy to install. Works perfectly for my plumbing needs.
BONI-S72UI1605
Diameter
:
16 mm
Thread
:
3/4"
Thread Direction
:
Female
Esther Lang
BONI-S72UA2005
Diameter
:
20 mm
Thread
:
3/4"
Thread Direction
:
Male
The product is okay, threads are correct, I recommend.
BONI-S72UA2005
Diameter
:
20 mm
Thread
:
3/4"
Thread Direction
:
Male
Sabine Stephani
BONI-S72UI2005
Diameter
:
20 mm
Thread
:
3/4"
Thread Direction
:
Female
Works as described! Easy to install and fits perfectly.
BONI-S72UI2005
Diameter
:
20 mm
Thread
:
3/4"
Thread Direction
:
Female
Gerd Mönninkhof
BONI-S72UI1604
Diameter
:
16 mm
Thread
:
1/2"
Thread Direction
:
Female
The coupling looks high-quality and neatly made. I haven't installed it yet, but I'm optimistic based on its appearance.
BONI-S72UI1604
Diameter
:
16 mm
Thread
:
1/2"
Thread Direction
:
Female
Andrea Engelman
BONI-S72UA3206
Diameter
:
32 mm
Thread
:
1"
Thread Direction
:
Male
The product matches the description perfectly.
BONI-S72UA3206
Diameter
:
32 mm
Thread
:
1"
Thread Direction
:
Male
Klaus Dieter Ec
BONI-S72UI2006
Diameter
:
20 mm
Thread
:
1"
Thread Direction
:
Female
Just as described on the website, well-made product and good value for money.
BONI-S72UI2006
Diameter
:
20 mm
Thread
:
1"
Thread Direction
:
Female
Alexander Görtl
BONI-S72UA2606
Diameter
:
26 mm
Thread
:
1"
Thread Direction
:
Male
The quick connector is very good quality, easy to use, and durable.
BONI-S72UA2606
Diameter
:
26 mm
Thread
:
1"
Thread Direction
:
Male
Thorsten Lober
BONI-S72UA2606
Diameter
:
26 mm
Thread
:
1"
Thread Direction
:
Male
Works well so far. No leaks, easy to connect and disconnect.
BONI-S72UA2606
Diameter
:
26 mm
Thread
:
1"
Thread Direction
:
Male
Achim Schlimbac
BONI-S72UA2606
Diameter
:
26 mm
Thread
:
1"
Thread Direction
:
Male
The pipe coupling fits perfectly as described. I used it in my water pipe system as an extension/spare part.
BONI-S72UA2606
Diameter
:
26 mm
Thread
:
1"
Thread Direction
:
Male
Sinan Sahib
BONI-S72UA2606
Diameter
:
26 mm
Thread
:
1"
Thread Direction
:
Male
The connections are exactly what I needed and they work great.
BONI-S72UA2606
Diameter
:
26 mm
Thread
:
1"
Thread Direction
:
Male
Reiner Teschner
BONI-S72UA2606
Diameter
:
26 mm
Thread
:
1"
Thread Direction
:
Male
These pipe couplings work perfectly for their intended purpose.
BONI-S72UA2606
Diameter
:
26 mm
Thread
:
1"
Thread Direction
:
Male
Nico Wörsdörfer
BONI-S72UA2606
Diameter
:
26 mm
Thread
:
1"
Thread Direction
:
Male
Already bought these before and they work perfectly. They hold pressure really well without any leaks.
BONI-S72UA2606
Diameter
:
26 mm
Thread
:
1"
Thread Direction
:
Male
Jörg Kleemann
BONI-S72UA3205
Diameter
:
32 mm
Thread
:
3/4"
Thread Direction
:
Male
The screw fitting coupling made installation quick and secure. The O-rings provide good sealing, and the DVGW certification gives confidence in its reliability for drinking water systems.
BONI-S72UA3205
Diameter
:
32 mm
Thread
:
3/4"
Thread Direction
:
Male
Ludmila Klein
BONI-S72UA3205
Diameter
:
32 mm
Thread
:
3/4"
Thread Direction
:
Male
I would buy this again anytime. The quality is very good.
BONI-S72UA3205
Diameter
:
32 mm
Thread
:
3/4"
Thread Direction
:
Male
Ludger Kersting
BONI-S72UA2604
Diameter
:
26 mm
Thread
:
1/2"
Thread Direction
:
Male
Nicely manufactured pieces, perfect for my project I'm working on.
BONI-S72UA2604
Diameter
:
26 mm
Thread
:
1/2"
Thread Direction
:
Male
Kleanthi Bendeb
BONI-S72UA2604
Diameter
:
26 mm
Thread
:
1/2"
Thread Direction
:
Male
built with top quality, looks like stainless steel, non-magnetic. Time will tell.
BONI-S72UA2604
Diameter
:
26 mm
Thread
:
1/2"
Thread Direction
:
Male
Anna Heitbreder
BONI-S72UA2604
Diameter
:
26 mm
Thread
:
1/2"
Thread Direction
:
Male
everything is fine
BONI-S72UA2604
Diameter
:
26 mm
Thread
:
1/2"
Thread Direction
:
Male
Angelika Gaster
BONI-S72UA2604
Diameter
:
26 mm
Thread
:
1/2"
Thread Direction
:
Male
This compression fitting makes connecting pipes really simple. I like that it doesn't need special tools to install. The drinking water certification gives me peace of mind for my plumbing projects.
BONI-S72UA2604
Diameter
:
26 mm
Thread
:
1/2"
Thread Direction
:
Male
Harald Augsburg
BONI-S72UA2604
Diameter
:
26 mm
Thread
:
1/2"
Thread Direction
:
Male
This brass compression fitting makes pipe connections quick and tool-free. The O-rings seem to hold well, and the drinking water certification gives peace of mind. It threaded on easily with standard pipes.
BONI-S72UA2604
Diameter
:
26 mm
Thread
:
1/2"
Thread Direction
:
Male
Walter Szopuch
BONI-S72UA2604
Diameter
:
26 mm
Thread
:
1/2"
Thread Direction
:
Male
Build is excellent. It matches the other part's threading.
BONI-S72UA2604
Diameter
:
26 mm
Thread
:
1/2"
Thread Direction
:
Male
Want to know more about this product?
Questions
There are no questions yet
Ask a question to learn more about the product
4.8
69 reviews
Reviews (69)
Renato De Salvo
All the components are very well made.
Table of Contents
Discover the versatile 32mm compression fitting with a 1" female thread (IG), designed for easy and quick installation without the need for specialized crimping tools. This fitting provides a secure and lasting connection, making it an economical alternative to conventional press systems. All materials are safe for use with drinking water and comply with the UBA positive list. Two O-rings prevent the ingress of atmospheric oxygen, ensuring a reliable seal. Navigate this page to learn more:
Key Specifications
Our compression fitting offers you a reliable and straightforward solution for your pipe connections. Featuring a 32mm diameter and a 1" female thread (IG), it provides versatile compatibility. This means you get a durable connection that can be installed without specialized tools, simplifying your plumbing projects. It's ideal for use in various applications requiring a secure and leak-proof seal.
Technical Specifications
| Material | Brass |
| Size | 32mm x 1" Female Thread (IG) |
| Pressure Resistance | Up to 10 bar |
| Temperature Range | Up to 95°C |
| Certifications | DVGW, IMA, EN ISO 21003, GOST, Hygiene Certificate |
Product Features and Benefits
- Easy Installation: You don't need any crimping tools, saving you time and money.
- Economical Alternative: You save money compared to traditional pressing systems.
- Suitable for Drinking Water: All materials are harmless and comply with the UBA positive list, ensuring you have clean drinking water.
- Secure Seal: Two O-rings prevent the ingress of atmospheric oxygen, so your connections remain tight.
- Versatile Application: Suitable for drinking water installations, heating and cooling systems, and compressed air systems, giving you a wide range of uses.
Advantages
- No special tools required.
- Quick and easy installation.
- Economical alternative to pressing systems.
- Suitable for drinking water.
- High pressure and temperature resistance.
- Versatile in application.
- Long service life.
How to Use
- Step 1: Cut the pipe – Use a suitable tool to cut the pipe to the desired length.
- Step 2: Calibrate and deburr the pipe – After cutting, the pipe end must be calibrated and deburred with a calibrator.
- Step 3: Position the union nut and clamping ring – Position the union nut and clamping ring on the pipe as shown.
- Step 4: Insert the nipple – Fully insert the nipple of the main body into the pipe.
- Step 5: Tighten the union nut – Slide the clamping ring and union nut onto the fitting body until they stop. Tighten the union nut by hand.
- Step 6: Check the connection – Check the connection at the connection point.
Key Specifications
Our compression fitting offers you a reliable and straightforward solution for your pipe connections. Featuring a 32mm diameter and a 1" female thread (IG), it provides versatile compatibility. This means you get a durable connection that can be installed without specialized tools, simplifying your plumbing projects. It's ideal for use in various applications requiring a secure and leak-proof seal.
Technical Specifications
| Material | Brass |
| Size | 32mm x 1" Female Thread (IG) |
| Pressure Resistance | Up to 10 bar |
| Temperature Range | Up to 95°C |
| Certifications | DVGW, IMA, EN ISO 21003, GOST, Hygiene Certificate |
EU-Responsible Name: Boni-Shop GmbH; Hr. Stanislav Maer
EU-Responsible Street: Wissmannstraße
EU-Responsible House No: 58
EU-Responsible Post Code: 27755
EU-Responsible Town: Delmenhorst
EU-Responsible Country: Germany
EU-Responsible Email: [email protected]
EU-Responsible Phone Number: +49(0)4221 45 777 00

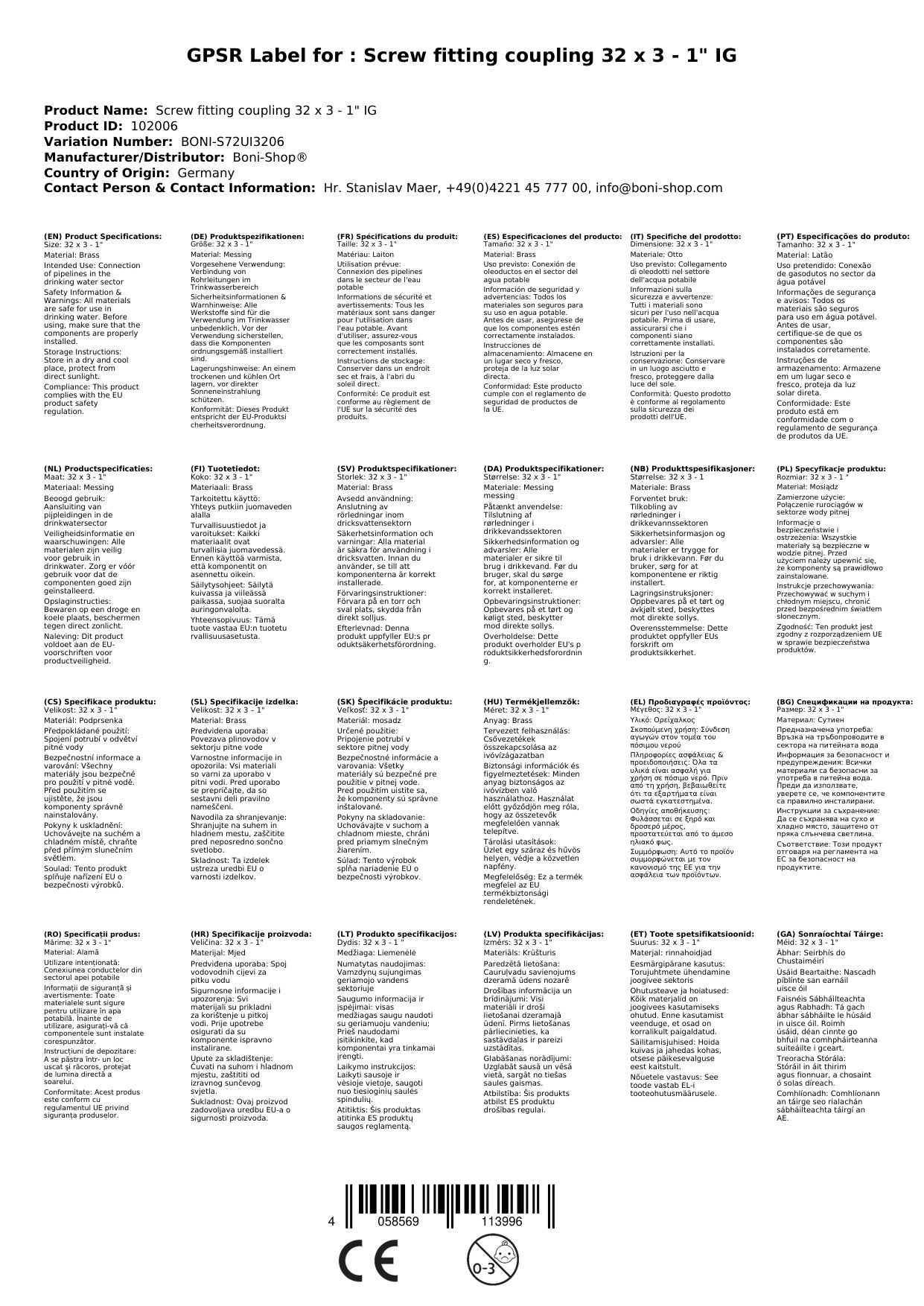

GPSR attachment:
