Screw Fitting Angle 20 x 2 - 1/2" IG

https://www.westfalia.uk/web/image/product.template/5610/image_1920?unique=cae6d62
62 reviews
6 sold in the last 24 hours
Diameter : 20 mm
Thread : 1/2"
Thread Direction : Female
UVP: 5.45 € -17%

4.54 € 4.54 EUR 4.54 € Pay 1.51 € now with Klarna

5.41 € 6.76 €

(0.00 € / Units)
* incl. VAT,   plus Shipping costs

3 people are viewing this right now
0.23 € Cashback with this purchase · 5 %
In Stock
About this item:
  • Screw fitting angle 20 x 2 – 1/2" IG for easy installation
  • High-quality material – suitable for drinking water (UBA list)
  • Two O-rings – protect against oxygen ingress
  • DVGW DW-85 certified – tested quality
  • Cost-effective alternative – installable without press tool
Secure Checkout
Guaranteed Secure Checkout
Contact us
Item number BONI-S72WI2004
Brand Boni-Shop®

Screw Fitting Angle 20 x 2 - 1/2" IG made-in-germany

Screw fittings for easy and quick assembly without pressing tool

Advantages:

  • Economic alternative to conventional press systems
  • All materials are safe for use in drinking water and comply with the UBA positive list
  • Two O-rings prevent the ingress of air oxygen



Properties:

dgvw   DVGW DW-8501CP0053

Screw Fitting Angle 20 x 2 - 1/2" IG-3   Continuous load capacity: 10 bar / 70° C / 50 years

Screw Fitting Angle 20 x 2 - 1/2" IG-4   Maximum operating temperature 95° C



Application areas:

Screw Fitting Angle 20 x 2 - 1/2" IG-5   Drinking water installations

Screw Fitting Angle 20 x 2 - 1/2" IG-6   Surface / ceiling heating

Screw Fitting Angle 20 x 2 - 1/2" IG-7   Surface / ceiling cooling

Screw Fitting Angle 20 x 2 - 1/2" IG-8   Radiator connection

Screw Fitting Angle 20 x 2 - 1/2" IG-9   Oil-free compressed air up to 10 bar



Certifications:

Screw Fitting Angle 20 x 2 - 1/2" IG-10   DVGW

Screw Fitting Angle 20 x 2 - 1/2" IG-11   IMA

Screw Fitting Angle 20 x 2 - 1/2" IG-12   EN ISO 21003

Screw Fitting Angle 20 x 2 - 1/2" IG-13   GOST

Screw Fitting Angle 20 x 2 - 1/2" IG-14   Hygiene Certificate



For a quick and secure pipe connection, you only need screw fittings, our composite pipe, a pipe cutter, and a calibrator.

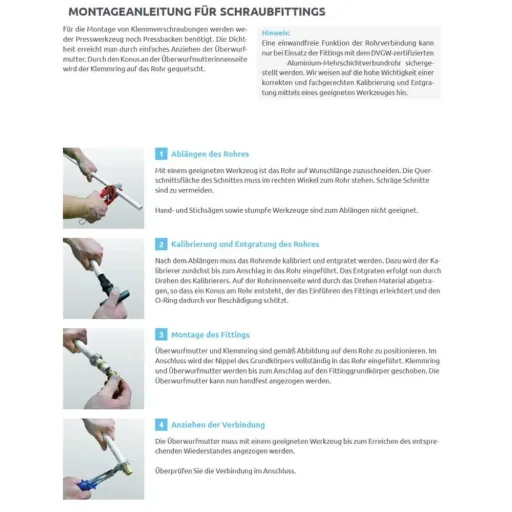

For better understanding, we have provided a pictorial assembly instruction with the photos.



Assembly instructions:

  • Cut the pipe to length with a suitable tool
  • After cutting, the pipe end must be calibrated and deburred with a calibrator
  • Position the union nut and clamping ring on the pipe as shown. Then fully insert the nipple of the base body into the pipe. Push the clamping ring and union nut onto the fitting base body until they stop. The union nut can now be hand-tightened.
  • The union nut must be tightened with a suitable tool until the appropriate resistance is reached.
    Check the connection afterwards.



Please note that the use of other composite pipes than those distributed by Boni-Shop is at your own risk.
A compliant connection exists for all press systems only with system-approved components (fittings and pipes that have been tested together)
This applies regardless of the manufacturer for all composite pipe systems.
