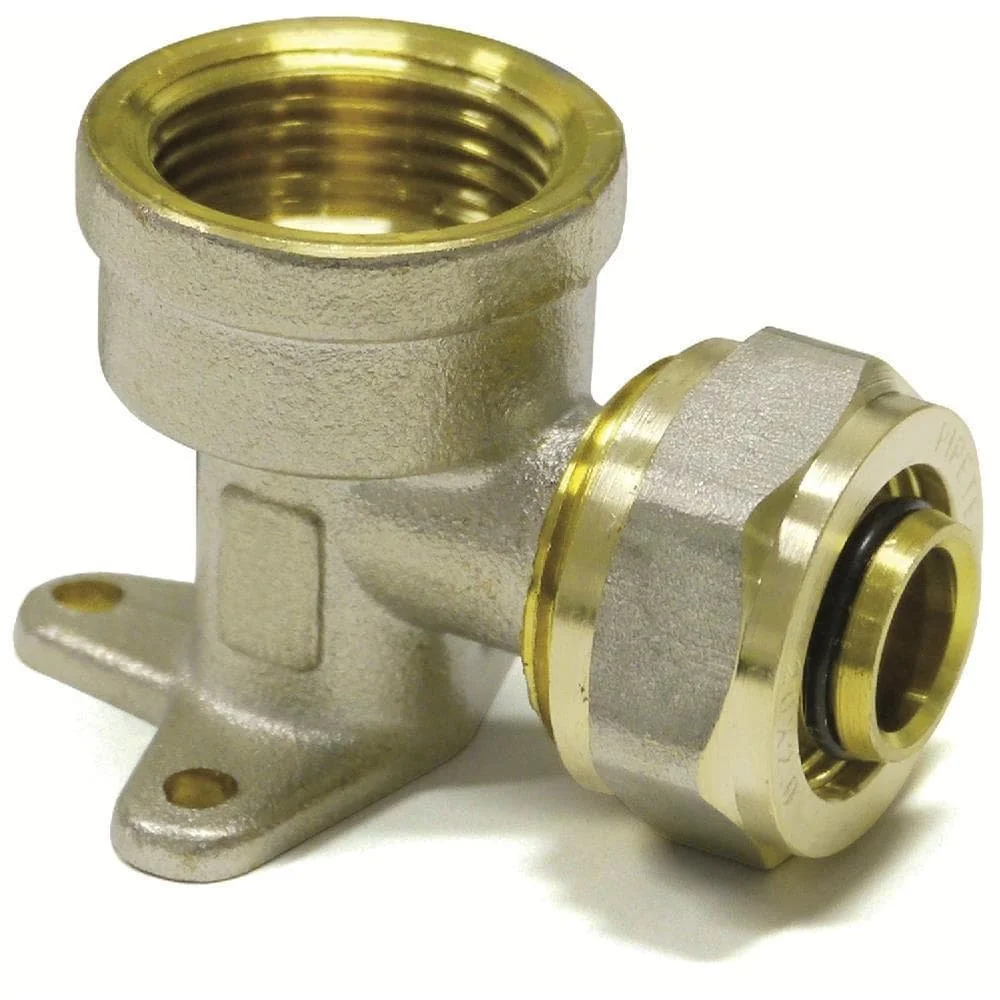

Screw fitting, wall elbow fitting, 16mm x 1/2" IG, pipe fitting, plumbing fitting

Screw fitting, wall elbow fitting, 16mm x 1/2" IG, pipe fitting, plumbing fitting

Looking for a reliable and easy-to-install solution for your plumbing needs? This screw fitting wall elbow provides a secure and leak-proof connection without the need for specialized tools. Ideal for both potable water and heating systems, this fitting offers a cost-effective alternative to traditional pressing systems. With certifications and durable construction, you can trust this fitting to deliver long-lasting performance.

Key Specifications

This screw fitting wall elbow is designed for easy installation and reliable performance. It features a 16mm pipe connection and a 1/2" female threaded connection, making it suitable for various plumbing applications. The fitting is made from materials compliant with potable water standards and can withstand temperatures up to 95°C. This ensures you get a durable and safe fitting for your plumbing system.

Technical Specifications

Product Features and Benefits

• Easy Installation: The screw fitting design allows you to quickly and easily install the fitting without the need for pressing tools. This saves you time and effort.
• Potable Water Safe: All materials used are safe for potable water, ensuring that your drinking water remains clean and uncontaminated. You can have peace of mind knowing your water supply is safe.
• Leak-Proof Design: Two O-rings prevent the ingress of atmospheric oxygen, ensuring a tight and leak-proof connection. You won't have to worry about drips or water damage.
• Durable Construction: Made from high-quality materials, this fitting is designed to withstand high pressure and temperature. You can rely on it for long-lasting performance.
• Versatile Application: Suitable for a variety of applications, including potable water installations, surface and ceiling heating, and radiator connections. You can use it in many different projects.
• Compliant with Standards: The fitting meets industry standards. You can be confident in its quality and performance.

Advantages of Our Product

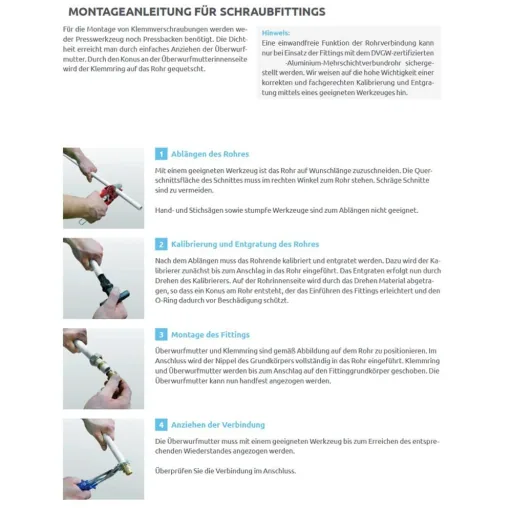

How to Use (Step-by-Step)

1. Step 1: Prepare the Pipe: Cut the composite pipe to the desired length using a pipe cutter. Ensure the cut is clean and square. (See Figure 1)
2. Step 2: Calibrate and Deburr: Use a calibrator to calibrate and deburr the end of the pipe. This ensures a proper fit and prevents damage to the O-rings. (See Figure 2)
3. Step 3: Position the Components: Slide the union nut and compression ring onto the pipe in the correct orientation as shown in the diagram. (See Figure 3)
4. Step 4: Insert the Fitting: Fully insert the fitting nipple into the pipe until it reaches the stop. (See Figure 4)
5. Step 5: Tighten the Nut: Slide the compression ring and union nut towards the fitting and tighten the nut by hand until snug. (See Figure 5)
6. Step 6: Final Tightening: Use a wrench to tighten the union nut further until you feel resistance. Do not overtighten. (See Figure 6)
7. Step 7: Test the Connection: After installation, test the connection for leaks by applying pressure to the system.
