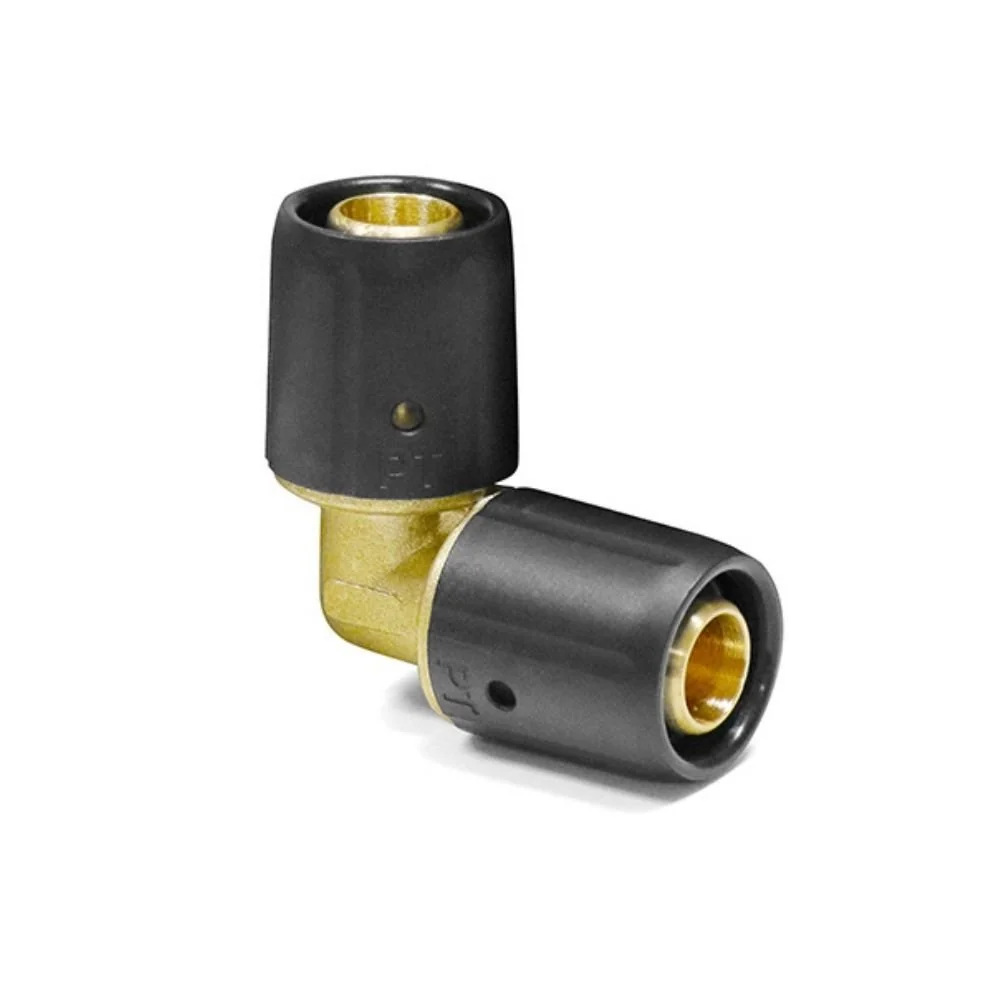

20mm Push Fit Elbow Connector - Quick Connect Plumbing Fittings
Diameter
: 20 mm
Geometry
: 90° Elbow
About this item:
- High-quality material – robust and durable
- Dimensions: 20 mm – precise Steckverbinder angle
- Steckfitting system – easy and quick assembly
- Ideal for drinking water and heating – permanently tight
- Tool-free installation – saves time and costs
Guaranteed Secure Checkout
| Item number | BONI-SPW2020 |
| Brand | Pipetec GmbH |
4.8
No images or videos found in reviews
Tilo Wendler
I often use these connectors and find them reliable. They work perfectly for my plumbing projects. Highly recommend!
Detlev Kuhlmann
BONI-SPK2020
Diameter
:
20 mm
Geometry
:
Straight
The 20mm push fit coupling is straightforward to use and makes pipe connections hassle-free. The inspection windows are a nice touch, allowing you to confirm everything is properly seated. It’s reassuring that it’s safe for drinking water systems, and the ...
BONI-SPK2020
Diameter
:
20 mm
Geometry
:
Straight
Peter Moranski
BONI-SPK2020
Diameter
:
20 mm
Geometry
:
Straight
This push fit coupling made pipe connections incredibly straightforward. The tool-free installation was a huge time-saver, and the inspection windows gave me confidence that everything was properly fitted. It felt durable and secure, which is exactly what ...
BONI-SPK2020
Diameter
:
20 mm
Geometry
:
Straight
Uwe Pane
BONI-SPK2020
Diameter
:
20 mm
Geometry
:
Straight
This push fit coupling makes pipe connections a breeze. The no-tool installation is really convenient, and the inspection windows give me confidence that everything is seated properly. Works well for my plumbing needs.
BONI-SPK2020
Diameter
:
20 mm
Geometry
:
Straight
Sonja Ortmanns
BONI-SPK2020
Diameter
:
20 mm
Geometry
:
Straight
This push-fit coupling makes pipe connections a breeze. The no-tool installation is super convenient, and the inspection windows give me confidence that everything is seated properly. It feels sturdy and well-made for plumbing projects.
BONI-SPK2020
Diameter
:
20 mm
Geometry
:
Straight
Questions
There are no questions yet
Ask a question to learn more about the product
4.8
5 reviews
Reviews (5)
Tilo Wendler
I often use these connectors and find them reliable. They work perfectly for my plumbing projects. Highly recommend!
Reliable 20mm Push Fit Elbow Connector
Looking for a simple and secure way to connect pipes? Our 20mm push fit elbow connector offers quick installation without special tools and ensures permanently tight connections. Ideal for drinking water installations, radiator connections, and more.
Product Features and Benefits
- No Press Tool Required: Save time and money because you do not need expensive special tools. You simply plug the pipes together.
- High-Quality Plastic PA6: The outer sleeve is made of durable, high-performance plastic PA6 and offers maximum impact resistance, reliably protecting the connection.
- Automatic Sealing: The EPDM wedge seal with a large safety buffer ensures automatic and permanent sealing, so you don't have to worry about leaks.
- Brass Parts Made of CW617N: The heavy brass parts made of CW617N (CuZn40Pb2) guarantee high assembly reliability and long service life.
- Low Pressure Loss: The very good resistance coefficient (Zeta) ensures lower pressure loss, which increases the efficiency of your installation.
- Free Passage: Enjoy free passage and virtually no flow noise, which ensures smooth operation.
- Safe for Drinking Water: All materials are harmless for use in drinking water and comply with the UBA positive list, so you don't have to worry about your health.
- Inspection Window: Two inspection windows allow you to easily check the insertion depth and ensure correct installation.
Advantages of Our Push Fit Elbow Connector
- Easy and Quick Installation: No special tools required – simply plug and you're done!
- High Safety: The automatic seal and robust materials ensure a permanently tight and secure connection.
- Versatile Application: Ideal for drinking water, heating, and cooling installations, as well as oil-free compressed air systems.
- Durability: The high-quality materials and careful workmanship guarantee a long service life.
- Drinking Water Certification: All materials are approved for use in drinking water systems.
- Cost Saving: No expenses for expensive press tools and shorter installation time.
- Quality Standards: Meets the highest quality standards.
How to Use the Push Fit Elbow Connector: Step by Step
- Step 1: Cut the Pipe to Length: Cut the pipe to the desired length with pipe shears. Ensure a clean, right-angled cut.
- Step 2: Calibrate and Deburr the Pipe: Use a calibrator to calibrate and deburr the pipe end. This ensures that the pipe is round and has no sharp edges.
- Step 3: Install the Fitting: Insert the fitting with adequate pressure and in an axial direction until it stops on the pipe end.
- Step 4: Check the Insertion Depth: Check the correct insertion depth through the two integrated inspection windows. Both inspection windows must be filled by the pipe.
- Step 5: Test: Check the pipe for a tight fit. It must no longer be able to be pulled out. Be sure to carry out a pressure and leak test!
Technical Specifications
| Property | Value |
| Material | Brass CW617N (CuZn40Pb2), Plastic PA6, EPDM |
| Size | 20 x 2 to 20 x 2 mm |
| Operating Temperature | Max. 95° C |
| Continuous Load Capacity | 10 bar / 70° C / 50 Years |
| Certification | (except ball valve for heating), IMA, EN ISO 21003 |
