The Flexible Composite Pipe for Your Installations
This high-quality multilayer composite pipe is the ideal solution for heating, cooling, and sanitary applications. It combines the advantages of synthetic material and aluminum, offering you maximum flexibility and resistance. Discover the diverse applications and benefit from easy installation.
Product Features & Benefits
- High Temperature and Pressure Resistance: You can safely use the composite pipe for applications with temperatures up to 95°C and a pressure of maximum 10 bar.
- Versatile Applications: Whether it's underfloor heating, radiator connection, drinking water installation, or cooling systems – this pipe is suitable for many applications.
- Low Thermal Linear Expansion: Prevents stresses and deformations in your installation.
- Absolutely Gas-Tight: Thanks to the butt-welded aluminum layer, the pipe is absolutely gas-tight.
- Corrosion-Free: Enjoy a long service life without corrosion.
- No Incrustation: The smooth inner pipe surface prevents deposits.
- Low-Noise: Benefit from quiet operation of your installation.
- UV Resistance: When stored unprotected, the pipe is UV-resistant for at least 6 months.
- Chemical Resistance: The pipe is resistant to numerous chemicals.
- High Flexibility: Despite its high flexibility, the pipe is dimensionally stable and easy to work with.
- Lightweight: Significantly lighter than metal pipes, which simplifies handling.
Advantages of the Multilayer Composite Pipe
- Versatility: Suitable for heating, cooling, and sanitary applications.
- Durability: High resistance to temperature, pressure, and UV radiation.
- Easy Installation: Flexible and dimensionally stable for quick and uncomplicated installation.
- Corrosion Resistance: No rust formation, ideal for drinking water installations.
- Low Weight: Lighter than conventional metal pipes, which simplifies handling.
- Low Thermal Expansion: Reduces stresses and minimizes the risk of damage.
- Oxygen Tightness: Prevents the penetration of oxygen and protects the heating system from corrosion.
Application of the Composite Pipe (Step-by-Step)
- Step 1: Cut the pipe to length – Use a pipe cutter for a clean cut.
- Step 2: Deburr and calibrate – Remove sharp edges and ensure the correct inner diameter.
- Step 3: Slide on the fitting – Ensure the fitting sits correctly.
- Step 4: Crimp – Use a suitable crimping tool for a tight connection.
- Step 5: Leak test – Check the connection for leaks.
Technical Data
| Property | Value |
| Diameter | 20 mm |

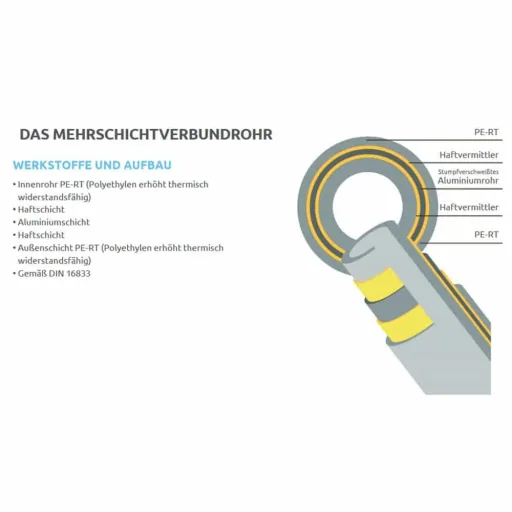

| Material | PE-RT/Al/PE-RT |
| Max. Temperature | 95°C |
| Max. Pressure | 10 bar |
| Length | 10 m |
EU-Responsible Name: Boni-Shop GmbH; Hr. Stanislav Maer
EU-Responsible Street: Wissmannstraße
EU-Responsible House No: 58
EU-Responsible Post Code: 27755
EU-Responsible Town: Delmenhorst
EU-Responsible Country: Germany
EU-Responsible Email: [email protected]
EU-Responsible Phone Number: +49(0)4221 45 777 00

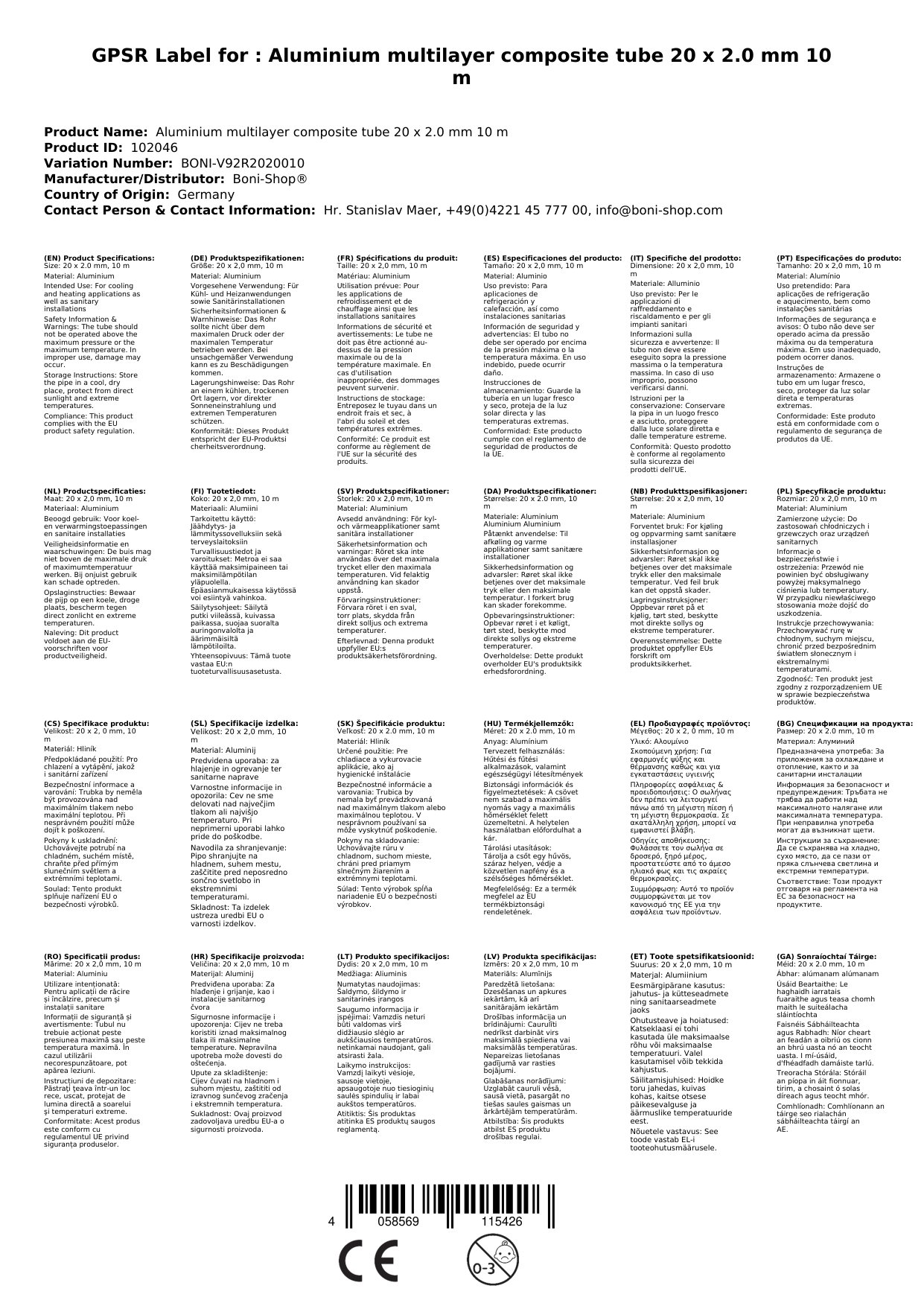

GPSR attachment:
