Chipboard screws
In this category you will find chipboard screws with countersunk head and milling ribs, which enable flush countersinking and prevent the screw from pulling out. The screws have a partial thread, are electro-galvanized yellow and feature an I-Star drive that is also compatible with Torx bits – ideal for furniture construction and wood joints.
Buy chipboard screws — Guide &Tips
In the chipboard screws category you will find 76 items specifically designed for connecting chipboard and other wood-based materials. The key feature of these screws is the countersunk head with milling ribs under the head. These ribs neatly countersink the wood as the screw is driven in so that the head sits flush with the surface – without the need for pre-drilling. At the same time, the milling ribs prevent dreaded "strip-out" (over-tightening) and ensure a clean, crack-free countersinking.
All chipboard screws in this range are equipped with a partial threadequipped. This means: the upper, smooth shaft area pulls the panels firmly together, while the lower thread ensures a secure hold in the material. The screws areelectro-galvanized yellow – a corrosion protection coating that is completely sufficient for indoor use in furniture construction and wood joints. For outdoor use or damp rooms, however, you should opt for stainless steel alternatives.
Thedrive is an internal hexalobular profile (often referred to as I-star), which is optimally compatible with Torx bits. This profile transmits force without the risk of rounding and enables fatigue-free work – especially important when driving many screws. When selecting, pay attention to the correct length and diameter: For thin chipboard panels (10–16 mm), 3.0 x 35 mm are sufficient; for standard panels (18–22 mm), 3.5 x 50 mm or 4.0 x 60 mm are the right choice. For thick joints or multi-layer constructions, use 4.5 x 70 mm or 5.0 x 80 mm.
Typical areas of application arefurniture construction (Shelves, cabinets, bed frames), interior construction (claddings, substructures) as well as wood connections in the hobby and garden area. If you mainly work with solid wood or multiplex, you should take a look at the parent category Screws – there you will also find wood screws with full thread and other drive types.
Popular chipboard screws
The following three products cover the most frequently requested sizes and are suitable for most standard applications in furniture construction and wood connections. They represent the typical diameter and length classes that both DIY enthusiasts and professionals demand.
Chipboard screws 3.5 x 50 mm, 500 pcs
Countersunk head, partial thread, hexalobular internal – the all-round size for standard chipboard (16–22 mm). Ideal for shelves, cabinet backs and furniture connections.
Chipboard screws 4.5 x 70 mm, 200 pcs
For thick panels (22–28 mm) and multi-layer connections. The larger diameter provides higher pull-out strength – suitable for heavy furniture and substructures.

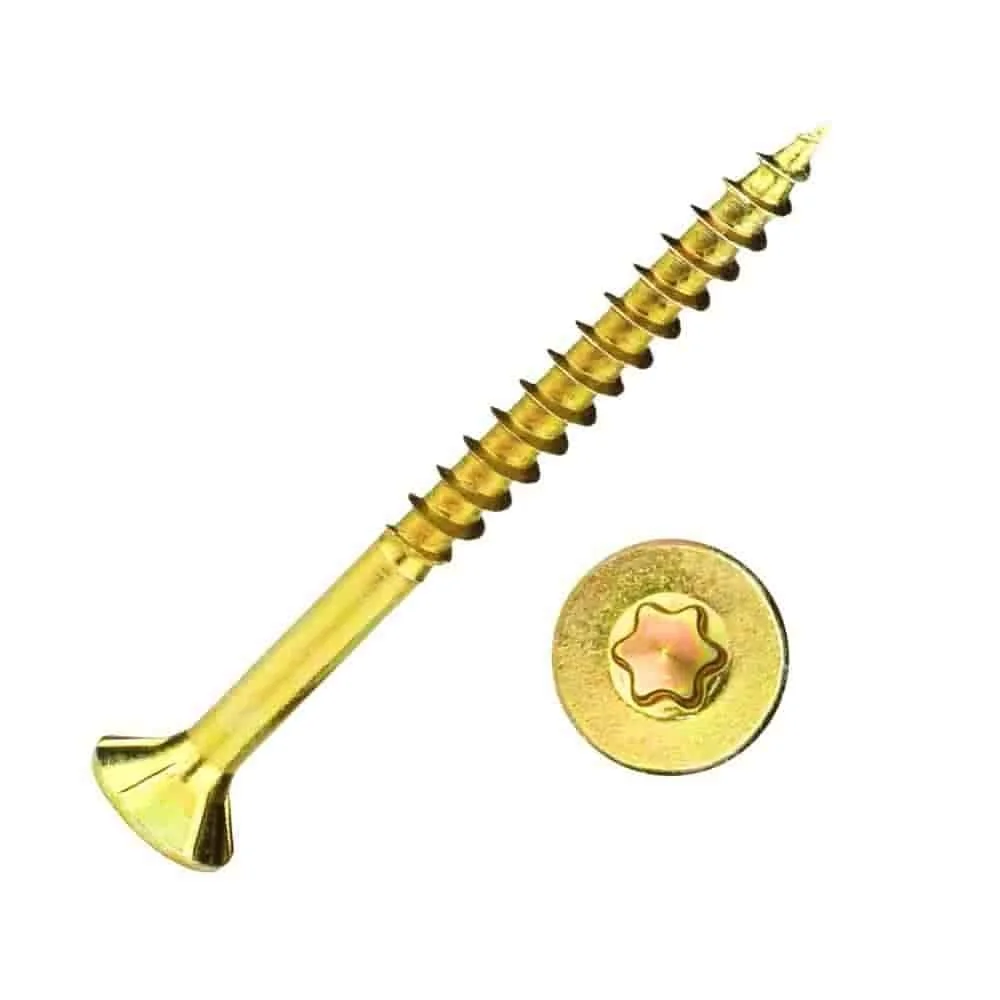

Chipboard screws 3.0 x 45 mm, 1000 pcs
The slim variant for thin panels (10–16 mm) and delicate work. The 1000-pack pays off for series production or when many small connections are needed.
The 3.5 x 50 mm are the best-selling classic – they fit almost any standard chipboard and are economical in the 500-pack. The 4.5 x 70 mm are recommended when you expect higher loads, such as for heavy-duty shelves or workbenches. The thin 3.0 x 45 mm are ideal for lightweight panels, back panels, or decorative work where clean, invisible countersinking is key. All three sizes share the proven combination of countersunk head with milling ribs, partial thread, and Torx-compatible drive.
Frequently Asked Questions about Chipboard Screws
Why do chipboard screws have a partial thread?
The partial thread fulfills two functions: The lower threaded section anchors the screw firmly in the lower material. The upper smooth shank section, on the other hand, pulls the upper panel downward without friction – creating a tight, gap-free connection. With a full thread screw, the thread would 'bite' into the upper material and the panels would not be drawn together cleanly. For chipboard, the partial thread is therefore the only sensible choice.
Can I also use chipboard screws in solid wood?
Yes, it is generally possible, but not optimal. In solid wood or plywood, you are better off using special wood screws with full thread and a different tip geometry. Chipboard screws with partial thread may not generate enough tensile force in solid wood with thick boards under certain circumstances. However, they are sufficient for light connections or if you only occasionally screw into solid wood. For pure solid wood work, we recommend taking a look at the category Screws, where you can also find wood screws with full thread.
Do I need to pre-drill for chipboard screws?
Generally not. The milling ribs under the countersunk head and the special thread geometry are designed so that the screw penetrates cleanly without pre-drilling. For very hard chipboard (e.g., waterproof glued boards) or for screws from 5.0 mm diameter, pre-drilling with a thin drill bit (approx. 2.5–3.0 mm) can facilitate penetration and prevent the board edge from splitting. For standard chipboard (16–22 mm) and common sizes up to 4.5 mm, pre-drilling is not necessary.
Which bit fits chipboard screws with I-star drive?
The I-star drive is compatible with standard Torx bits. For most chipboard screws in this category, a Torx bit of size T10 or T15 is required – check the exact size on the packaging. Use a high-quality bit made of hardened steel, as cheap bits can wear out under high torque. The advantage of the Torx profile: it transmits the force axially and prevents slipping, which is especially important with high-torque cordless screwdrivers.
Other categories – alternatives and supplements
If you need other fasteners in addition to chipboard screws, it is worth looking at related categories. The parent category Screws brings together all screw types – from wood screws to sheet metal screws to machine screws. There you will also find variants with full thread, other head shapes (pan head, cylinder head) or different drives (Phillips, hex socket).
For special applications such as outdoor areas or damp rooms (e.g., deck construction, garden furniture), you should use stainless steel screws (A2 or A4), which are also listed in the Screws category. Even if you mainly work with solid wood or multiplex, the wood screws with full thread there are often the better choice. However, chipboard screws remain the specialist for all connections where chipboard, MDF or OSB boards meet – here they are unbeatable in terms of countersinking ability and holding power.
In brief
Chipboard screws with countersunk head, milling ribs and partial thread are the optimal choice for clean, crack-free connections in chipboard, MDF and OSB. The Torx-compatible I-star drive prevents slipping, the yellow passivation protects against corrosion indoors. Choose the size according to board thickness: 3.0 x 45 mm for thin boards (10–16 mm), 3.5 x 50 mm as an all-rounder (16–22 mm) and 4.5 x 70 mm for thick boards (22–28 mm) or multi-layer constructions. Pre-drilling is not necessary for standard boards. For solid wood or outdoor areas, it is better to use specialized alternatives from the Screws category.
