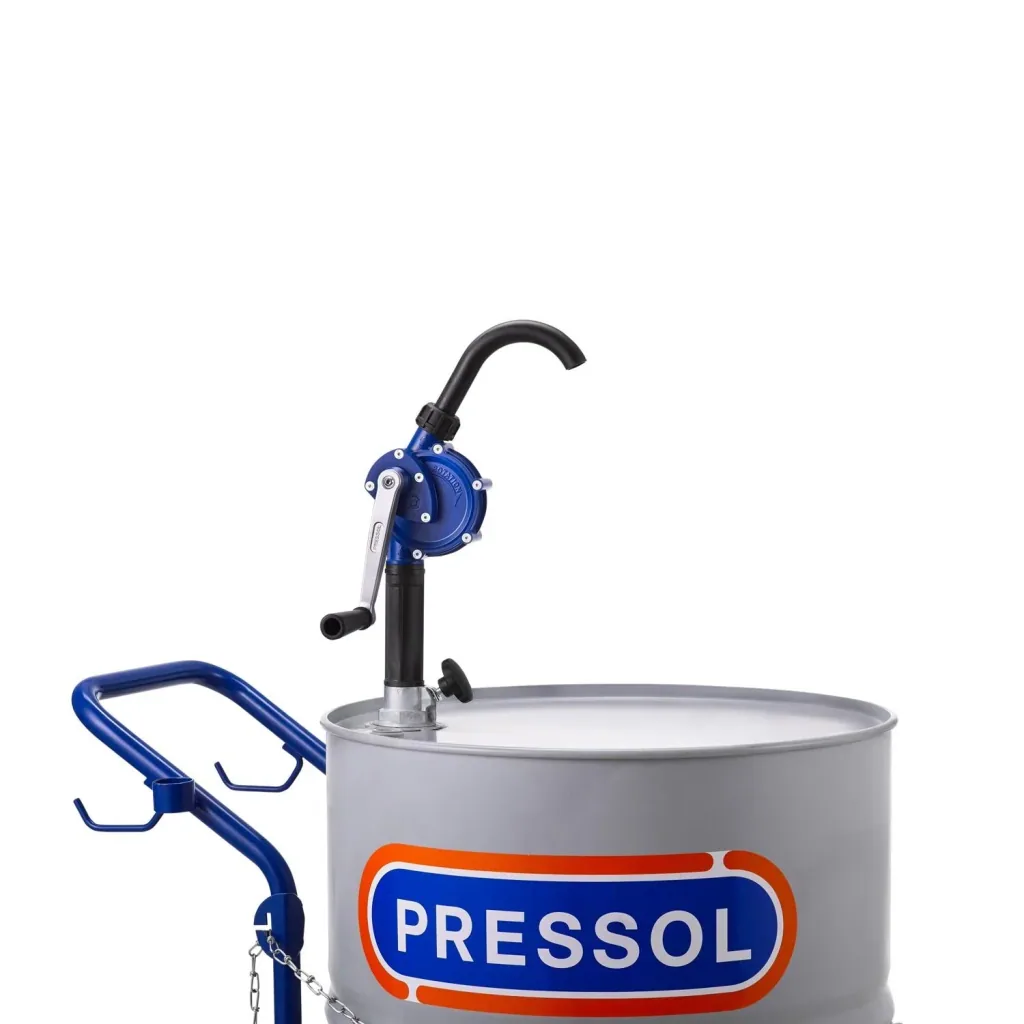

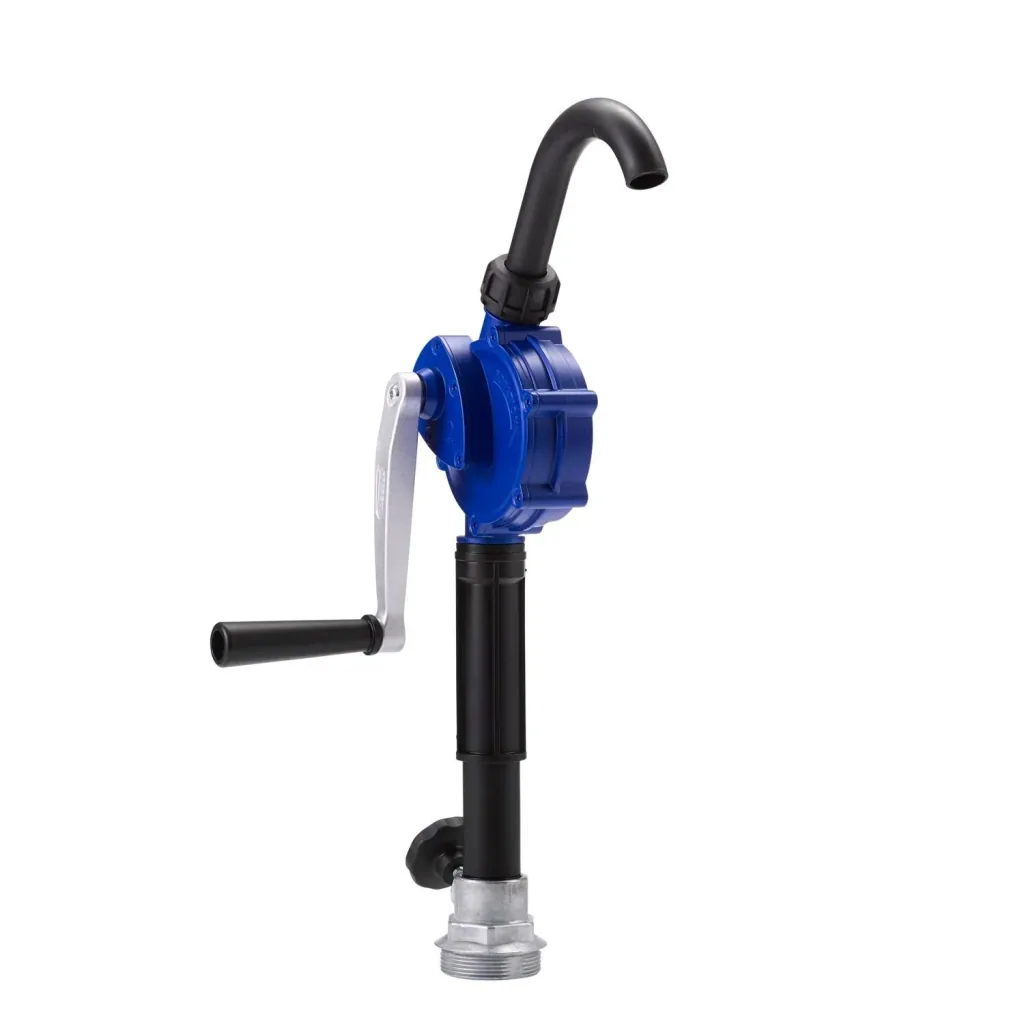

Crank pump SRL 355-955mm - 18 l/min
Guaranteed Secure Checkout
| Item number | WF-122705 |
| Brand | Pressol |
Reviews
There are no reviews yet — yours could be the first
Share your experience with this purchase and help other customers make the right choice
Questions
There are no questions yet
Ask a question to learn more about the product
0.0
0 reviews
Specification:
- Telescopic suction pipe adjustable in length (from 355 to 955 mm)
- With suction filter
- Barrel adapter G 2''
- Discharge elbow
Special features:
- Smooth hand crank operation without irritation
- Excellent suction power due to the highest component precision
- Very compact design
- Impact-resistant pump housing
- Non-slip handle
- Sealing of the individual components is carried out exclusively by means of gaskets
- Assembly, commissioning and container change without tools
- Completely disassemblable - easy to clean
- 3-year warranty when using the supplied suction basket (without Wear parts)
Technical specifications:
- Flow rate (l/revolution): 0.3
- Flow rate at 60 revolutions/min (l/min): 18 (diesel)
- Flow media: Oils up to SAE 90, self-lubricating, non-aggressive media, heating oil, diesel, petroleum
- Use: Container for 60/200/220 l

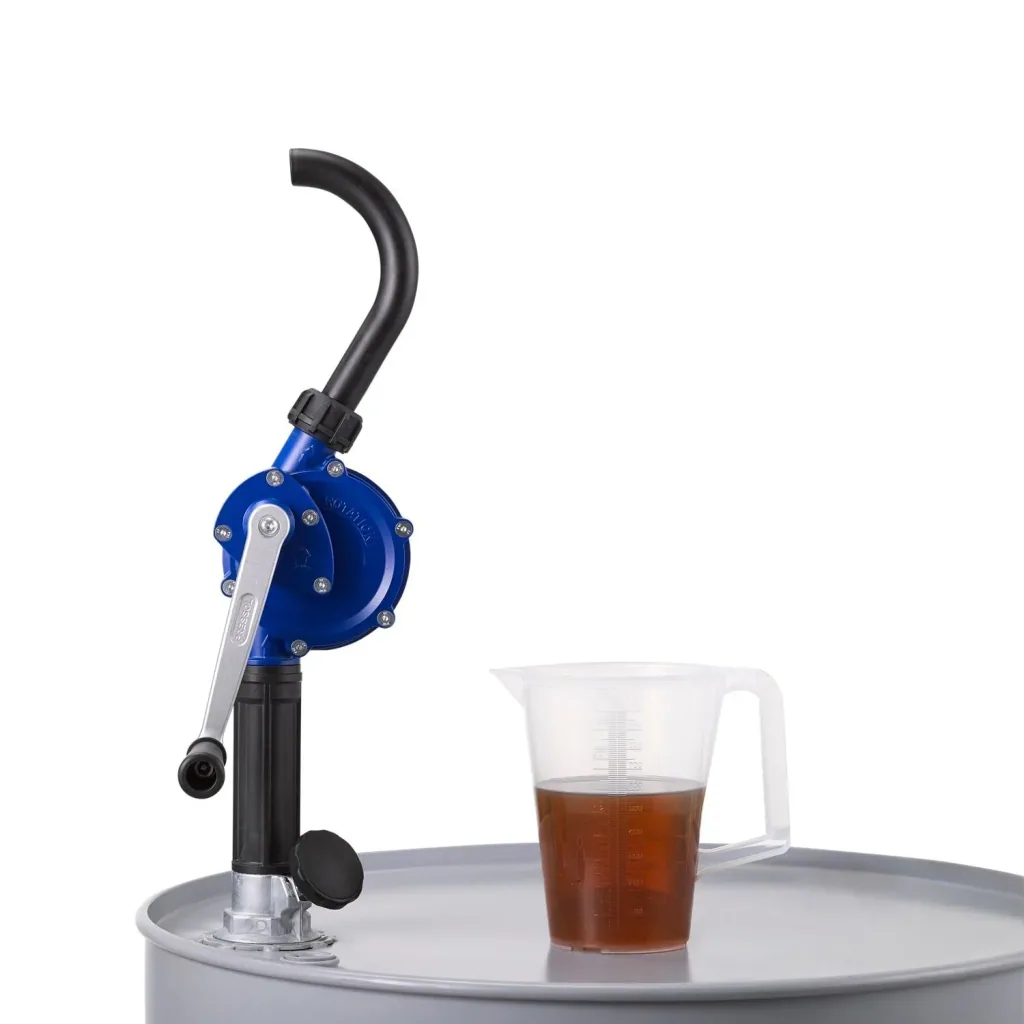

- Application: for filling measuring vessels, measuring cups, storage cans and canisters
- Outlet: Outlet elbow
- Length of three-part suction pipe (mm): 355 - 955
- Drum screw connection: G 2'' a
- Pump housing material: impact-resistant Die-cast
Suitable for all types of oil, self-priming. Ideal for agriculture, industry, and commerce. (Not food-safe)
Note: Not suitable for gasoline, water, or food (juice or wine). The interior is not made of stainless steel.
| Technical features | |
|---|---|
| Technical features | Suitable for all oils |
| Drive | |
| Drive | Manual |
| Connection size | |
| Connection size | 1 |
| Flow rate | |
| Flow rate | 30 l/min |
| Maximum immersion depth | |
| Maximum immersion depth | 980 mm |
