Profi OBD II Diagnose Scanner

• Diagnosis of OBDII data
• Live data acquisition and recording
• With easy-to-read graphic display for viewing or playing back live data
• Printing data on a PC
• Thanks to its robustness, it is ideal for professionals in automotive workshops, but also suitable for laypeople, as the self-explanatory menu navigation makes operation very easy
• Reading error codes and live data
• Extensive display of sensor information (lambda, EGR, fuel, ignition, air conditioning, injection system sensor, etc.)
• Reads general OBDII codes (P0, P2, P3, U0) and manufacturer-specific codes (P1, P3, U1), with error code interpretation
• Reads and clears OBD II, EOBD, JOBD error codes (DTC), and resets the check engine light back
• Display of inspection/maintenance
• Turns off the check engine light (MIL)
• Monitor and component testing
• Freeze frame information
• Reads the chassis number on all vehicles from 2002 that support Mode 9
• Internal error code table for searching by code number
• Large LC display, 128 x 64 pixels with backlight - adjustable contrast
• Incl. CD with DTC database for PC
• Power supply: On the vehicle via OBD socket
• Stand-alone via 9 V block battery
• PC via USB
• Data output via serial interface on the PC
• Plain text error output (5 languages: German, English, Dutch, Spanish, and French, adjustable)
• The following protocols are supported: US vehicles from 1996 (cars, vans, trucks, SUVs) with OBD-2, European/Asian vehicles from 2001 with OBD-2 (diesel from 2004)
• Protocols: CAN, VPW, PWM, ISO9141, KW 2000

Battery required if recorded data is retrieved outside of a vehicle should.

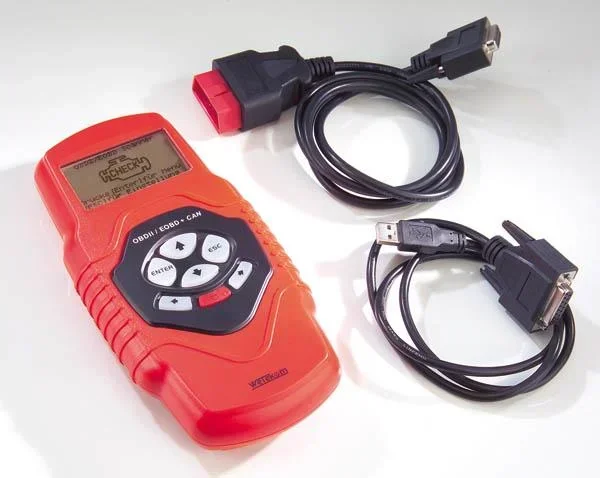

Scope of delivery:

• OBDII handheld
• Diagnostic scanner
• OBDII cable
• USB cable
• CD with DTC database
• Storage bag
