Juice Booster 2 Mobile Charging Station TYPE 2 Basic Set EU

Wallbox & mobile charging station JUICE BOOSTER 2 | Basic

The JUICE BOOSTER 2 from Juice Technology is a particularly versatile charging solution for electric cars or motorcycles with a Type 2 charging connection. It can be used as a wallbox, as a Type 2 cable for public charging stations, or as a mobile charging option (3-in-1). With its output power of up to 22 kW, you can always charge your electric vehicle as quickly as possible – at virtually any power outlet worldwide. Thanks to specially developed connection adapters and extensive safety features, incorrect operation is impossible. Furthermore, the cable is particularly robust, yet lightweight and compact.

Simple operation with maximum safety. With the JUICE BOOSTER 2, charging your vehicle is as easy as charging a smartphone. Connect the JUICE BOOSTER 2 to the existing power outlet using the appropriate safety adapter cable. Then plug the Type 2 connector into the vehicle's charging socket. The JUICE BOOSTER 2 uses a special cam coding in the safety adapter to detect the available current and voltage. The JUICE BOOSTER 2 is 100% compliant and meets the highest safety standards (IP67 and IK10). It is also the only mobile charging station to offer residual current protection against DC and AC fault currents, eliminating the need for expensive on-site installation. This feature also fully protects other consumers in the circuit.

Features

• Protective conductor monitoring
• Country adaptations (UK, FR, NO)
• Outstanding heat dissipation
• Frost-proof
• Very robust (can withstand wheel loads of up to 2.6 tons).

Technical specifications

• Input current: 230 V, 6 - 32 A (single-phase) AC or 400 V, 6 - 32 A (3-phase) AC
• Output power: depending on input current: 1.4 - 22 kW AC
• Operating temperature: -25°C to +45°C
• Conformity: IEC 62752, 62196, 61851, Mode 2/3, EMC, RoHS
• Protection class – FI – Safety: IP67 – RCD DC 6 mA, AC/DC 30 mA

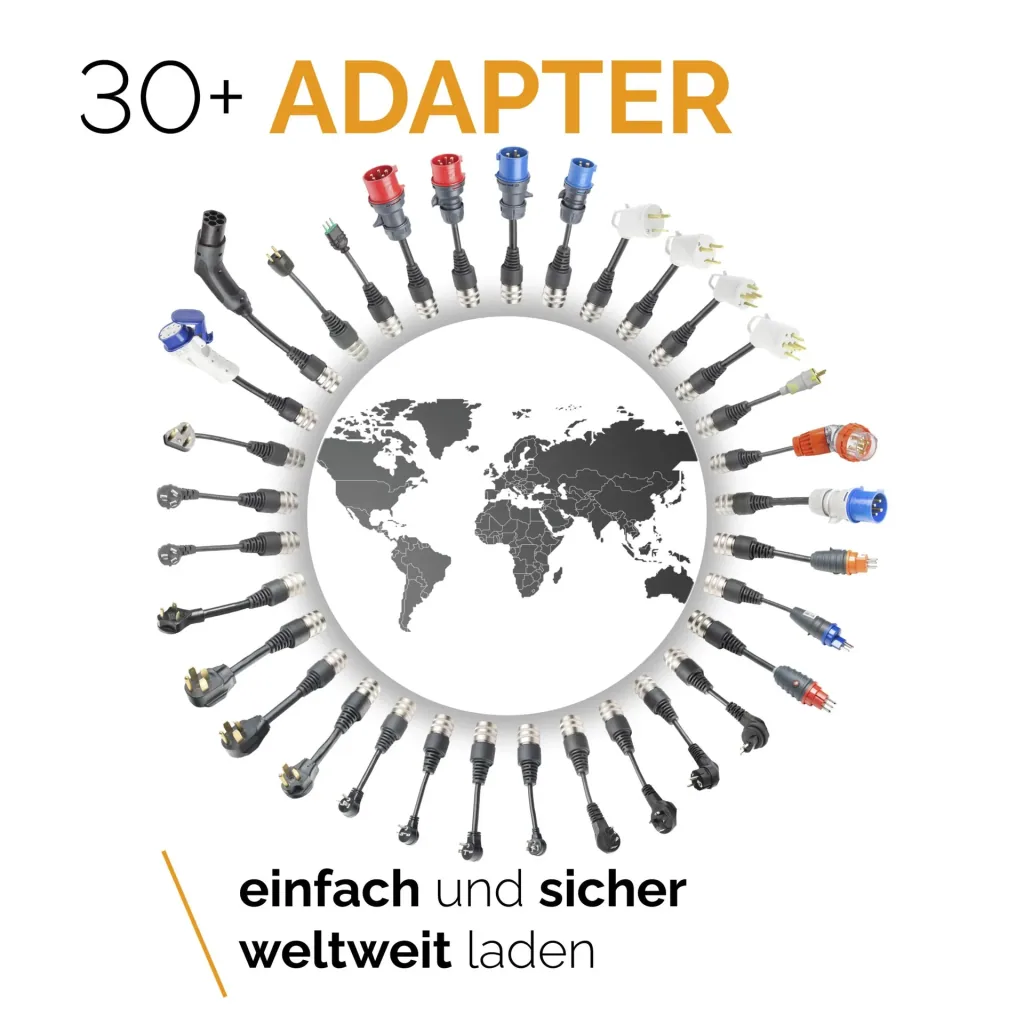

• Plug on the mains side: over 30 self-detecting adapters available for household, industrial and EV sockets, supply cable 1.4 m + adapter approx. 30 cm
• Coupling on the vehicle side: Type 2/Type 1 (IEC 62196), cable length: 3.1 m
• Dimensions: Diameter: 70 mm, Length: 225 mm
• Color: anthracite metallic, cable: black
• Material: anodized aluminum
• Weight: 1 kg without cable; 3.2 kg with cable and plug

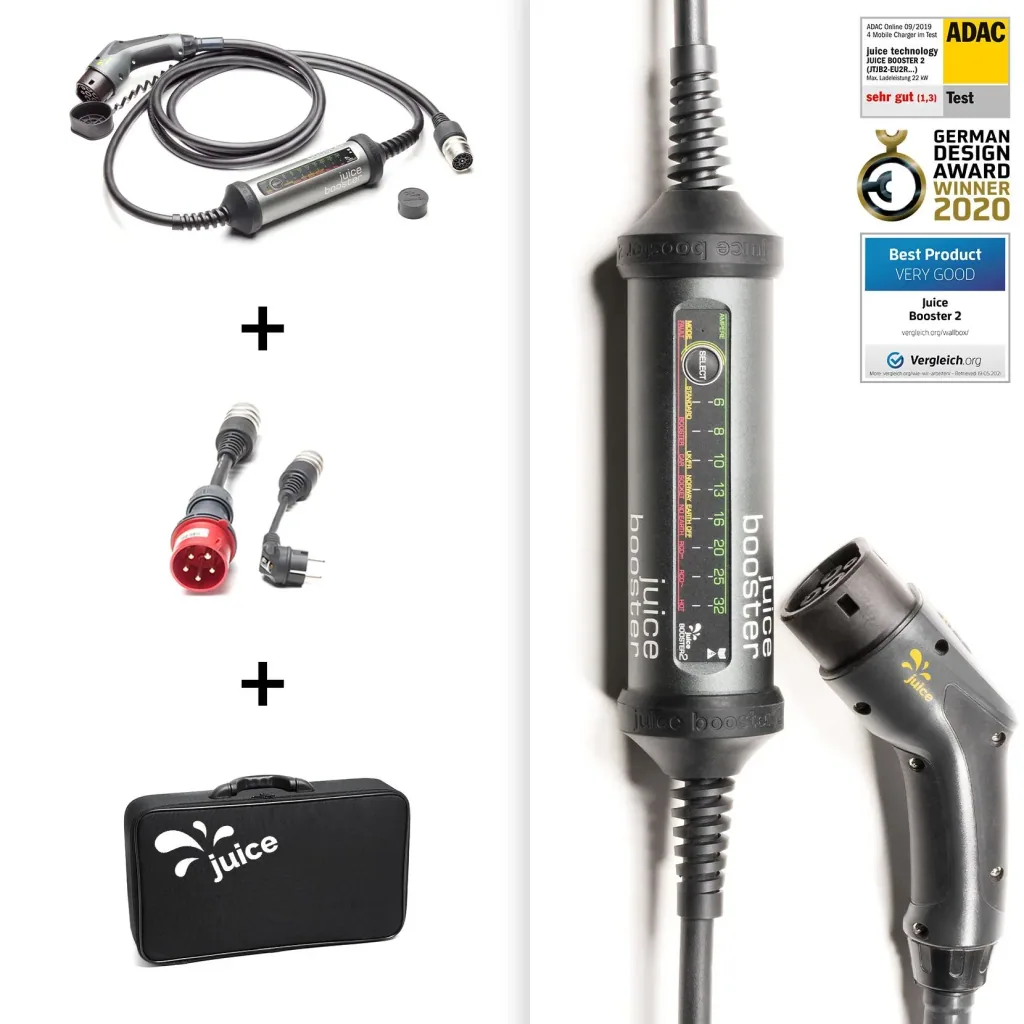

Scope of delivery

• Mobile charging station JUICE BOOSTER 2
• Heavy-duty cable 400V, 32A, 3-phase with control signal conductors

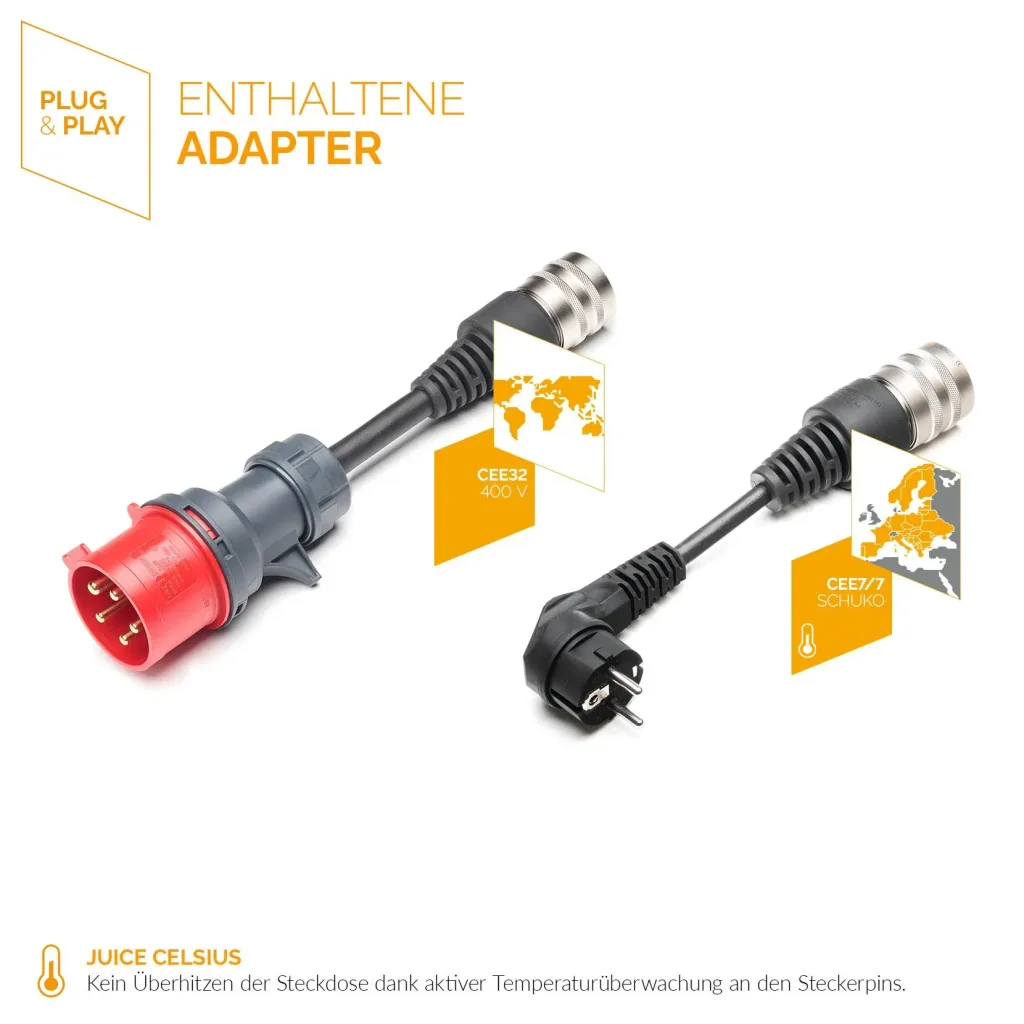

• 2 adapters: CEE-32 400 V, protective contact 7/7 230 V
• Carrying bag (fire-retardant)
