Wireless rear view camera system TX-170

Wireless rear view camera system TX-170

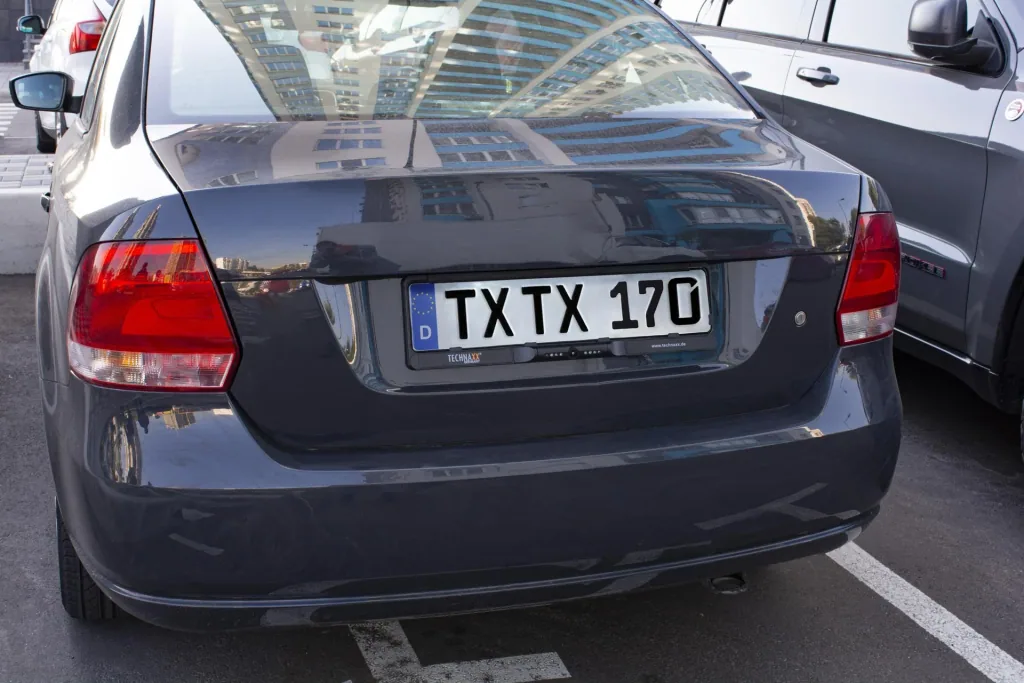

• Unobtrusive rear view camera in the license plate holder
• Suitable for most vehicles as an aid when reversing
• Wireless video transmission up to 15m

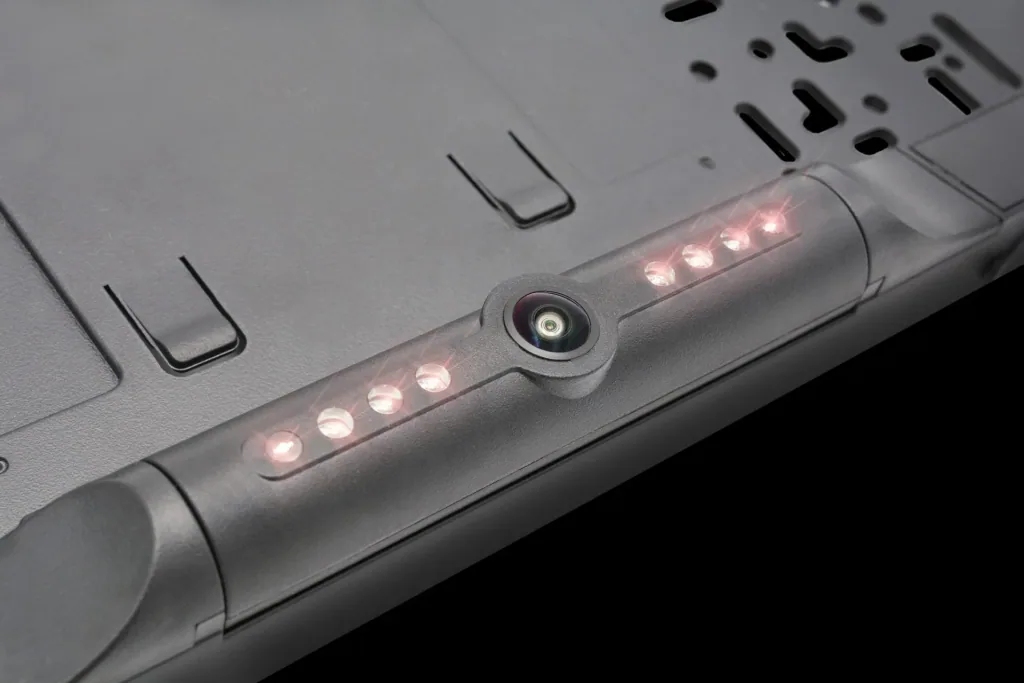

• IR LED for night vision ~2m
• Adjustable camera orientation & 135° field of view
• Camera with protection class IP67 (dustproof & protected against temporary submersion)

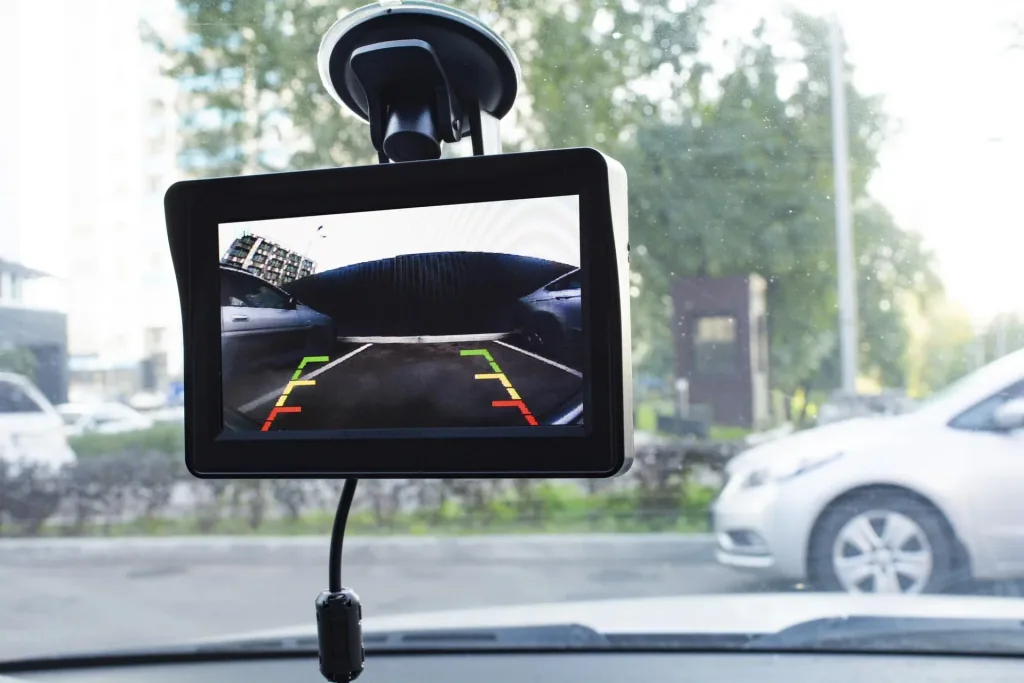

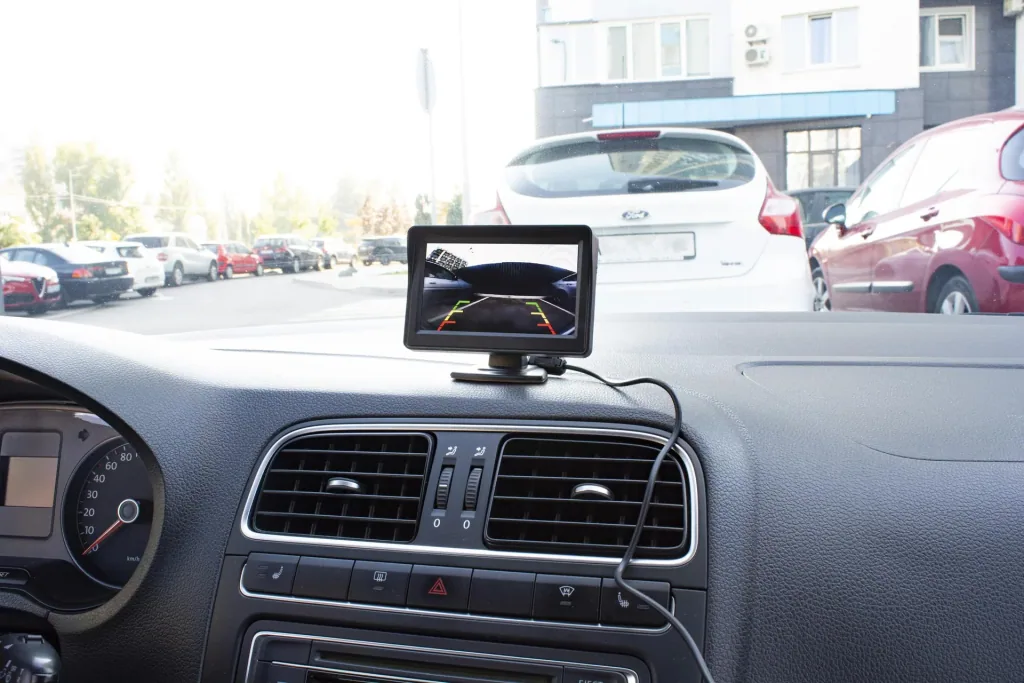

• 4.3" (10.9cm) TFT-LCD monitor with 480x272 pixels

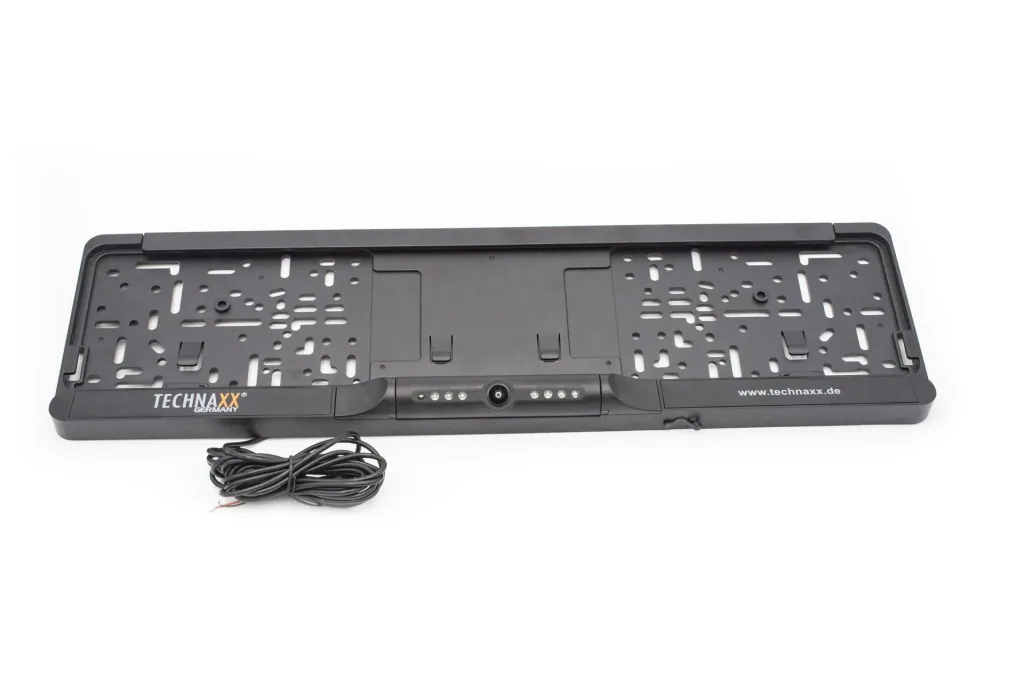

• License plate holder suitable for single-line license plates (52x11cm)

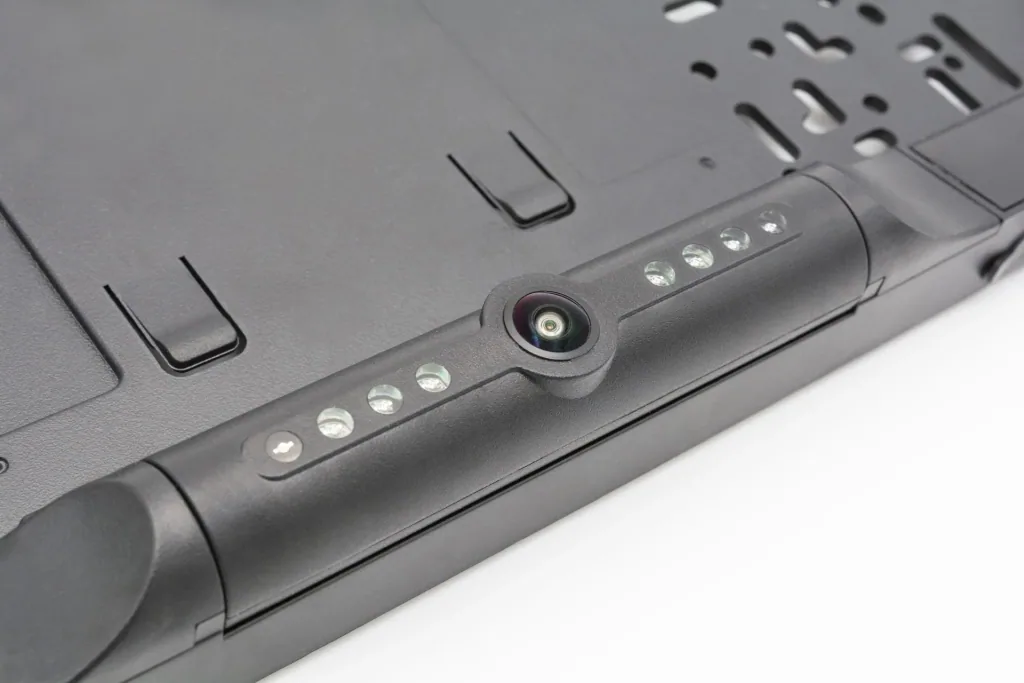

Technical specifications of the license plate holder with camera and radio module:

• Image sensor: 1MP CMOS
• Camera resolution / fps: 640x480 pixels / 30
• Field of view: 135° (V90° / D165°)
• Minimum illumination: 0.5Lux / Automatic white balance
• IR night vision range: ~2m
• Power supply: DC12-24V
• Cable length: Approx. 2.6m
• Transmission frequency: 2400-2485.5MHz
• Transmission distance: ~15m in an open area (no interference)
• Maximum radiated output power: 200mW
• Operating temperature: -10°C up to +60°C

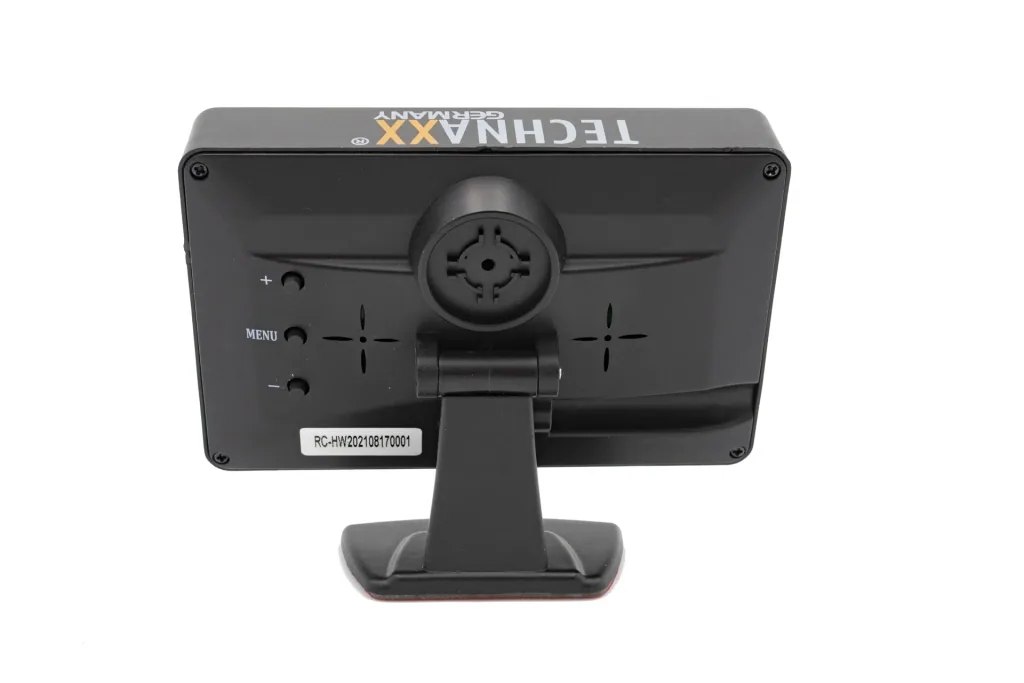

          Monitor:

• Display / Resolution: LCD color 10.9cm (4.3”) / 480x272 pixels
• Transmission frequency: 2400-2485.5MHz
• Input voltage: DC9V/1A / DC5V/2.1A
• Power adapter cable length: Approx. 3.5m
• Operating temperature: -10°C to +50°C

Weight and dimensions:

• Weight of the license plate holder with camera and radio module: 560g
• Dimensions of the license plate holder with camera and radio module: (L) 52.9 x (W) 3.5 x (H) 15.0cm
• Weight of the monitor: 107g
• Dimensions of the monitor: (L) 11.7 x (W) 3.5 x (H) 8.8cm

Scope of delivery

• Wireless rear view camera system TX-170
• 1x license plate holder with camera and radio module
• 1x monitor, 1x suction cup mount
• 1x stand with adhesive
• 1x monitor power adapter for cigarette lighter
• Mounting material
• User manual
