WiFi rear view camera system TX-171
About this item:

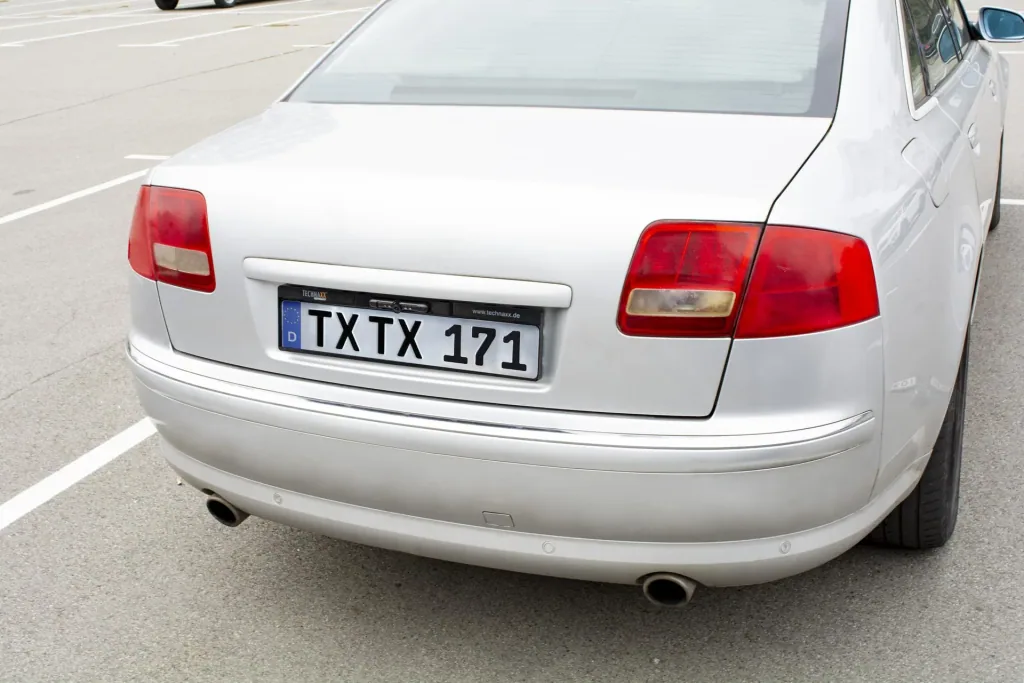

- Discreet reversing camera in the license plate holder
- Wireless video transmission up to ~15m

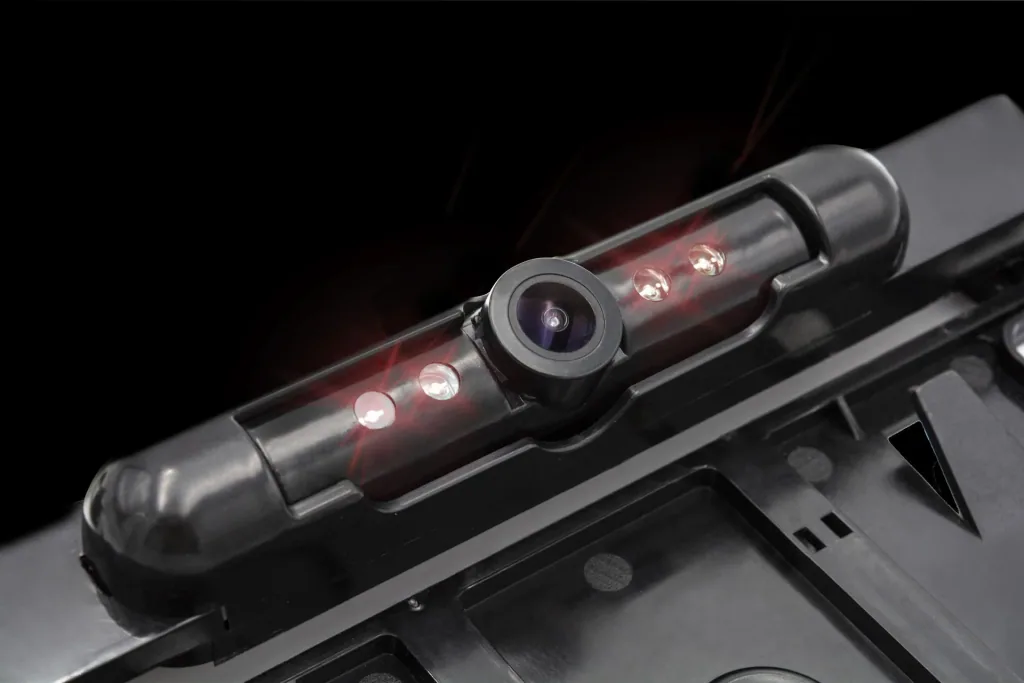

- IR LED for clear night vision up to ~3m
- Adjustable camera orientation and 120° field of view
- Photo and video capture via the app
Guaranteed Secure Checkout
| Item number | WF-600902 |
| Brand | Technaxx |
Reviews
There are no reviews yet — yours could be the first
Share your experience with this purchase and help other customers make the right choice
Questions
There are no questions yet
Ask a question to learn more about the product
0.0
0 reviews
WiFi Rear View Camera System TX-171

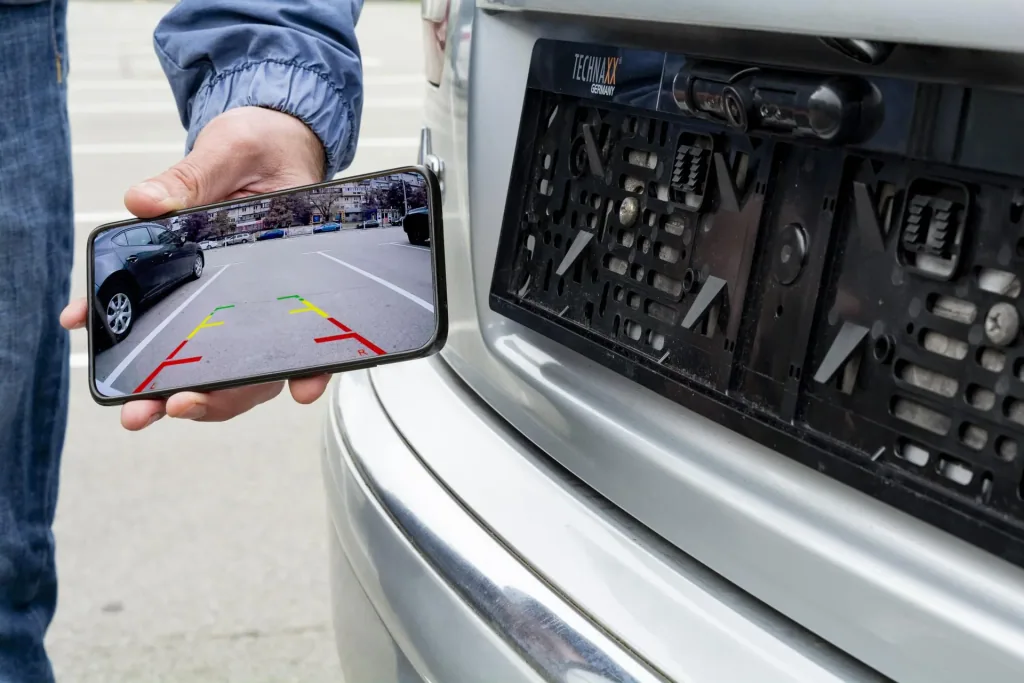

- Unobtrusive rear view camera in the license plate holder
- Suitable for most vehicles as an aid when reversing
- Your smartphone must support IEEE 802.11ac 5GHz
- Video stream via Wi-Fi 5GHz to your smartphone via the app
- Wireless video transmission up to ~15m
- IR LED for clear night vision ~3m
- Adjustable camera orientation and 120° field of view

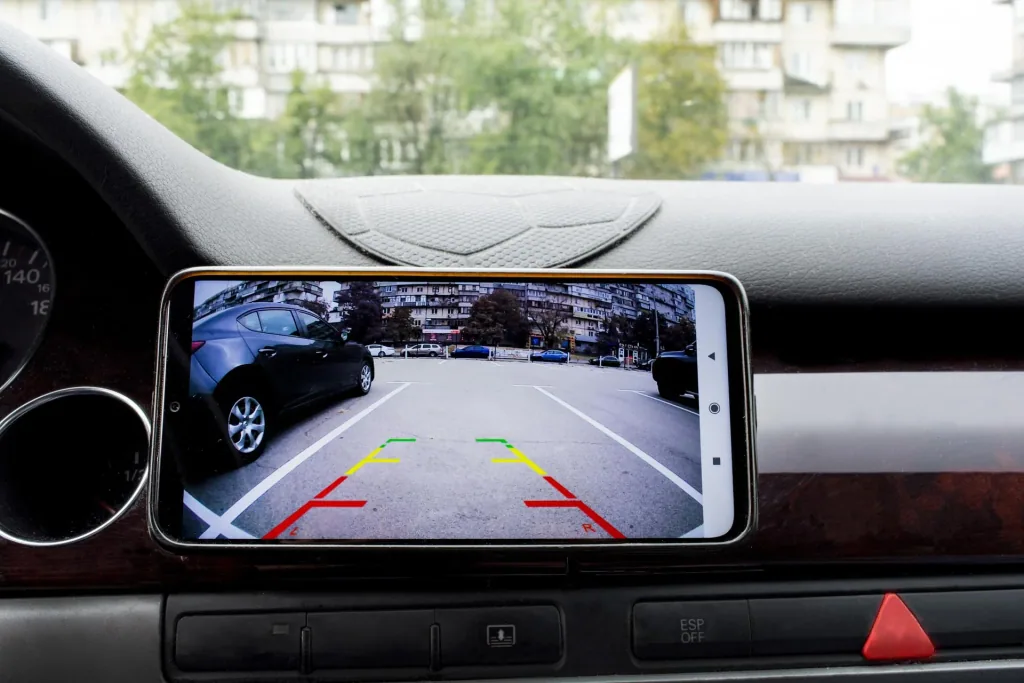

- Distance display via guide lines on the smartphone
- Photo and video recording via the app
Technical Specifications
- Image sensor: 2MP CMOS
- Camera resolution / fps: 1024x720 pixels / 30
- Field of view: 120°
- Minimum illumination: 0.1 Lux / Automatic white balance
- IR night vision range: ~3 m (840 nm)
- Power supply: DC12V
- Cable length: Approx. 4 m
- Transmission frequency: 5 GHz
- Transmission distance: ~15 m in an open area (no interference)
- Maximum radiated output power: 80 mW
- Operating temperature: -20 °C to +50 °C
System requirements
- App name / version: JoyTrip / iOS version 12.0 and higher, and Android version 9.0 and higher
- App language: DE, EN, FR, SP
Weight and Dimensions
- Device weight: 260g
- Device dimensions: (L) 52.8 x (W) 3.7 x (H) 12.6cm
Scope of delivery
- WiFi rear view camera system TX-171
- License plate holder with camera
- WiFi transmitter and connection cable
- Mounting material
- Operating instructions
