Chimney fan for pipes

• The stove fan helps save heating costs by optimally distributing the stove heat throughout the room.
• Works without electricity. There's no need to buy batteries or connect to the power grid.
• Runs quietly and creates a pleasant ambiance and enjoyable peace.
• With space-saving pipe attachment.

In the bitterly cold winter months, a stove not only provides sufficient warmth but also creates a pleasant ambiance. The warm air from the stove is distributed very unevenly depending on the room. Temperatures directly in front of the stove are very high, while it can already be too cool on the couch. The stove fan optimally distributes the heat and thus saves heating costs.

The electricity-free stove fan utilizes the Seebeck effect. As the heat from the stove increases, an electrical voltage is created between two points on an electrical conductor that have different temperatures. This is used to put the stove fan into operation. As power generation begins, the rotor blades are set in motion, effectively distributing the stove's heat throughout the room.

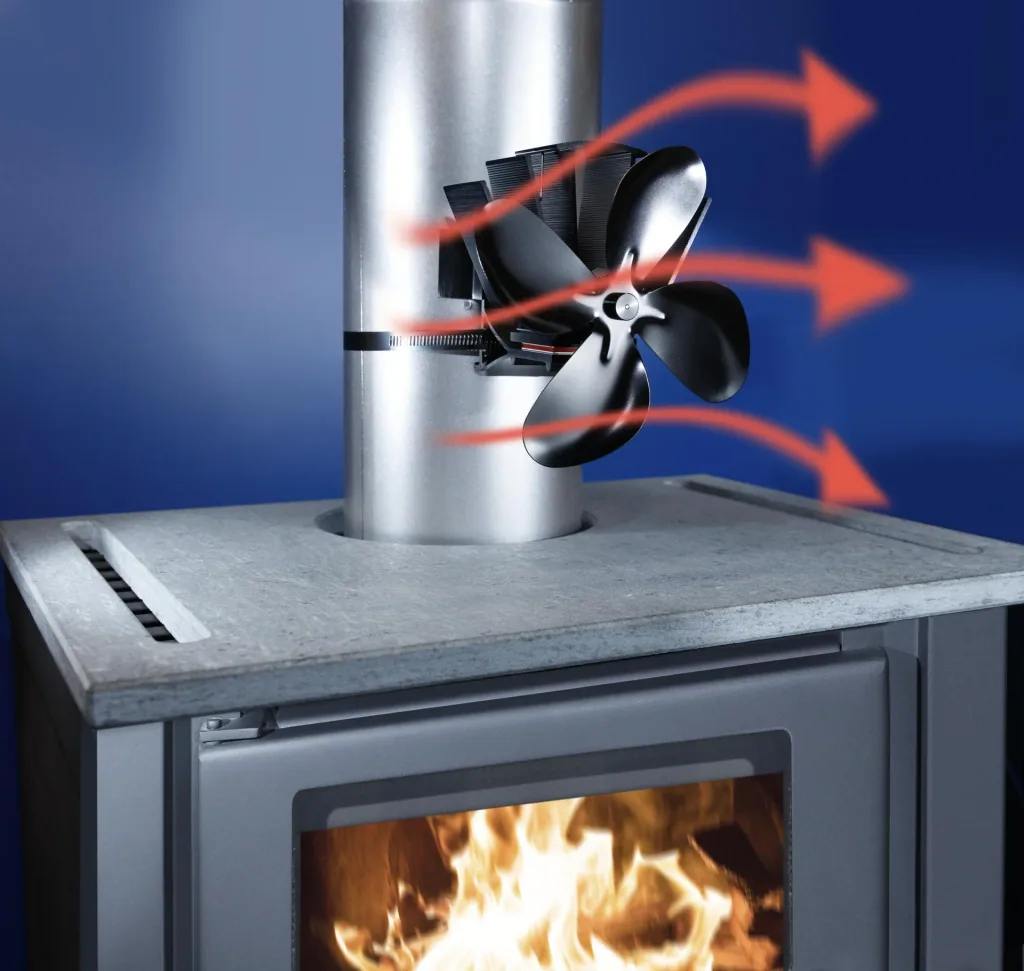

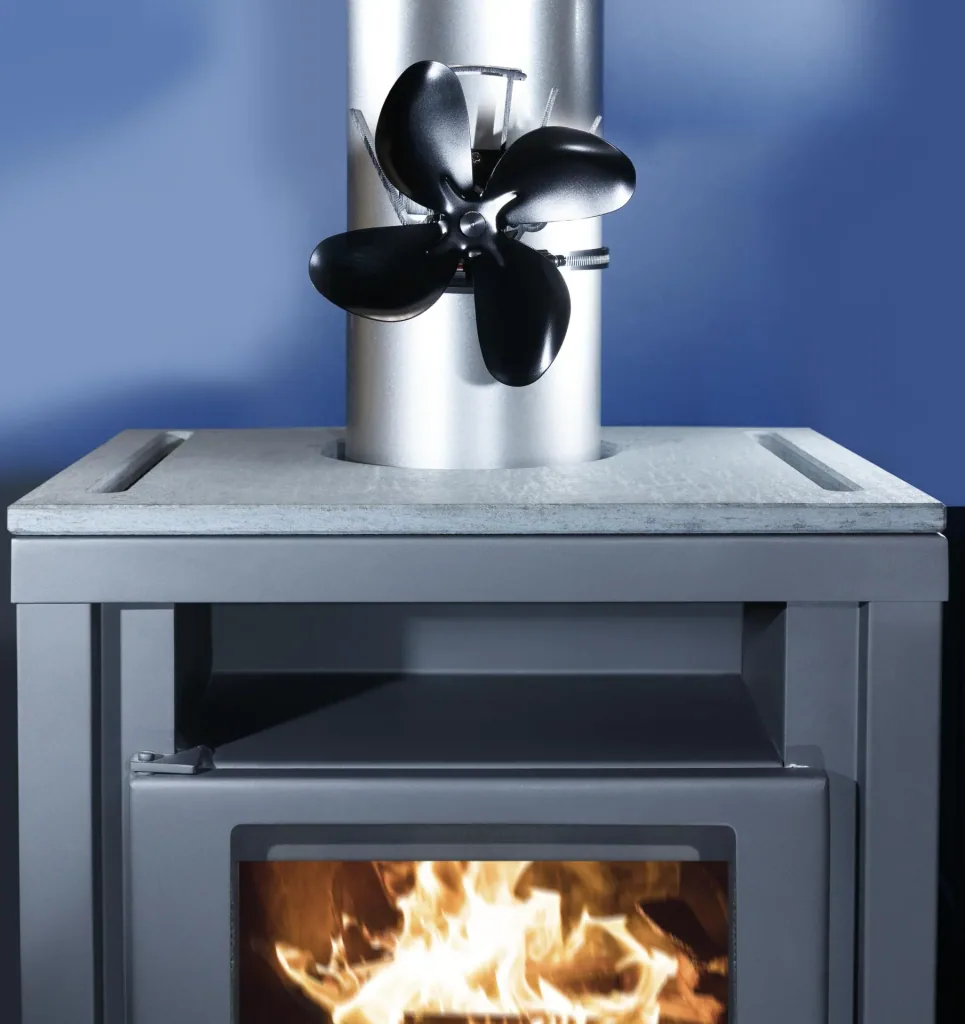

Thanks to the pipe attachment, the stove fan can be optimally positioned without being an eye-catcher. Its size is sufficient to effectively heat a room of 15 to 20 square meters. The device's four rotor blades contribute to the positive heating effect. A solid base for the stove fan is important to ensure all safety aspects.

The robust aluminum construction of the stove fan allows the fan to be used with stove surface temperatures up to 345°C. For safety reasons, the temperature should be checked regularly with a suitable measuring device.

Technical Specifications

• Maximum air flow: 130 cbm/h
• Switch-on temperature: 100 °C

Material: Aluminum, Surface: Anodized

Dimensions: (W x D x H) 161 x 168 x 175 mm

Weight: 625 g

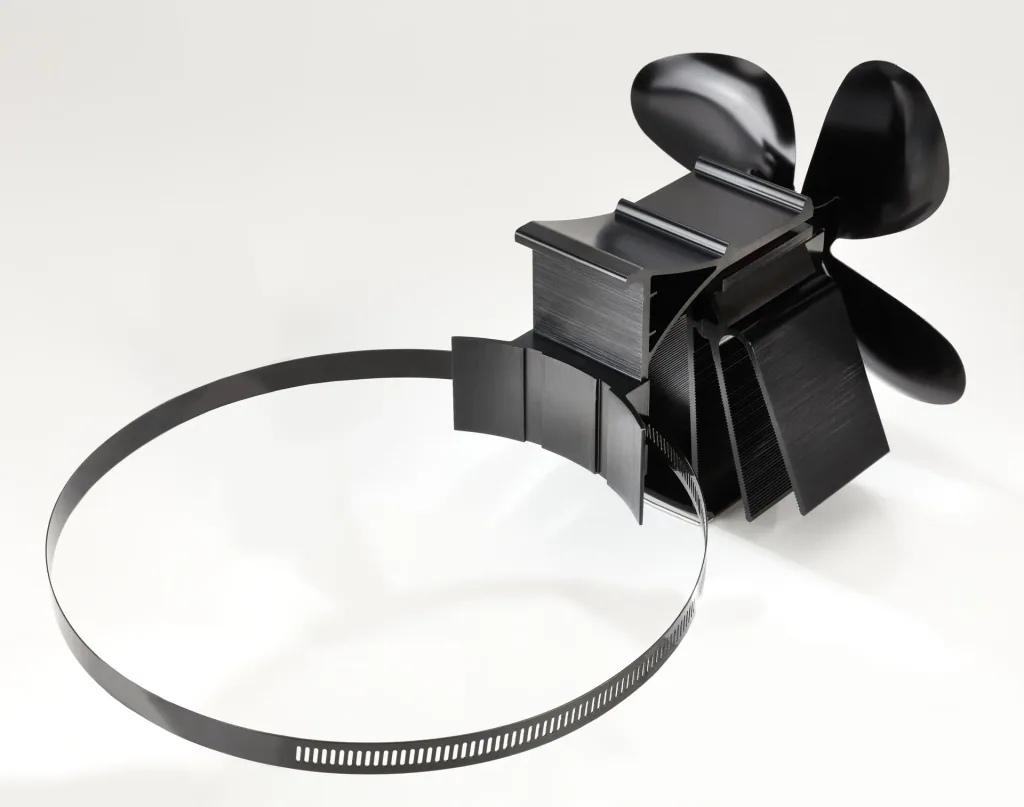

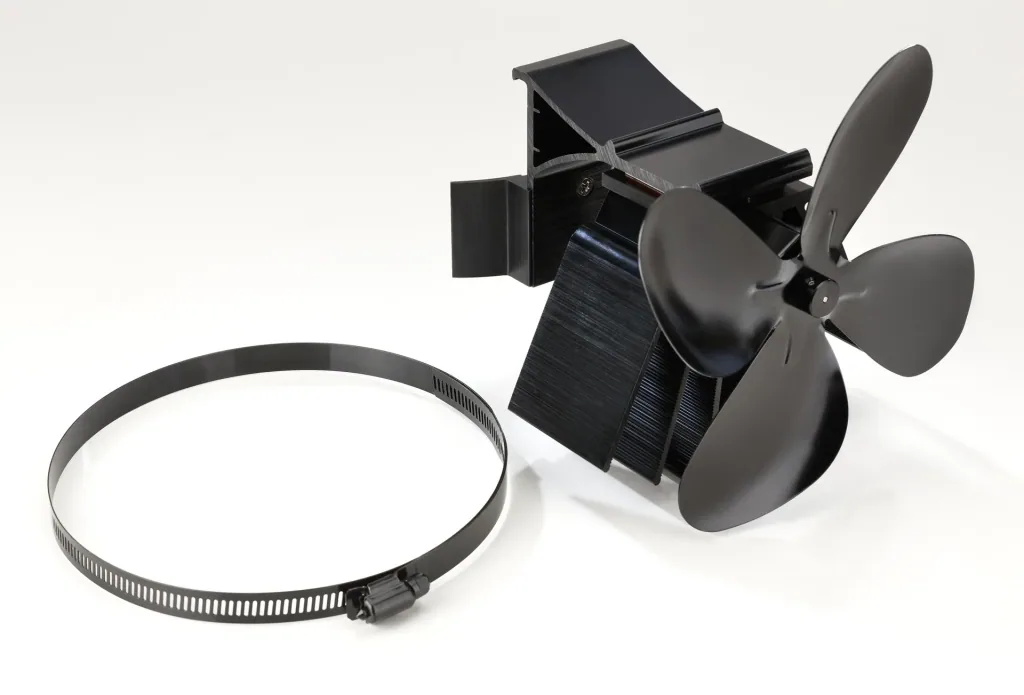

Scope of delivery: 1 x fireplace fan with pipe attachment

Notes:

• Operation should be supervised to prevent children from coming into contact with the fireplace fan. Risk of injury!
• The fireplace fan must not come into contact with open flames.
• Due to the high temperatures, wear protective gloves when transporting the fireplace fan.
